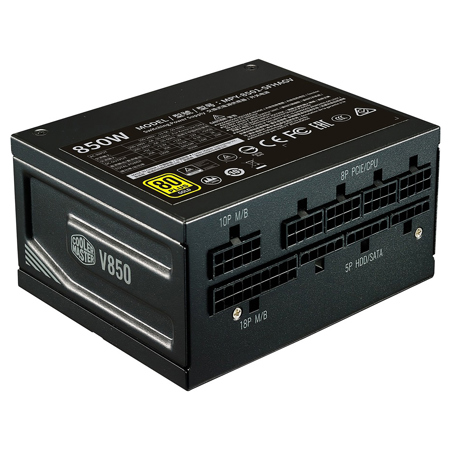

CoolerMaster V850 SFX Gold 80 Plus Full Modular SFX Power Supply

SKU: CMPY851SFHAG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ALLAN W : It's the official Power Supply of Briana White, The Strange Rebel

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CoolerMaster V850 SFX Gold Specifications

  • Series

    V SFX Gold Series

  • ATX Version

    SFX 12V Ver. 3.42

  • PFC

    Active PFC

  • Input Voltage

    100-240V

  • Input Current

    12-6A

  • Input Frequency

    50-60Hz

  • Fan Size

    92mm

  • Fan Bearing

    FDB

  • Efficiency

    90% @ Typical Load

  • 80 PLUS Rating

    80 PLUS Gold

  • ETA Rating

    A

  • LAMBDA Rating

    A

  • ErP 2014 Lot 3

    Yes

  • Operating Temperature

    32-122 Degree F (0-50 Degree C)

  • Power Good Signal

    100 - 500 ms

  • Hold Up Time

    16ms

  • MTBF

    >100,000 Hours

  • Protections

    OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection

  • Regulatory

    TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

  • ATX 24 Pin Connectors

    1

  • EPS 4+4 Pin Connectors

    1

  • EPS 8 Pin Connector

    1

  • SATA Connectors

    8

  • Peripheral 4 Pin Connectors

    4

  • PCI-e 6+2 Pin Connectors

    6

  • 80 Plus

    Gold

  • Modular

    Full Modular

  • Wattage

    Above 750W

  • Dimensions (L x W x H)

    3.93 x 4.92 x 2.5" (100 x 125 x 63.5mm)

  • Weight

    3.968 lbs (1.8kg)

  • UPC Code

    884102071010

About CoolerMaster V850 SFX Gold

Make It Mini
The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.

SFX Form Factor
The V SFX Gold delivers the high quality performance you've come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn't come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that's compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn't. Make it mini. Make It Yours.

80 Plus Gold Efficiency
The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

SFX-to-ATX Bracket
Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU. That makes this product Cooler Master's first power supply unit that can be used to power systems ranging from as small as mini-ITX all the way up to E-ATX motherboards. Cooler Master's motto is "Make It Yours" and with the V SFX Gold's almost universal case compatibility, you can use this PSU to build just about any system you'd like.

Quiet Cooling
Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it's extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.

Full-Modular Cabling
A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That's why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables. Connect only the ones you need for your system to preserve as much room as possible, leading to both improved airflow and better presentation.

PSU Calculator
Need help choosing the right power supply for your system Try out our easy to use, comprehensive PSU calculator.

CoolerMaster V850 SFX Gold Features

  • 80 Plus Gold Efficiency
  • SFX Form Factor
  • SFX-to-ATX Bracket
  • 80 Plus Gold Certified
  • Full-modular Cabling

Key Features

  • 80 Plus Gold Efficiency
  • SFX Form Factor
  • SFX-to-ATX Bracket
  • 80 Plus Gold Certified
  • Full-modular Cabling

What's in the box:

  • CoolerMaster V850 SFX Gold 80 Plus Full Modular SFX Power Supply
  • SFX-to-ATX Bracket
  • Connectors
  • Power Cord
  • 4x Screws
  • Manual
  • CoolerMaster 10 Year Limited Warranty
