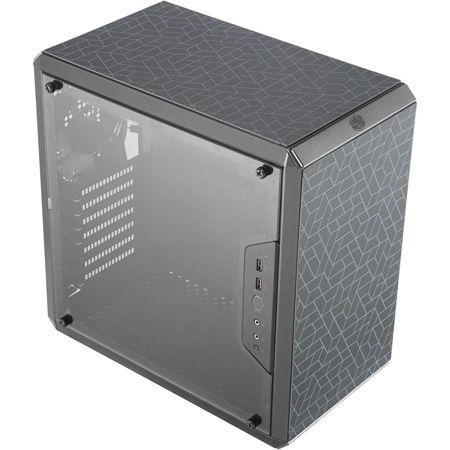

CoolerMaster MasterBox Q500L Specifications

  • Color

    Black

  • Series

    MasterBox Series

  • Material

    Body: Steel, Plastic
    Side Panel: Acrylic

  • Size

    Mid Tower

  • Motherboard Support

    ATX, Micro ATX, Mini ITX

  • Expansion Slots

    7

  • 5.25" Drive Bays

    0

  • 2.5" / 3.5" Drive Bays (Combo)

    2 (each bay supports: 1 HDD or 2 SSDs)

  • 2.5" Drive Bays

    0

  • I/O Panel

    2x USB 3.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack

  • Pre-Installed Fans - Rear

    1x 120mm

  • Fan Support

    Top: 2x 120/140mm
    Rear: 1x 120mm
    Bottom: 2x 120mm

  • Radiator Support

    Top: 120 / 240mm (35mm max motherboard component height)
    Rear: 120mm

  • Clearance

    CPU Cooler: 6.29" (160mm)
    PSU: 7.08" (180mm)
    GFX: 14.17" (360mm) (270mm clearance with PSUs longer than 160mm)

  • Cable Routing

    27-30mm

  • Dust Filters

    Bottom

  • Power Supply Support

    Top Front Mount, ATX PS2

  • Dimensions (L x W x H)

    15.2 x 9.06 x 15" (386 x 230 x 381mm)

  • Weight

    8.4 lbs (3.83kg)

  • UPC Code

    884102053078

About CoolerMaster MasterBox Q500L

Orientation & A Movable I/O Panel
The modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.

Versatile PSU Bracket
The PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.

Fully Perforated Chassis
The top, front, rear, and bottom panels are fully perforated to support various fan configurations.

Magnetic Dust Filters
The magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.

Edge-To-Edge Transparent Side Panel
The side panel displays system builds in full view.

Cooling Support
• The bottom supports up to two 120mm fans
• The rear supports a 120mm fan or 120mm radiator
• The top supports up to two 120mm/140mm fans or a 120/240mm radiator

Storage Support
Each storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two caddies included.

Possible Configurations:
• 4x 2.5" drives
• 2x 3.5" drives
• 2x 2.5" drives + 1x 3.5" drive

Motherboard Support
The internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.

Clean Routing Space
Behind the motherboard tray, 27-30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.

CoolerMaster MasterBox Q500L Features

  • Highly Compact Standard ATX
  • Orientation & A Movable I/O Panel
  • Versatile PSU Bracket
  • Fully Perforated Chassis
  • Magnetic Dust Filters
  • Edge-to-Edge Transparent Side Panel
  • Clean Routing Space

Key Features

  • Highly Compact Standard ATX
  • Orientation & A Movable I/O Panel
  • Versatile PSU Bracket
  • Fully Perforated Chassis
  • Magnetic Dust Filters
  • Edge-to-Edge Transparent Side Panel

What's in the box:

  • CoolerMaster MasterBox Q500L Mid-Tower Case (Black)
  • CoolerMaster 2 Year Limited Warranty
