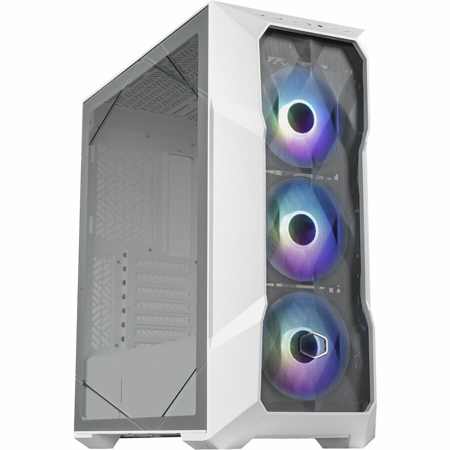

CoolerMaster MasterBox TD500 Mesh V2 ARGB Tempered Glass E-ATX Mid-Tower Case, White

SKU: CMTD500V2WGN MFR: TD500V2-WGNN-S00
$109.99
Earn VIP Reward Points

Key Features

  • Optimize your build with superior cooling support, thanks to ample fan and radiator mounting options.
  • Enjoy broad size compatibility, fitting E-ATX motherboards and large GPUs for diverse system configurations.
  • Achieve a clean, professional look with smart cable management, ensuring tidy internal routing.
  • Showcase your components through the elegant tempered glass side panel, enhancing your PC's aesthetic design.
  • Rely on durable construction, providing long-lasting protection for your valuable computer components.
  • Experience convenient connectivity with easy-access front I/O ports, including USB 3.2 Gen 2 Type-C.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CoolerMaster MasterBox TD500 Mesh V2 Specifications

  • Color

    White

  • Material

    Exterior: Steel, Mesh, Plastic
    Left Side Panel: Tempered Glass

  • Size

    Mid Tower

  • Series

    MasterBox Series

  • Motherboard Support

    Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX (up to 12" x 10.7" motherboards, may impact cable management feature)

  • Expansion Slots

    7

  • 3.5" Drive Bays

    2

  • 2.5" Drive Bays

    3

  • I/O Panel

    USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C
    Audio In / Out: 1x Audio Jack
    Other: 1x ARGB Fan Hub

  • Pre-installed Fans

    Front: 3x 120mm CF120 ARGB

  • Fan Support

    Top: 3x 120mm, 2x 140mm
    Front: 3x 120mm, 2x 140mm
    Rear: 1x 120mm

  • Radiator Support

    Top: 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
    Front: 120 / 140 / 240 / 280 / 360mm
    Rear: 120mm

  • Clearance - CPU Cooler

    165mm

  • Clearance - PSU

    200mm (Recommended up to 170mm)

  • Clearance - GFX

    410mm

  • Cable Routing

    Behind Motherboard Tray: 0.74" (19mm)

  • Dust Filters

    Front, Top, Bottom

  • Power Supply Support

    Bottom Mount, ATX

  • Back Connector Motherboard Support

    No

  • Dimensions (L x W x H)

    19.6 x 8.2 x 19.6" (499 x 210 x 500mm) (incl. Protrusions)
    16.9 x 8.2 x 18.7" (430 x 210 x 477mm) (excl. Protrusions)

  • UPC Code

    884102107672

About CoolerMaster MasterBox TD500 Mesh V2

MasterBox TD500 Mesh V2
MasterBox TD500 Mesh V2's iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

Design
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

Fans
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

Ports & Slots - USB 3.2 GEN 2 Type C Support
USB 3.2 Gen 2 Type C port built into the 1/0 panel allows multi-purpose, streamlined data transmission.

Removable top panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

Motherboard - Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.

E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".

Customization - Versatile cooling options
Support for up to seven 120mm fans and 60mm front and top radiator support ensure that performance is not compromised.

Tool-free crystalline TG side panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

PSU Shroud with removable cover
MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

CoolerMaster MasterBox TD500 Mesh V2 Features

  • Polygonal Mesh - Crafted from Cooler Master's Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and is also capable of simultaneously providing high airflow and dust filtration
  • Triple ARGB Fans - Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system
  • USB 3.2 Gen 2 Type C Support - USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission
  • Versatile Cooling Options - Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised
  • Tool-Free Crystalline TG Side Panel - A crystalline design spans the edges of the tempered glass side panel, completely toolless for quick access to the internals. An optional screw can be installed to further secure the tempered glass side panel
  • PSU Shroud With Removable Cover- TD500 Mesh V2's removable PSU cover allows users to freely showcase unique PSU designs or keep PSUs hidden for a stealthier aesthetic. When not in use, the PSU cover can be stored on the motherboard tray for easy safekeeping
  • Removable Top Panel - The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Optimize your build with superior cooling support, thanks to ample fan and radiator mounting options.
  • Enjoy broad size compatibility, fitting E-ATX motherboards and large GPUs for diverse system configurations.
  • Achieve a clean, professional look with smart cable management, ensuring tidy internal routing.
  • Showcase your components through the elegant tempered glass side panel, enhancing your PC's aesthetic design.
  • Rely on durable construction, providing long-lasting protection for your valuable computer components.
  • Experience convenient connectivity with easy-access front I/O ports, including USB 3.2 Gen 2 Type-C.

What's in the box:

  • CoolerMaster MasterBox TD500 Mesh V2 ARGB E-ATX Mid-Tower Case (White)
  • ARGB Controller
  • ARGB Fan Hub
  • Mounting Hardware
  • CoolerMaster 2 Year Limited Warranty
