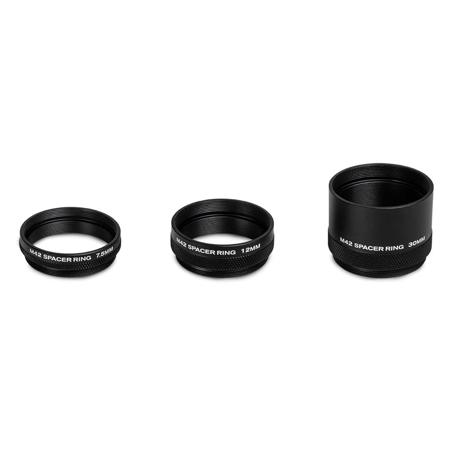

Celestron M42 Spacer Ring Kit
SKU: CNM42S MFR: 93618
$47.95
$62.95
Save: $15 (24%)Key Features
- Fine-tune your astrophotography with this Celestron M42 spacer ring kit for perfect focus.
- Achieve optimal back focus using these M42 spacers, essential for crisp astro images.
- Includes three sizes (7.5mm, 12mm, 30mm) for versatile spacing with your telescope.
- Maximize your telescope's performance with precise adjustments using these spacer rings.
- Perfect for astrophotography, these rings help you get the best image quality possible.
- Enhance your optical setup by using these rings to reach the ideal focal point.
Calculate Shipping
See Options
2-Day Shipping - FREE on Orders over 49.99
Qty
1
Need help? Ask our experts.
Overview
Compare
Q&A
About Celestron M42 Spacer Ring Kit
FEATURED REVIEWS
Celestron m42 spacer ring kit
Item was exactly as pictured, pieces screw together smoothly. Adorama was excellent about updates on the backorder status, and shipped immediately once they recieved stock.
Astrophotography
Having extra connectors is a must, especially if you use different cameras and mounts for astrophotography. It makes it easier to set up different configurations without having to take apart one connection and reconfiguring it on another rig.
Overcome the challenges of astrophotography with the M42 Spacer Ring Kit, expertly designed to help you achieve the optimal back-focus distance for your camera in relation to your telescope. This kit is essential for capturing the best astroimages, as an incorrect back-focus distance can lead to compromised performance at the corners of full-frame imaging sensors, resulting in elongated stars instead of precise pinpoints.
For instance, when using a RASA 8 with a ZWO ASI 183 MC PRO camera, the required back-focus distance with the included M42 camera adapter is 25mm. However, the ZWO ASI 183 MC PRO camera consumes a back-focus of 17.5mm. To equalize this back-focus distance, a 7.5mm M42 spacer ring from our kit is required.
The M42 Spacer Ring Kit includes three differently sized spacer rings, allowing you to achieve the correct back-focus distance with various popular Celestron optical tubes and T-thread camera adapters.
Using the M42 Spacer Ring is straightforward. If you're using a DSLR, simply place the appropriate M42 Spacer Ring between your T-Ring and your T-Adapter for your optical tube. For CCD or CMOS camera users, place the desired M42 Spacer Ring between the camera and the T-Adapter for your optical tube.
Each M42 Spacer Ring is crafted from machined aluminum and is black anodized. The internal surfaces are blackened and glare-threaded to provide the highest contrast. The spacer rings feature a knurled surface, ensuring a secure grip for easy threading and unthreading. These rings are compatible with M42 x 0.75 (T-thread) camera adapters.
To assist you in choosing the correct spacer ring, here's a quick guide for our EdgeHD, Schmidt-Cassegrain, and RASA 8 optical tubes:
- The 7.5mm ring provides proper spacing with RASA 8 for many ZWO cameras.
- The 12mm ring offers correct spacing with RASA 8 for numerous Atik cameras.
- The 30mm ring converts ZWO camera with a filter slider to a 55mm back-focus standard for use with Schmidt-Cassegrain & EdgeHD.
With the M42 Spacer Ring Kit, you can enhance your astrophotography experience, ensuring high-quality, precise images every time.
Celestron M42 Spacer Ring Kit Features
- Adjusts back-focus between your camera and telescope for the best astroimaging results
- Threads to your T-Ring and T-Adapter with standard male and female T-Threads
- Kit includes 3 spacer rings of different lengths (7.5mm, 12mm, 30mm)
Warranty Information
This product has a limited warranty of 24 months for parts and 24 months for labor.
