Celestron FlipView Handheld LCD Portable Microscope

SKU: CNMSFV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

JOHN S : does this come with accessories? Besides cables I've seen a little stand you can put it on
Shopper : Why Did You Choose This?JOHN S : Good review from The Bug Chicks plus recommended by another store plus you had the lowest price of about 6 I looked at plus I was helped by Steve C on phone to assure me it was as suggested.PATRICK A : I intend on using this item to take detailed photo images of fine art prints, maps and for work on fossils. It's really not a microscope so much as a very good lens for close up photo and video.

Reviews about this item

Review Summary

2023-07-25T08:38:02

Rated 4 out of 5

My opinion of Celestron FlipView Handheld LCD Portable Microscope

It's portable it's lightweight and I believe it works very well I didn't give it five stars I haven't used it is much as I would like to before I give it five stars it works really well I have enjoyed it I've used it for a lot of different things including some of the circuitry boards I work on. I haven't taken any pictures of using it yet. But I do recommend it has worked out really well for myself and my daughter.

JEFFREY J.

2021-02-10T05:22:30

Rated 3 out of 5

Choose what you want to view

I love the design of this item. It's portable and has a variable light source. Although I enjoyed a review by The Bug Chicks. It didn't work for me. I wanted to photograph insects but the depth of field was very tiny. I did get some good shots of things that were flat.

John S.

2019-11-02T11:23:13

Rated 3 out of 5

good but lacks features

Flipview is fun but more of a toy, I accidentally broke the moveable foot and the viewer won’t really work without that foot so I had to jerry rig it back with a screw. It wasn’t hard to brake off so be careful. Also, it zooms in and out when you have it unhooked from your computer, but odd as this sounds, when you connect the Flipview directly to your computer via USB the zoom function no longer works? This is very frustrating! It’s seems to be best for portable and field work.

PATRICK A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Celestron FlipView Microscope Specifications

  • Imaging Sensor

    5MP CMOS 1/4" array

  • Magnification Range

    10x-300x (1200x with 4x digital zoom)

  • LCD screen

    3.0" Full color TRF screen (hinges in both X (90½) and Y (270') axis)

  • Lens

    5 element IR Cut (Infrared reducing) high quality glass lens, EFL (Effective Focal Length) : 15.8mm, image distortion: 0.10%, FOV: 13.0½

  • Focuser Range

    Manual focus from 10mm to infinity

  • Illumination

    8 adjustable white LEDs in ring configuration

  • Shutter trigger

    On housing (and through software interface when using through PC option)

  • Flicker Control

    50Hz/60Hz

  • Still Image Resolution

    5MP, 3MP, 1.3MP, VGA (12MP interpolation)

  • Video Capture Resolution

    VGA, 30fps

  • Video Output

    AV Out (cable included)

  • PC connection Interface

    2.0 USB

  • OS systems supported

    Windows: XP/Vista/7/8 - Mac:OSX 10.6 10.9

  • Memory

    Micro USB card slot (supports up to 32G)

  • Power

    -Internal Rechargeable Lithium Ion Battery (1050 mAh) -AC Adapter Universal Input 100 to 240 Volt 50/60HZ (US Version only)

  • Measuring Software

    Measuring software through Celestron, Micro Capture Pro- with note taking capabilities. Calibration tool included.

  • Software languages supported

    English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese

  • Microscope Dimensions

    4.625" x 2.50" x 4.25" (117.5mm x 63.5mm x 108mm)

  • Stand Dimensions

    3.0" x 1.75" x 2.75" (76.2mm x 44.5mm x 70mm)

  • Microscope Weight

    7.4 Oz / 212g

  • Microscope and Stand Weight

    11.2 oz./ 317g

  • UPC Code

    050234443142

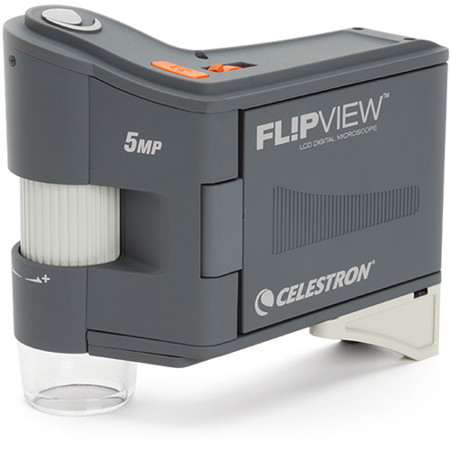

About Celestron FlipView Microscope

This compact yet powerful digital microscope is the perfect companion for up-close observation on the go. The onboard 3-inch, full color TFT LCD screen flips out when you need it, then folds back into the microscope body for portability. A rechargeable lithium ion battery provides hours of viewing time in the classroom or on a nature walk. FlipView, with its 10x to 120x magnification is a low-power microscope perfectly designed for viewing an array of 3D specimens, from beach sand to bugs, coins and currency, documents, circuit boards, and more.

CAPTURE PHOTOS AND VIDEO
With its built-in 5 MP sensor, FlipView offers the best resolution you'll find on a Celestron digital microscope. Combine that with the 5-element IR cut lens, and you'll achieve sharp images and video of your specimens. A ring of 8 adjustable LEDs provides the perfect illumination for your shot.

Insert any Micro SD card (up to 32 GB) to save images and videos, or plug the microscope into your computer via the included USB cable and capture images using Celestron's Portable Capture Pro software. Or stream the view from FlipView to a television or projector with the included video out cable.

3 WAYS TO OBSERVE
With one of Celestron's most versatile designs, FlipView can be used in three configurations depending on the specimen you're viewing: • Use it in handheld mode for quick and easy observations. • Flip out the attached leg and FlipView sits on any flat surface. Perfect for viewing flat objects like stamps, currency, and more. • For longer observing sessions of 3D objects, mount FlipView to the included metal stand via the 1/4-20 connector. The stand features two articulation points and can be adjusted to point it precisely at your subject.

Celestron FlipView Microscope Features

  • Handheld digital microscope with integrated 3-inch full color TFT LCD screen that flips out and rotates 270 degrees
  • Versatile ergonomic design can be used three ways: handheld, on a flat surface with flip out leg, or with the included metal stand and 1/4-20 connection
  • 5 MP sensor and 5-element IR cut lens configuration captures high definition images and video
  • 10x to 120x magnification (up to 300x on PC)
  • Rechargeable lithium ion battery

Key Features

  • 10x to 120x magnification (up to 300x on PC)
  • Rechargeable lithium ion battery

What's in the box:

  • FlipView LCD Hand held 5MP microscope
  • Articulating Metal stand
  • lens/screen Cleaning cloth
  • USB cable
  • Mini USB cable
  • AV Out cable -CD with Celestron Micro Capture Pro software
  • Draw string carry bag
  • AC Adapter plug
  • quick setup guide
