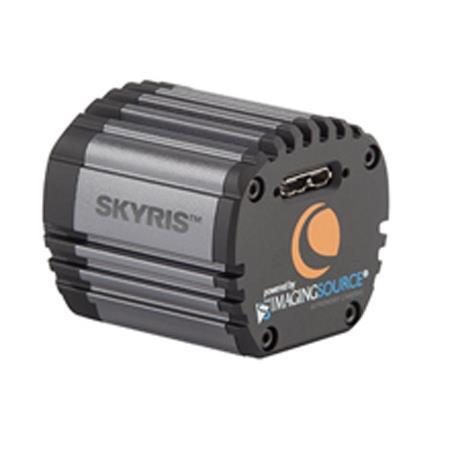

Celestron Skyris 236M Astronomical Monochrome Color CMOS Camera #95507

SKU: CNSR236M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHARLES B : Looking for a better color imager for my scope.

Reviews about this item

Review Summary

2020-07-17T13:03:42

Rated 4 out of 5

Skyris236m

If you're looking for a good Monochrome camera this is a good one.

David P.

2018-10-10T15:18:13

Rated 5 out of 5

Great Astro Camera

Easy to set up and use. Photos were great. Worked with all of the software that I have. Fast data transfer using USB 3.0. Great detail on planetary images with the fast 2.3 megapixel sensor.

Howard P.

Celestron Skyris 236C Specifications

  • Imaging Sensor

    Sony IMX236LQJ CMOS (Monochrome)

  • Weight

    3.6 oz

  • A/D Conversion

    12 bit

  • Back Focus Distance

    19mm with nosepiece, 17.5mm with C-mount

  • Exposure Range

    0.0001 to 10 second

  • Mounting

    1.25" barrel and C-thread

  • Operating Environment

    40½ C to -40½C (104F to -40F)

  • Shutter

    Rolling

  • Software Compatibility

    iCap, IC Capture, DirectShow, oaCapture

  • Sub Framing

    Selectable

  • Power Requirements

    Powered by USB

  • Camera Resolution

    1920 x 1200

  • Sensor Size

    5.44mm x 3.42mm

  • Pixel Size

    2.8 micron square

  • Frames per Second

    Over 200 (60fps at full frame)

  • USB Connection

    Super-speed 3.0, 10' cable length

  • Optical Window

    None

  • Optical Coatings

    Anti-Reflection multi-coatings on cover glass

  • Binning

    2x2

  • USB Cable

    High-speed 3.0, 10' cable length

  • UPC Code

    050234955072

About Celestron Skyris 236C

FEATURED REVIEWS

Great Astro Camera

By Howard P.

Easy to set up and use. Photos were great. Worked with all of the software that I have. Fast data transfer using USB 3.0. Great detail on planetary images with the fast 2.3 megapixel sensor.

ULTRA-SENSITIVE SONY EXMOR IMX236LQJ CMOS SENSOR
CMOS technology is emerging as the hottest thing in imaging, and SONY'S EXMOR IMX236 sensor leads the way. Twice as sensitive in the near-infrared as the IMX136, the IMX236 offers the perfect combination of speed, sensitivity, and value. You'll get results that rival those of more expensive cameras, at a price that's well suited to the budding astroimager. The IMX236's small pixel size of just 2.8 microns delivers more resolution and requires less focal length than cameras with larger pixels - a big advantage for planetary imaging. Small to medium telescopes can achieve a bigger image scale without compromising sensitivity.

NOW MAC OS X COMPATIBLE! FIND THE SOFTWARE DOWNLOADS ON THE CELESTRON WEB SITE
CELESTRON PARTNERS WITH THE IMAGING SOURCE
For years, The Imaging Source has produced astronomical cameras known for quality, performance, and value, elevating planetary imaging from a casual hobby into an art form. Now, The Imaging Source design team in Germany has joined forces with Celestron's engineers in California to create the Skyris line.

Skyris combines the unmatched expertise of The Imaging Source, with Celestron's innovative industrial design. And of course, it's backed by Celestron's world-class product support and 2-year warranty. Whether you're an advanced user or a beginner, you'll love creating beautiful astroimages with these easy-to-use cameras. Capture the Sun, Moon, and planets like never before and create crisp, high-resolution images.

MORE DATA, FASTER WITH USB 3.0 AND LIGHTNING-FAST READOUT
Skyris is capable of super-fast image download thanks to USB 3.0 connections. Even more impressive, Skyris' CMOS sensor is capable of capturing up to 200 frames per second when subframed on planets. Or image the full 1.2 megapixel 1/3-inch sensor at 60 frames per second great for lunar and solar imaging.

Skyris 236C is a one-shot color camera, allowing you to capture full-color images instantly. There's no need to image the same target multiple times to capture different colors. You also won't need to invest in filters and a filter wheel.

Skyris also features a Celestron-designed camera body, which helps dissipate heat to minimize the effect of thermal noise on the CCD. Skyris cameras do not have an optical window, which makes cleaning your camera easier and ensures maximum light transmission with no risk of internal reflections.

A COMPLETE IMAGING SOLUTION JUST ADD YOUR TELESCOPE AND PC!
All Skyris cameras include Celestron iCap capture software and stacking software (for Windows systems only). This software suite allows you to easily control the camera, capture, and export your images or movie files. Next, you'll filter your images and stack the best shots to create your masterpiece.

With a 1.25" nosepiece and 10' USB 3.0 cable included, Skyris has everything you need to get started with lunar, solar, or planetary imaging.

USING SKYRIS AS AN AUTOGUIDER
Skyris cameras also make excellent autoguiders. If used with a Celestron mount, Skyris connects as a DirectShow device or WDM-style webcam. Just plug the hand control into the supplied serial cable using an optional USB to RS-232 Adapter. Skyris works with popular software like MaxIm DL or freeware like PHD Guiding. Skyris can also be used as an autoguider. For more details, please check the article in our Support tab.

Celestron Skyris 236C Features

  • Designed and engineered in Germany by The Imaging Source, the leader in high-end planetary imaging, in collaboration with Celestron engineers in California.
  • Uses the latest Sony Exmor CMOS technology which is very sensitive to near infrared, which is beneficial for planetary imaging.
  • Powered by SuperSpeed USB 3.0 technology, Skyris transfers data at the fastestpossible speeds. No external power necessary.
  • The Skyris 236 is the best planetary imaging camera on the market. The world'stop planetary imagers, including Christopher Go, beta-tested and use Skyris cameras.

Key Features

  • The Skyris 236 is the best planetary imaging camera on the market
  • Designed and engineered in Germany by The Imaging Source
  • Uses the latest Sony Exmor CMOS Technology
  • Powered by SuperSpeed USB 3.0 Technology

What's in the box:

  • Skyris 236 camera body
  • 1.25 " nosepiece
  • software CD
  • USB cable
  • instruction manual
  • 2-Year Warranty
