8-Channels
100-240 VAC 50-60 Hz, 15 Watts
OLED
M586 (573-599 MHz)
Support up to six pairs per system
Attach up to 32 channels to one pair of antennas
Phoenix terminal blocks
100Ohms
Balanced 1/4" TRS mixed line out for recorders or powered speakers; or headphone out
USB, RS232 & Ethernet (dual port 10/100 Mbps)
Eight (8) digital outputs at 48 KHz
Primary & secondary, RJ45 ports, 100/1000 Mbps, 328'
22 programmable pins
-20dB to +31 dB
19 x 1.75 x 6.5" (48.26 x 4.45 x 16.51cm), 1-U rack-mount
4.7 lbs (2.13kg)

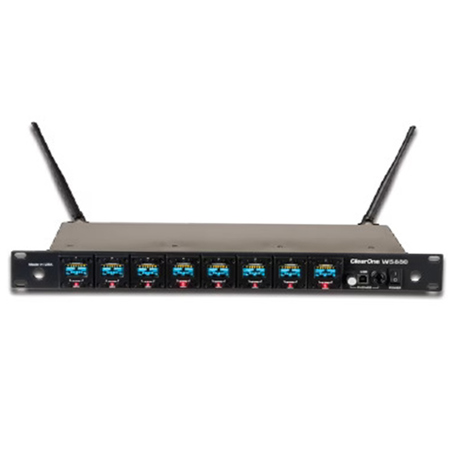

The Wireless Receiver unit shall act as a base station to receive wireless audio from the transmitter microphones. It shall have 4 & 8 channels of receive modules with OLED displays to display the channel related details. It shall have 4 & 8 output channels with Euroblock type connector. There shall be an external adapter available to make it as XLR type output connector as needed. The Receiver shall have built-in dipole antennas with a removable option to extend the distance by up to 300 feet from the Receiver using 15dB active gain remote phantom powered antennas.
The Receiver shall have an option to mount the dipole antennas on the front rack ears. The Receiver shall have built in antenna distribution with a daisy chain output for connecting up to four 8 channels receivers for a total of 32 channels simultaneous. The receiver shall have a 1/4" TRS audio port for headphone/mixed audio output with an analog volume pot. It shall have a DB25 GPIO port with a Gnd and 24 assignable I/O ports with a switchable RS232 option. The receiver shall have a USB port and daisy chainable Ethernet connectivity for remote control and firmware updates.
The receiver shall have an option for a Dante digital audio port. The Receiver shall be powered through either a fusible 100 to 240VAC (50 to 60Hz) IEC AC input or a 4pin 5.6Vdc external wall adapter. The power inputs AC and DC shall be redundant so as if one source is removed the other source takes over. It shall consume less than 20 Watts power. The Receiver unit shall be mountable in a standard 19" Rack.
There shall be an audio redundant mode where the audio from slot 2 shall be able to pass through slot 1 uninterrupted when two transmitters are used for one presenter. The audio redundancy feature shall be available per every 2 receiver module slots. The receiver unit shall be able to load and store presets. The receiver unit shall have a dimmable OLED display with options to stay bright or dim after pairing process. The receiver shall have a status LED for displaying the transmitter state (on/off/mute).
The receiver shall have an IR transmitter for sending over settings information from the wireless receiver. The receiver shall have a tour mode feature where the same audio encryption key can be programmed into multiple receiver channels to allow one transmitter to communicate with multiple receivers. The receiver shall have an email alert system to notify a low battery state of a transmitter unit. The Receiver shall have the ability to be used in up to 6 rooms via a remote extension antenna combiner system.
