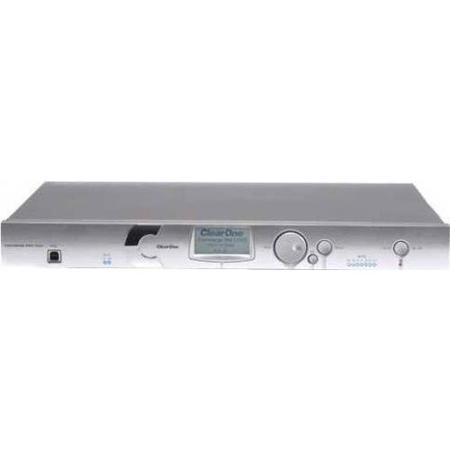

ClearOne CONVERGE Pro TH20 Professional Conferencing Telephone Interface with Noise Cancellation for CONVERGE Pro Mixer, DSP with 2 Line Inputs, 2 Line Outputs

SKU: CO910151820 MFR: 910-151-820
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with professional noise cancellation for distraction-free calls.
  • Easily integrates with CONVERGE Pro mixers and DSPs for seamless audio conferencing setups.
  • Enjoy wide frequency response ensuring natural voice quality for clear communication during meetings.
  • Eliminate echo with telco line echo cancellation, creating a smooth, professional conference call.
  • Connect various devices using balanced line inputs/outputs for versatile audio configurations.
  • Manage your audio setup via Ethernet with Quality of Connection (QoC) for stable performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Pro TH20 Specifications

  • Compatibility

    CONVERGE/CONVERGE Pro Mixer

  • Telephone Audio Performance

    Conditions: Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled
    Frequency Response: 250Hz to 3.3 kHz +/-1dB
    THD+N: <0.3% re-max level 250 Hz to 3.3 kHz
    SNR: > 62 dB re-max level

  • Telephone Noise Cancellation

    Noise Cancellation 6-15 dB attenuation

  • Telco Line Echo Cancellation

    Tail Time: 31 ms
    Null: 55 dB nominal

  • Telco Line

    RJ-11
    POTS (plain old telephone service) or analog extension from a PBX)
    A-lead supervision provided

  • Telco Set

    RJ-11
    POTS (plain old telephone service) or analog extension from a PBX
    A-lead supervision provided

  • Audio Performance

    Conditions: Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz BW limit (no weighting)
    Frequency Response: 20 Hz to 22 kHz +/-1dB Rs=150Ohms
    THD+N: <0.02%
    Dynamic Range: 100 dB (non Aweighted)
    Crosstalk <-91 dB re 20 dBu at 20 kHz channel to channel

  • Line Inputs 1, 2

    Push-on mini-terminal block, balanced, bridging
    Impedance: < 10 Kohms
    Nominal Level: 0 dBu
    Maximum Level: 20 dBu

  • Line Outputs 1,2

    Push-on mini-terminal block, balanced
    Impedance: < 50Ohms
    Nominal Level: 0 dBu
    Maximum Level: 20 dBu

  • Expansion Bus In/Out

    Proprietary Network
    RJ-45 (2), 1.9 Mbps, 110 KOhms
    Impedance
    Category 5 twisted-pair cable, 200' maximum cable length between any two Converge Pro devices

  • Ethernet

    Autoswitching with Quality of Connection (QoC)
    10/100 Mbps Ethernet Network Port
    10/100 Mbps Ethernet PC Port
    RJ-45 Connectors

  • RS-232

    Serial Command Protocol Only (Console software not supported on RS- 232 port)
    DB-9 female
    9,600/19,200/38,400/57,600/115,200 baud rate; 8 bits, 1 stop bit, no parity
    Hardware flow control on (default)/off

  • USB

    Version 2.0 compatible
    Type: B-connector

  • Control/Status Ports

    DB-25 female A/B (2)
    Inputs A/B: active low (pull to ground)
    Outputs A/B: open collector, 40 VDC max, 40 mA each
    +3.3 VDC pins (2) (300 mA overcurrent protected)

  • Configuration & Administration

    Software
    Converge Console

  • Power Input Range

    Auto-Adjusting
    100-240 VAC; 50/60 Hz

  • Power Consumption

    30W Typical

  • Operating Temperature

    Ambient unit temperature: 14 to 122 deg. F (-10 to 50 deg. C)

  • Approvals & Compliance

    AES48-2005: AES standard on interconnections - Grounding and EMC practices - Shields of connectors in audio equipment containing active circuitry (self certified)
    U.S.A. & Canada
    CSA safety listed
    EU Countries
    RoHS compliant
    WEEE compliant

  • Dimensions (LxDxH)

    17.25 x 10.25 x 1.75" (43.82 x 26.04 x 4.45cm)

  • Weight

    7.5 lbs (3.40kg)

  • UPC Code

    00671010518207

About ClearOne CONVERGE Pro TH20

Where professional conferencing meets superior audio performance, the CONVERGE Pro TH20 Professional Conferencing Telephone Interface stands out. This advanced, high-quality device is designed to expand your CONVERGE Pro system with additional analog phone inputs, creating a simplified interface for enhanced conferencing capabilities.

With a single telephone line connection, you can daisy chain up to 16 units, each providing two line-level inputs and outputs. This innovative feature increases system capacity and ensures seamless integration with ClearOne's legacy audio quality.

The CONVERGE Pro TH20 is equipped with an advanced telephone feature set and signal processing improvements. These include telephone noise cancellation on the RX channel, ClearEffect speech enhancement, automatic level control, and caller ID. It also offers selectable ringers for a personalized touch.

The device's increased I/O capabilities, including 2-line level input/output and an audio expansion bus, make it a versatile addition to any professional conferencing setup. Management improvements such as integrated Ethernet and USB connections, SNMP and HTML remote management agents, an event scheduler, and a diagnostic console further enhance its functionality.

The CONVERGE Pro TH20 is renowned for its superior audio performance. Its digital signal processing technology ensures crystal clear audio, while echo cancellation eliminates telephone line echo. An automatic level control and digital anti-alias filter work together to minimize hum and Central Office switching noise, ensuring your conference calls are as clear and uninterrupted as possible.

The device offers configuration flexibility and scalability, connecting to ClearOne's Converge Pro products through an expansion bus port. With multiple TH20s, you can conference up to 16 callers in a Converge Pro installation.

Ease of use is a key feature of the CONVERGE Pro TH20. It includes speed dial that stores 10 frequently dialed numbers, and incoming call ringing is heard through the loudspeaker. Selectable auto-answer and auto-disconnect features, along with integrated DTMF (touch-tone) dialing, allow users to dial telephone numbers, access voice mail, pagers, and more without the use of a separate telephone device.

Whether you're outfitting conference rooms, boardrooms, courtrooms, distance learning facilities, convention centers and hotels, training rooms, telemedicine facilities, or houses of worship, the CONVERGE Pro TH20 Professional Conferencing Telephone Interface is a durable, innovative solution for your professional conferencing needs.

ClearOne CONVERGE Pro TH20 Features

  • Professional-grade conferencing interface with noise cancellation for crystal-clear audio
  • Expandable system with daisy-chain capability for up to 16 units
  • Advanced signal processing with echo cancellation and ClearEffect speech enhancement
  • Integrated Ethernet and USB for efficient remote management and diagnostics
  • Configurable via Console Software for ease of use and control in various settings
  • Ideal for high-quality audio in conference rooms, boardrooms, and other professional environments

Key Features

  • Experience crystal-clear audio with professional noise cancellation for distraction-free calls.
  • Easily integrates with CONVERGE Pro mixers and DSPs for seamless audio conferencing setups.
  • Enjoy wide frequency response ensuring natural voice quality for clear communication during meetings.
  • Eliminate echo with telco line echo cancellation, creating a smooth, professional conference call.
  • Connect various devices using balanced line inputs/outputs for versatile audio configurations.
  • Manage your audio setup via Ethernet with Quality of Connection (QoC) for stable performance.

What's in the box:

  • ClearOne CONVERGE Pro TH20 Professional Conferencing Telephone Interface
  • 6 Position Terminal Block Connector (Black)
  • 6 Position Terminal Block Connector (Green)
  • 8' Grounded Power Cord
  • 18 " RJ-45/RJ-45 Patch Cable
  • 12' Telephone Cable
  • 6' USB Type A to Type B Cable
  • Screw/Washer Kit
  • Software and Documentation CD
  • Installation and Operation Manual
  • ClearOne 2 Year Warranty
