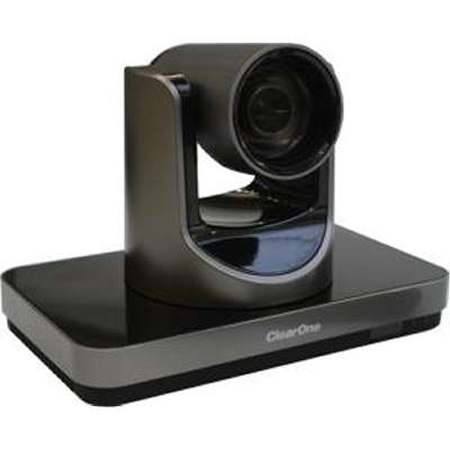

ClearOne UNITE 200 HD USB/HDMI/IP 12x PTZ Camera
See all ClearOne items

ClearOne UNITE 200 HD USB/HDMI/IP 12x PTZ Camera

SKU: CO9102100003
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ClearOne UNITE 200 Specifications

  • Video System

    1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25

  • Sensor

    1/2.7 Inch, CMOS, Effective Pixel: 2.07m

  • Scanning Mode

    PROGRESSIVE

  • Lens

    12x, F3.5MM - 42.3MM, F1.8 - F2.8

  • Minimal Illumination

    0.05 LUX at (F1.8, AGC ON)

  • Shutter

    1/30S - 1/10000S

  • White Balance

    Auto, Indoor, Outdoor, One Push, Manual

  • Backlight Compensation

    Supported

  • Digital Noise Reduction

    2D & 3D Digital Noise Reduction

  • Video S/N

    >=55DB

  • Horizontal Angle Of View

    72.5 deg. - 6.9 deg.

  • Vertical Angle Of View

    44.8 deg. - 3.9 deg.

  • Horizontal Rotation Range

    +/-170 deg.

  • Vertical Rotation Range

    -30 deg. - +90 deg.

  • Pan Speed Range

    1.7 deg. - 100 deg./S

  • Tilt Speed Range

    1.7 deg. - 69.9 deg./S

  • H & V Flip

    Supported

  • Image Freezing

    Supported

  • Number Of Presets

    255

  • Flexible Installation

    Standard Mount, Upside-down Mount

  • Operating Systems

    Windows 7, Windows 8, Windows 8.1, Windows 10, Mac Osx, Linux

  • Color System

    YUV 4:2:2

  • Video Formats

    USB3.0: 1080p/30,1080p/25,720p/30,720p/25

  • USB Video Communication

    UVC 1.0

  • UVC PTZ

    Supported

  • Video Coding Standard

    H.265/H.264/MJPEG

  • Video Streams

    Main Stream, Sub Stream

  • Main Stream Resolution

    1920 x 1080, 1280 x 720,1024 x 576

  • Sub Stream Resolution

    720 x 576, 720 x 480, 320 x 240

  • Bit Rate

    128KBPS - 8192KBPS

  • Bit Rate Type

    Variable Rate, Fixed Rate

  • Frame Rate

    50HZ: 1 - 50 FPS, 60HZ: 1 - 60 FPS

  • Audio Stream Rate

    96K, 128K, 256K

  • Supported Protocols

    TCP/IP, HTTP, RTSP, RTMP, DHCP, MULTICAST

  • HD Output

    1x HDMI: Version 1.3

  • Network Interface

    1x RJ45: 10m/100m Adaptive Ethernet Port

  • Audio Inputs

    1-CH 3.5mm Audio Interface, Line In

  • USB

    1x USB3.0: Type B Female Jack
    1x USB2.0: Type A Female Jack (reserved Interface)

  • Communication

    1x RS-232 Out: 8-pin Min Din, Max Distance:
    30m, Protocols: Visca Network Use Only
    1x Rs485: Share with Rs232 Out, Max
    distance: 1200m, Protocols: Visca/pelco-d/pelco-p

  • Power Jack

    Jeita Type (DC IN 12v)

  • Input Voltage

    DC 12V

  • Power Consumption

    12W (MAX)

  • Operating Temperature

    -10 to 40 deg. C (14 to 104 deg. F)

  • Storage Temperature

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Dimensions

    240 x 144 x 160mm (9.45 x 5.67 x 6.30")

  • Weight

    1.65kg (3.64lbs)

  • UPC Code

    671010009224

About ClearOne UNITE 200

UNITE 200, the most versatile, professional-gradePTZ camera in the industry, includes USB, HDMI and IP connections making it ideal for multiple applications such as PC-based web conferencing,UC applications, videoconferencing, distance learning, lecture capture, telepresence, surveillance, remote management, IT control and more.

Enterprise-class video
• Full HD video quality with 1080p at 60fps
• 12x optical zoom for close-up views and whiteboard details with complete clarity
• 73deg. wide-angle view to capture all participants across the entire conference room
• Super-High SNR and advanced 2D & 3D noise reduction

IP streaming - H.265
• Supports H.264 and H.265 encoding, enabling 1080p at 60fps video stream at ultra-low bandwidth
• RTSP streaming via unicast & multicast
• Line-in interface to stream audio
• Compatible with ClearOne VIEW Pro

Multiple connections
• Support for USB 3.0, USB 2.0, HDMI and IP connections
• Simultaneous video output to USB, HDMI and IP streaming
• Flexibility to control the camera's Pan, Tilt and Zoom functions via RS-232 or USB (UVC) or IP-based web management

Compatibility with multiple applications
• Compatible with Zoom
• Compatible with many popular PC-based video applications in meeting rooms, including Cisco Jabber and WebEx, Citrix GoToMeeting, ClearOne Spontania, Google Hangouts, Microsoft Skype and Skype for Business and more
• UNITE 200 is also compatible with ClearOne COLLABORATE Pro

ClearOne UNITE 200 Features

  • Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
  • Compatible with popular applications such as COLLABORATE Space, Microsoft Teams, Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more.
  • Control the camerafs functions via IR remote, RS-232, or UVC protocol.
  • Supports PoE
  • H.264/H.265 streaming and line-in interface to stream audio along with video over IP.
  • Support for USB 3.0/2.0, HDMI, and IP with simultaneous video output to all three outputs.
  • Super-high SNR with advanced 2D and 3D noise reduction.
  • VISCA, PELCO-D, PELCO-P Support
  • White Balance and Backlight Compensation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Output up to 1080p60 USB Video
  • 12x Zoom Lens, f1.8 to 2.8 Aperture
  • Compatible with Multiple Platforms
  • USB, RS-232, RS-485 Control
  • Supports PoE
  • Simultaneous video output

What's in the box:

  • 2.1MP H.265 Full HD Indoor/Outdoor Network Surveillance PTZ Camera
