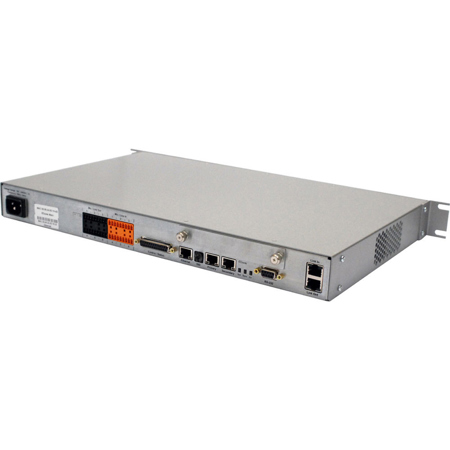

ClearOne CONVERGE Matrix 64 EX Audio Mixer and Router with 64x64 Dante Audio Channels

SKU: CO9103000006 MFR: 910-3000-006
Earn VIP Reward Points

Key Features

  • Experience pristine audio with the ClearOne CONVERGE Matrix 64 EX audio mixer.
  • Enjoy seamless connectivity with 64x64 Dante audio channels for flexible routing.
  • Easily integrate with existing systems using versatile mic/line inputs & outputs.
  • Achieve superior sound quality with a wide frequency response of 20Hz - 22kHz.
  • Optimize your audio setup with comprehensive control via Ethernet and USB ports.
  • Ensure compatibility across all CONVERGE units for a scalable audio solution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Matrix 64 EX Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    All CONVERGE units (840T, 880, 880T, 880TA, 8i, SR1212, SR1212A, TH20, VH20)
    CONNECT Dante bridge
    WS800 wireless mic system
    Any 3rd party Dante products

Mic/Line Inputs & Outputs

Jump to...
  • Mic/Line Inputs & Outputs

    6 inputs
    6 outputs
    Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu +/- 0.5dBu

  • Equivalent Input Noise (EIN)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, <-98dB

  • Input Impedance

    2.2kOhms, 1% (Mic/Line balanced line to ground)

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    Impedance: 6.81kOhms, 48V

  • Output Impedance

    95Ohms, 1% (Mic/Line balanced)

  • Output Level

    0dBu(Nominal), 20dBu (Max), -40dBu (Selectable)

  • Audio channels

    64 x 64 bidirectional at 48kHz per pair of primary & secondary Dante ports

  • Sample rate

    48kHz/96kHz

  • Primary & Secondary network

    Gigabit Ethernet RJ45 connector

  • Expansion card

    Additional 64 x 64 bidirectional at 48kHz (Sold Separately)

Expansion Bus Input/Output

Jump to...
  • Proprietary Link In & Out ports

    RJ45 Cat5e/Cat6 connection for Redundancy setup

Other Ports

Jump to...
  • Ethernet

    10/100 Ethernet Network Port RJ45, auto negotiation

  • Serial

    RS-232, DB9 Female, Serial Command Protocol Only, 9600/19200/38400/115200 Baud; 8 bits, 1 stop, no parity

  • USB

    Type B connector, USB 2.0 compatible

  • Control/Status

    DB25 Female, 8 Open Collector Outputs, 12 Active High Inputs, 5VDC Power Source

  • Device Identification

    8 pin DID switch

General

Jump to...
  • Power

    100-240V AC, 50/60 HZ, AC inlet

  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Dimensions (WxDxH)

    17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

About ClearOne CONVERGE Matrix 64 EX

Overcome the challenges of large-scale professional audio installations with the advanced CONVERGE Matrix 64 EX Audio Mixer and Router from ClearOne. This high-tech device boasts an impressive 64x64 Dante Audio Channels, offering a vast number of audio inputs and outputs. This makes it an ideal solution for environments that require multiple speakers and microphones, such as conference rooms, houses of worship, and other large venues.

The CONVERGE Matrix 64 EX is not just an audio mixer and router; it's an innovative tool that seamlessly integrates with the rest of the CONVERGE product line and any other 3rd party products. It utilizes the sophisticated Dante audio-over-IP networking technologies, ensuring smooth and efficient audio distribution.

Whether you need sound reinforcement, live announcements, pre-recorded audio, emergency information, background music, or paging, this professional audio mixer and router has got you covered. It's perfect for a wide range of applications, including government facilities, corporate buildings, transportation centers, airports, universities, houses of worship, hospitality and entertainment venues, convention centers, auditoriums, healthcare centers, and even cruise ships.

Experience the superior performance and reliability that ClearOne is known for with the CONVERGE Matrix 64 EX Audio Mixer and Router. It's more than just a piece of equipment; it's a game-changer in the world of professional audio installations.

ClearOne CONVERGE Matrix 64 EX Features

  • CONVERGE MATRIX 64 EX supports 64 x 64 audio channel matrix
  • Field-upgradable with 64 x 64-expansion card to make it 128 x 128
  • Distributes digital audio using Dante networking technology
  • Mixes and routes audio channels
  • Works with all CONVERGE units (840T, 880, 880T, 880TA, 8i, SR1212, SR1212A, TH20, VH20) & CONNECT Dante bridge and WS800 wireless mic system
  • Works with any 3rd party Dante products
  • Shows full MATRIX view, filtered MATRIX view based on groups/zones
  • Provides highly scalable, reliable, modular system adds flexibility
  • Offers complete system redundancy support for network and device

Key Features

  • Experience pristine audio with the ClearOne CONVERGE Matrix 64 EX audio mixer.
  • Enjoy seamless connectivity with 64x64 Dante audio channels for flexible routing.
  • Easily integrate with existing systems using versatile mic/line inputs & outputs.
  • Achieve superior sound quality with a wide frequency response of 20Hz - 22kHz.
  • Optimize your audio setup with comprehensive control via Ethernet and USB ports.
  • Ensure compatibility across all CONVERGE units for a scalable audio solution.

What's in the box:

  • ClearOne CONVERGE Matrix 64 EX Audio Mixer and Router
  • USB Cable
  • Power Cable
  • 6x 3.5mm Terminal Block (Orange)
  • 6x 3.5mm Terminal Block (Black)
  • 4x #10-32 Rack Mounting Screws and Plastic Washers
  • ClearOne Warranty
