ClearOne CONVERGE Pro 2 DSP Mixer, 12 In, 8 Out, USB Audio & Telephone Interface
ClearOne CONVERGE Pro 2 DSP Mixers

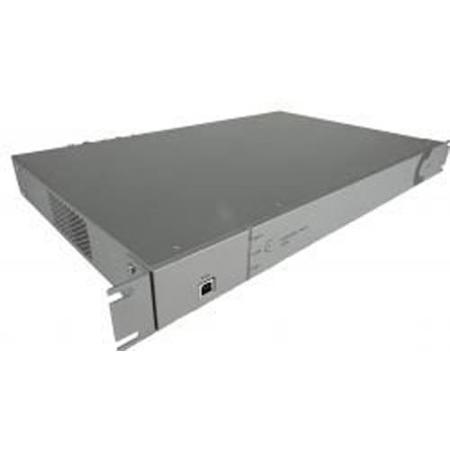

ClearOne CONVERGE Pro 2: Picture 1 thumbnail
See all ClearOne items

ClearOne CONVERGE Pro 2 DSP Mixer with 12 Mic/Line Inputs (AEC), 8 Mic/Line Outputs, Built-in USB Audio and Built-in Telephone Interface

SKU: CO9103200002

This item is no longer available.

Recommended Alternatives

ClearOne CONVERGE Pro 880: Picture 1 regular
ClearOne CONVERGE Pro 880 8-Channel AEC Microphone Mixer
$4,792.00
ClearOne CONVERGE Pro 880T: Picture 1 regular
ClearOne CONVERGE Pro 880T 8-Channel AEC Mixer with Built in Telephone Hybrid
$5,012.00
ClearOne CONVERGE Pro 880TA: Picture 1 regular
ClearOne CONVERGE Pro 880TA 8-Ch Mixer with Telephone Hybrid and 4-Ch Amplifier
$5,276.00
ClearOne CONVERGE SR1212: Picture 1 regular
ClearOne CONVERGE SR1212 8-Channel Digital Matrix Mixer
$2,364.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ClearOne CONVERGE Pro 2 Specifications

System

System

Jump to...

  • Mic/Line inputs

    12

  • Mic/Line outputs

    8

  • AEC

    Yes

  • C-link expansion bus

    Yes

  • P-link peripheral bus

    Yes

  • USB audio interface

    Yes

  • Ethernet, RS-232, GPIO interface

    Yes

Applications

Jump to...

  • Built-in USB for PC-based conferencing

    Yes

  • Built-in Telco for teleconferencing

    Yes

  • Built-in VoIP for VoIP conferencing

    No

  • Microsoft Skype

    For Business audio conferencing: No

  • Sound Reinforcement applications

    Yes

  • Built-in Dante for audio networking

    No

Peripheral Devices

Jump to...

  • Beamforming Mic Array 2

    Yes

  • DIALOG 20 - Wireless Mic System

    Yes

  • GPIO Expander

    Yes

  • USB Expander

    Yes

Configuration, Management & Control

Jump to...

  • New CONSOLE software

    Yes

  • Dialer app - Win, Mac, iOS, Android

    Yes

  • Touch Panel Controller

    Yes

  • Third-party control modules

    Yes

Mic/line Inputs & Outputs

Jump to...

  • Inputs

    Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Outputs

    Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at +4dBu, line level, 0.006%
    20Hz - 22kHz at -56dBu, mic level, <0.04%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level:

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level:

    0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB Audio

Jump to...

  • Port Type

    USB-B connector

  • Audio

    Digital Audio, 2 x 2 bidirectional channels

  • Sample Rate:

    48kHz

  • Sample Bit Depth:

    24-Bit

  • Compatible

    USB 2.0
    USB 3.0

Telephone

Jump to...

  • Port Type

    RJ11

  • Frequency Response

    Mic/Line Input to Telephone Out: 250Hz - 3.4kHz , +/- 2dB, 4dBu
    Telephone In to Mic/Line Out: 250Hz - 3.4kHz, +/- 2dB, -15dBu

  • THD + N

    Mic/Line Input to Telephone Out: <0.1% at 4dBu
    Telephone In to Mic/Line Out: <0.3% at -15dBu

  • Dynamic Range

    Mic/Line Input to Telephone Out: >67dBu
    Telephone In to Mic/Line Out: >87dBu

  • REN

    Ringer Equivalent Number 0.2

  • Transhybrid Balance

    30dB (1kHz, all AC terminations)

Ethernet

Jump to...

  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • IP address:

    IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

C-link Expansion Bus

Jump to...

  • Ports Type

    RJ-45 (Cat5e or Cat6)

  • C-Link In & Out

    Proprietary Expansion Bus

  • Audio

    64 Expansion channels

  • Cable

    Solid core, factory terminated Cat 5e or 6 cable

  • Distance

    Up to 150' (45M)

P-link Peripheral Bus

Jump to...

  • Ports Type

    RJ-45 (Cat5e or Cat6)

  • P-Link In & Out

    Proprietary Peripheral Bus

  • PoE In

    P-Link In Port
    PoE 802.3af Mode B, Midspan
    Power on "spare pairs" 4,5 and 7,8
    Input voltage range: 48V to 56V

  • Audio

    Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units

  • Cable

    Solid core, factory terminated Cat 5e or 6 cable

  • Distance

    Up to 200' (60.96m)

  • Long Distance P-Link

    Increases P-Link distance from 200 Ft to 650 Ft 650 Ft (200M) maximum cable distance between any two units Cat6, 550 MHz, 23 AWG, solid conductor cable
    Do not use Copper Clad Aluminum (CCA) cable
    Available only for BFM2 peripheral units
    48V PoE Midspan Mode B power injector for 1 BFM2 unit
    56V PoE Midspan Mode B power injector for 3 BFM2 units

RS232

Jump to...

  • Port Type

    DB9 Female

  • Settings

    9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

  • Support

    Serial commands

GPIO

Jump to...

  • Port Type

    5.08mm Green color Phoenix/Euroblock type male header

  • Support

    Control, Status, Variable Voltage Control

  • Power Pin:

    5V DC at 350mA Power Source

  • Pin 1 to 4

    Open Collector Outputs: 40VDC at 250mA
    Active Outputs (Source/Sink): 5VDC at 25mA
    Logic Inputs: 40.2kOhms pull up
    Variable Voltage Control Inputs: 5VDC max

  • Ground Pin

    GND

USB Control

Jump to...

  • Port Type

    USB-B connector

  • Location

    Front Panel

  • Compatible

    USB 2.0
    USB 3.0

LEDs

Jump to...

  • Location

    Front Panel

  • Status LED

    Off: Unit still initializing
    Blue - Fast Blinking: Stack Syncing in progress
    Blue - Slow Blinking: Unit not configured
    Blue - Solid: Configured unit
    Red - Fast Blinking: Stack Sync error

  • Locate LED

    Blue - Blinking: Unit "Locate" command received

  • Power LED:

    Blue - Solid: Unit is powered on

Touch Sensor

Jump to...

  • Sensor Type:

    Capacitive Touch Button

  • Location

    Front Panel

Power & Thermal

Jump to...

  • Port Type

    AC Inlet

  • Mains Voltage:

    100-240V AC, 50/60Hz

  • Power Consumption:

    50 Watts Typical

  • Thermal

    170 BTU/Hr Typical

  • Operating Temperature:

    14 deg. F (-10 deg. C) to 104 deg. F (40 deg. C) Ambient Temperature

General

Jump to...

  • RU size

    1 RU

  • Dimensions (WxDxH)

    Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

    With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

  • Weight

    9.3 lbs (4.22kg) (Approximately)

About ClearOne CONVERGE Pro 2

After extensive research and development, the CONVERGE Pro 2 DSP Mixer emerges as the most advanced professional audio DSP platform in the industry, specifically designed for conferencing and sound reinforcement applications. This high-performance mixer excels in any room size, audio environment, and application, making it a versatile choice for diverse audio needs.

The 128T model of the CONVERGE Pro 2 DSP Mixer boasts 12 Mic/Line inputs with Acoustic Echo Cancellation (AEC), 8 Mic/Line outputs, and a built-in Telephone interface. It also features USB audio, GPIO, RS232, and IP control interfaces, along with P-Link and C-Link expansion buses. This mixer is meticulously optimized to work seamlessly with the new Beamforming Mic Array 2 and DIALOG 20 2-Channel Wireless Microphone System through its native connection.

The powerful architecture of the CONVERGE Pro 2 DSP Mixer includes built-in Telco with ClearEffect processing and USB for PC-based conferencing. It also impresses with its reduced footprint and power consumption, making it an eco-friendly choice.

The scalable connectivity of this mixer allows you to stack up units to 144 Mic/Line inputs. It also features an expansion bus "C-Link" with 64 channels and a "P-Link" bus to connect peripheral devices.

The new CONSOLE software enables easy configuration and management of the mixer. It offers auto-discovery of devices, MatrixView for the entire system, FlowView for visualized audio signal paths, and system monitoring and troubleshooting.

The next-gen Acoustic Echo Cancellation processing, Distributed Echo Cancellation on every mic input, Noise Cancellation with Adaptive-Ambience, Acoustic Intelligence with faster convergence, DARE feedback elimination, and advanced microphone gating are all part of the superior audio signal processing of this mixer.

The CONVERGE Pro 2 DSP Mixer is ideal for PC-based conferencing and Unified Communications, as well as video codec-based Video Conferencing. It offers flexible control options, including a Dialer app for Windows, Mac, iOS, Android, and a Touch Panel Controller with tabletop and wall mount options. It also supports 3rd-party control modules, making it a comprehensive solution for all your audio needs.

ClearOne CONVERGE Pro 2 Features

  • Advanced professional DSP platform ideal for conferencing and sound reinforcement
  • 12 Mic/Line inputs with AEC and 8 outputs for versatile audio management
  • Built-in Telephone interface and USB audio for comprehensive connectivity
  • Compatible with Beamforming Mic Array 2 and DIALOG 20 Wireless Mics
  • Intuitive CONSOLE software for easy device configuration and management
  • Superior audio processing with next-gen Acoustic Echo and Noise Cancellation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance audio clarity with the CONVERGE Pro 2 DSP mixer's 12 mic/line inputs.
  • Achieve superior sound with 8 mic/line outputs, perfect for complex audio setups.
  • Integrate seamlessly with built-in USB audio for PC-based conferencing solutions.
  • Enjoy reliable teleconferencing via the integrated telephone interface feature.
  • Optimize sound reinforcement applications with the mixer's versatile settings.
  • Expand your audio network using the C-link expansion bus for enhanced connectivity.

What's in the box:

  • ClearOne CONVERGE Pro 2 DSP Mixer
  • 6' Grounded Power Cord
  • 12x 3-Position Terminal Block Input Connector (Orange)
  • 8x 3-Position Terminal Block Output Connector (Black)
  • 6-Position Terminal Block GPIO Connector (Green)
  • 18 " RJ-45 to RJ-45 C-Link Cable
  • 6' USB Type A to USB Type B Cable
  • 4x Screw/Washer Kit
  • ClearOne Warranty
