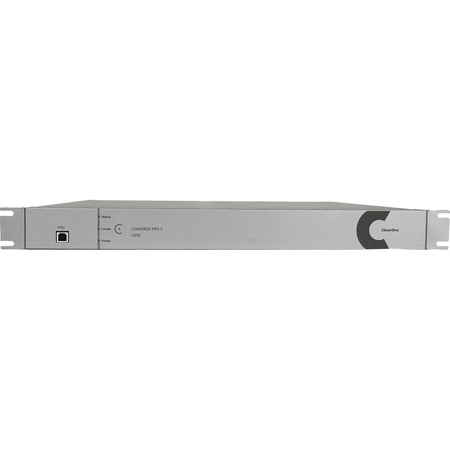

ClearOne CONVERGE Pro 2 DSP Mixer with 4 Mic/Line Inputs (AEC), 8 Mic/Line Outputs, Built-in USB Audio and Built-in VoIP Interface for 2 Lines

4

8

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

For Business audio conferencing: Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

20Hz - 22kHz at +4dBu, +/- 0.5dBu

20kHz BW, max gain, Rs = 150Ohms, -126dBu

20Hz - 22kHz at +4dBu, line level, 0.006%
20Hz - 22kHz at -56dBu, mic level, <0.04%

20Hz - 20kHz at 0dB, >105dB

Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

Balanced (line to ground), 2.2kOhms, 1%

Adjustable -56dB to 0dB, 7dB step coarse gain

-65dBu to 20dBu

48V, Impedance 6.81kOhms

Balanced (line to ground), 95Ohms, 1%

0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB-B connector

Digital Audio, 2 x 2 bidirectional channels

48kHz

24-Bit

USB 2.0
USB 3.0

RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

5 Lines

Line 1: 5
Line 2: 5
Line 3: 4
Line 4: 3
Line 5: 2

G.711 uLaw
G.711 ALaw
G.722

Microsoft Skype for Business support (1 client)
Choose either regular VoIP or S4B through configuration

RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

Dual binding posts

2 Channels

10W Max, 8Ohms load

20Hz - 22kHz at +10dBu, +/- 0.5dBu

20Hz - 22kHz at +10dBu, 1W, <0.3%

20Hz - 22kHz at 20dB, >102dB, with 20kHz digital low pass filter

Channel to Channel, stimulus at 20dBu, 10W output to receptor 8Ohms load, 20Hz - 22kHz, < -70dB

RJ-45 (Cat5e or Cat6)

Proprietary Expansion Bus

64 Expansion channels

Solid core, factory terminated Cat 5e or 6 cable

Up to 150' (45M)

RJ-45 (Cat5e or Cat6)

Proprietary Peripheral Bus

P-Link In Port
PoE 802.3af Mode B, Midspan
Power on "spare pairs" 4,5 and 7,8
Input voltage range: 48V to 56V

Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units

Solid core, factory terminated Cat 5e or 6 cable

Up to 200' (60M)

Increases P-Link distance from 200 Ft to 650 Ft
650 Ft (200M) maximum cable distance between any two units
Cat6, 550 MHz, 23 AWG, solid conductor cable
Do not use Copper Clad Aluminum (CCA) cable
Available only for BFM2 peripheral units
48V PoE Midspan Mode B power injector for 1 BFM2 unit
56V PoE Midspan Mode B power injector for 3 BFM2 units

DB9 Female

9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

Serial commands

5.08mm Green color Phoenix/Euroblock type male header

Control, Status, Variable Voltage Control

5V DC at 350mA Power Source

Open Collector Outputs: 40VDC at 250mA
Active Outputs (Source/Sink): 5VDC at 25mA
Logic Inputs: 40.2kOhms pull up
Variable Voltage Control Inputs: 5VDC max

GND

USB-B connector

Front Panel

USB 2.0
USB 3.0

Front Panel

Off: Unit still initializing
Blue - Fast Blinking: Stack Syncing in progress
Blue - Slow Blinking: Unit not configured
Blue - Solid: Configured unit
Red - Fast Blinking: Stack Sync error

Blue - Blinking: Unit "Locate" command received

Blue - Solid: Unit is powered on

Capacitive Touch Button

Front Panel

AC Inlet

100-240V AC, 50/60Hz

50 Watts Typical

170 BTU/Hr Typical

-10 to 40 deg. C (14 to 104 deg. F) Ambient Temperature

1 RU

Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

9.3 lbs (4.22kg) (Approximately)
