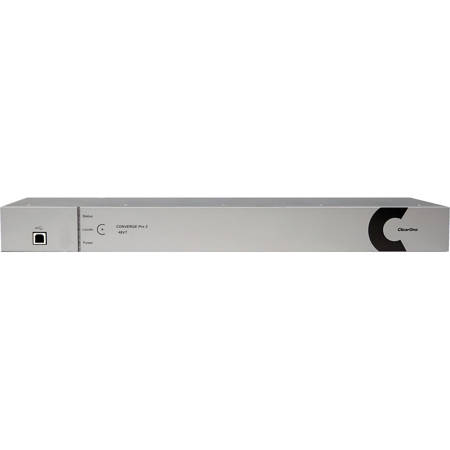

ClearOne CONVERGE Pro 2 DSP Mixer, 4 In/8 Out, USB Audio, VoIP, Tele Interface
ClearOne CONVERGE Pro 2 DSP Mixers
ClearOne CONVERGE Pro 2: Picture 1 thumbnail
See all ClearOne items
Just Reduced

ClearOne CONVERGE Pro 2 DSP Mixer with 4 Mic/Line Inputs (AEC), 8 Mic/Line Outputs, Built-in USB Audio, Built-in VoIP Interface for 5 Lines and Built-in Telephone Interface

SKU: CO9103200008 MFR: 910-3200-008
Be the first to review this itemAsk a Question
$3,449.00
OR
$288/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer for flawless conferencing.
  • Enjoy versatile connectivity with built-in USB audio for PC-based conferencing solutions.
  • Integrate seamlessly with VoIP systems using the built-in VoIP interface for up to 5 lines.
  • Enhance teleconferencing with the integrated telephone interface for clear communication.
  • Optimize sound reinforcement applications with 4 mic/line inputs and 8 mic/line outputs.
  • Easily manage configurations via CONSOLE software for Windows, Mac, iOS, and Android.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ClearOne CONVERGE Pro 2 Specifications

System

System

Jump to...

  • Mic/Line inputs

    4

  • Mic/Line outputs

    8

  • AEC

    Yes

  • C-link expansion bus

    Yes

  • P-link peripheral bus

    Yes

  • USB audio interface

    Yes

  • Ethernet, RS-232, GPIO interface

    Yes

Applications

Jump to...

  • Built-in USB for PC-based conferencing

    Yes

  • Built-in Telco for teleconferencing

    Yes

  • Built-in VoIP for VoIP conferencing

    Yes

  • Microsoft Skype

    For Business audio conferencing: Yes

  • Sound Reinforcement applications

    Yes

  • Built-in Dante for audio networking

    No

Peripheral Devices

Jump to...

  • Beamforming Mic Array 2

    Yes

  • DIALOG 20 - Wireless Mic System

    Yes

  • GPIO Expander

    Yes

  • USB Expander

    Yes

Configuration, Management & Control

Jump to...

  • New CONSOLE software

    Yes

  • Dialer app - Win, Mac, iOS, Android

    Yes

  • Touch Panel Controller

    Yes

  • Third-party control modules

    Yes

Mic/line Inputs & Outputs

Jump to...

  • Inputs

    Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Outputs

    Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at +4dBu, line level, 0.006%
    20Hz - 22kHz at -56dBu, mic level, <0.04%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level

    0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB Audio

Jump to...

  • Port Type

    USB-B connector

  • Audio

    Digital Audio, 2 x 2 bidirectional channels

  • Sample Rate

    48kHz

  • Sample Bit Depth

    24-Bit

  • Compatible

    USB 2.0
    USB 3.0

Telephone

Jump to...

  • Port Type

    RJ11

  • Frequency Response

    Mic/Line Input to Telephone Out:250Hz - 3.4kHz , +/- 2dB, 4dBu
    Telephone In to Mic/Line Out:250Hz - 3.4kHz, +/- 2dB, -15dBu

  • THD + N

    Mic/Line Input to Telephone Out: <0.1% at 4dBu
    Telephone In to Mic/Line Out: <0.3% at -15dBu

  • Dynamic Range

    Mic/Line Input to Telephone Out: >67dBu
    Telephone In to Mic/Line Out: >87dBu

  • REN

    Ringer Equivalent Number 0.2

  • Transhybrid Balance

    30dB (1kHz, all AC terminations)

VoIP

Jump to...

  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • Audio

    5 Lines

  • Maximum Number of Calls per Line

    Line 1: 5
    Line 2: 5
    Line 3: 4
    Line 4: 3
    Line 5: 2

  • Codec

    G.711 uLaw
    G.711 ALaw
    G.722

  • Skype for Business (S4B)

    Microsoft Skype for Business support (1 client)
    Choose either regular VoIP or S4B through configuration

Ethernet

Jump to...

  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • IP address

    IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

Amplifier Output

Jump to...

  • Speaker Output Port:

    Dual binding posts

  • Audio

    2 Channels

  • Output Power

    10W Max, 8Ohms load

  • Frequency Response:

    20Hz - 22kHz at +10dBu, +/- 0.5dBu

  • THD + N

    20Hz - 22kHz at +10dBu, 1W, <0.3%

  • Dynamic Range

    20Hz - 22kHz at 20dB, >102dB, with 20kHz digital low pass filter

  • Crosstalk

    Channel to Channel, stimulus at 20dBu, 10W output to receptor 8Ohms load, 20Hz - 22kHz, < -70dB

C-link Expansion Bus

Jump to...

  • Ports Type

    RJ-45 (Cat5e or Cat6)

  • C-Link In & Out

    Proprietary Expansion Bus

  • Audio

    64 Expansion channels

  • Cable

    Solid core, factory terminated Cat 5e or 6 cable

  • Distance

    Up to 150' (45M)

P-link Peripheral Bus

Jump to...

  • Ports Type

    RJ-45 (Cat5e or Cat6)

  • P-Link In & Out

    Proprietary Peripheral Bus

  • PoE In

    P-Link In Port
    PoE 802.3af Mode B, Midspan
    Power on "spare pairs" 4,5 and 7,8
    Input voltage range: 48V to 56V

  • Audio

    Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units

  • Cable

    Solid core, factory terminated Cat 5e or 6 cable

  • Distance

    Up to 200' (60M)

  • Long Distance P-Link

    Increases P-Link distance from 200 Ft to 650 Ft
    650 Ft (200M) maximum cable distance between any two units
    Cat6, 550 MHz, 23 AWG, solid conductor cable
    Do not use Copper Clad Aluminum (CCA) cable
    Available only for BFM2 peripheral units
    48V PoE Midspan Mode B power injector for 1 BFM2 unit
    56V PoE Midspan Mode B power injector for 3 BFM2 units

RS232

Jump to...

  • Port Type

    DB9 Female

  • Settings

    9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

  • Support

    Serial commands

GPIO

Jump to...

  • Port Type

    5.08mm Green color Phoenix/Euroblock type male header

  • Support

    Control, Status, Variable Voltage Control

  • Power Pin

    5V DC at 350mA Power Source

  • Pin 1 to 4

    Open Collector Outputs: 40VDC at 250mA
    Active Outputs (Source/Sink): 5VDC at 25mA
    Logic Inputs: 40.2kOhms pull up
    Variable Voltage Control Inputs: 5VDC max

  • Ground Pin

    GND

USB Control

Jump to...

  • Port Type

    USB-B connector

  • Location

    Front Panel

  • Compatible

    USB 2.0
    USB 3.0

LEDs

Jump to...

  • Location

    Front Panel

  • Status LED

    Off: Unit still initializing
    Blue - Fast Blinking: Stack Syncing in progress
    Blue - Slow Blinking: Unit not configured
    Blue - Solid: Configured unit
    Red - Fast Blinking: Stack Sync error

  • Locate LED

    Blue - Blinking: Unit "Locate" command received

  • Power LED

    Blue - Solid: Unit is powered on

Touch Sensor

Jump to...

  • Sensor Type

    Capacitive Touch Button

  • Location

    Front Panel

Power & Thermal

Jump to...

  • Port Type

    AC Inlet

  • Mains Voltage

    100-240V AC, 50/60Hz

  • Power Consumption

    50 Watts Typical

  • Thermal

    170 BTU/Hr Typical

  • Operating Temperature

    -10 to 40 deg. C (14 to 104 deg. F) Ambient Temperature

General

Jump to...

  • RU size

    1 RU

  • Dimensions (WxDxH)

    Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

    With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

  • Weight

    9.3 lbs (4.22kg) (Approximately)

About ClearOne CONVERGE Pro 2

Just when you thought professional audio conferencing couldn't get any better, the CONVERGE Pro 2 DSP Mixer steps in, setting a new industry standard for advanced professional audio DSP platforms. This sophisticated mixer is designed for both conferencing and sound reinforcement applications, delivering high-quality audio performance in any room size and audio environment.

The CONVERGE Pro 2 DSP Mixer is equipped with 4 Mic/Line inputs with AEC and 8 Mic/Line outputs, providing ample connectivity for your audio needs. Its built-in USB audio interface allows for seamless connection to a computer for recording or playback. The mixer also features a built-in VoIP interface for 5 lines, making it an ideal solution for VoIP conferencing.

This innovative mixer is optimized to work with the new Beamforming Mic Array 2 and DIALOG 20 2-Channel Wireless Microphone System through its native connection. It also boasts a built-in Skype for Business Client and Telco with ClearEffect processing, offering separate ports for VoIP/Skype for Business and Ethernet.

The CONVERGE Pro 2 DSP Mixer is not just powerful, but also scalable. It can function as a standalone system or be daisy-chained with other units to stack up to 144 Mic/Line inputs. It features expansion buses "C-Link" with 64 channels and "P-Link" to connect peripheral devices.

Configuration and management are made easy with the new CONSOLE software, which allows for auto-discovery of devices, MatrixView for the entire system, and FlowView for visualized audio signal paths. The mixer also offers system monitoring and troubleshooting for smooth operation.

The CONVERGE Pro 2 DSP Mixer utilizes ClearPath architecture for guided workflow and processing, next-gen Acoustic Echo Cancellation processing, and Noise Cancellation with Adaptive-Ambience. It also features Acoustic Intelligence with faster convergence, DARE feedback elimination, and advanced microphone gating.

Whether you're using it for POTS conferencing, VoIP conferencing, PC-based conferencing & Unified Communications, or Microsoft Skype for Business audio conferencing, the CONVERGE Pro 2 DSP Mixer offers flexible control options. It comes with a Dialer app for Windows, Mac, iOS, Android, and a Touch Panel Controller with tabletop and wall mount options. It also supports 3rd-party control modules, making it a versatile choice for all your professional audio needs.

ClearOne CONVERGE Pro 2 Features

  • Professional-grade DSP mixer with 4 Mic/Line inputs featuring AEC for crystal-clear conferencing
  • Built-in USB, VoIP for 5 lines, and Skype for Business interface for seamless digital connectivity
  • Scalable design allowing up to 144 Mic/Line inputs with C-Link and P-Link expansion buses
  • Innovative ClearPath architecture and next-gen acoustic processing for superior sound quality
  • Versatile control options with Dialer app compatibility across Windows, Mac, iOS, and Android
  • Compatible with Beamforming Mic Array 2 and DIALOG 20 for advanced wireless microphone integration

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer for flawless conferencing.
  • Enjoy versatile connectivity with built-in USB audio for PC-based conferencing solutions.
  • Integrate seamlessly with VoIP systems using the built-in VoIP interface for up to 5 lines.
  • Enhance teleconferencing with the integrated telephone interface for clear communication.
  • Optimize sound reinforcement applications with 4 mic/line inputs and 8 mic/line outputs.
  • Easily manage configurations via CONSOLE software for Windows, Mac, iOS, and Android.

What's in the box:

  • ClearOne CONVERGE Pro 2 DSP Mixer
  • 6' Grounded Power Cord
  • 12x 3-Position Terminal Block Input Connector (Orange)
  • 8x 3-Position Terminal Block Output Connector (Black)
  • 6-Position Terminal Block GPIO Connector (Green)
  • 18 " RJ-45 to RJ-45 C-Link Cable
  • 7' RJ-45 To RJ-45 VoIP Cable
  • 6' USB Type A to USB Type B Cable
  • 4x Screw/Washer Kit
  • ClearOne Warranty
