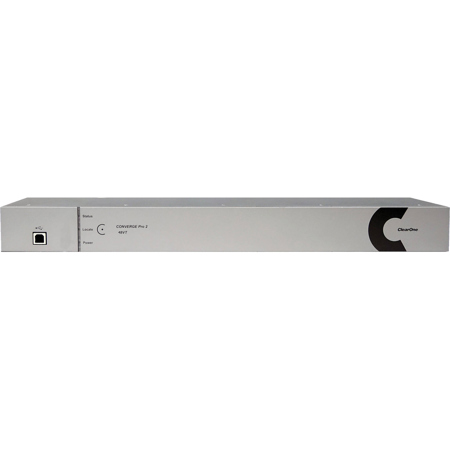

ClearOne CONVERGE Pro 2 DSP Mixer with 12 Mic/Line Inputs (AEC), 8 Mic/Line Outputs, Built-in USB Audio, Built-in VoIP Interface for 5 lines and Built-in Telephone Interface

SKU: CO9103200009 MFR: 910-3200-009
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer for flawless conferencing.
  • Enjoy seamless connectivity; this mixer supports USB, VoIP, and telephone interfaces.
  • Optimize your sound with 12 mic/line inputs & 8 outputs for professional audio clarity.
  • Use the built-in USB audio for PC-based conferencing, enhancing your virtual meetings.
  • Manage audio easily with user-friendly software for Windows, Mac, iOS, and Android.
  • Expand your audio network using C-Link for up to 64 expansion channels, maximizing scalability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Pro 2 Specifications

System
  • Mic/Line inputs

    12

  • Mic/Line outputs

    8

  • AEC

    Yes

  • C-link expansion bus

    Yes

  • P-link peripheral bus

    Yes

  • USB audio interface

    Yes

  • Ethernet, RS-232, GPIO interface

    Yes

Applications

Jump to...
  • Built-in USB for PC-based conferencing

    Yes

  • Built-in Telco for teleconferencing

    Yes

  • Built-in VoIP for VoIP conferencing

    Yes

  • Microsoft Skype

    For Business audio conferencing: Yes

  • Sound Reinforcement applications

    Yes

  • Built-in Dante for audio networking

    No

Peripheral Devices

Jump to...
  • Beamforming Mic Array 2

    Yes

  • DIALOG 20 - Wireless Mic System

    Yes

  • GPIO Expander

    Yes

  • USB Expander

    Yes

Configuration, Management & Control

Jump to...
  • New CONSOLE software

    Yes

  • Dialer app - Win, Mac, iOS, Android

    Yes

  • Touch Panel Controller

    Yes

  • Third-party control modules

    Yes

Mic/line Inputs & Outputs

Jump to...
  • Inputs

    Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Outputs

    Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at +4dBu, line level, 0.006%
    20Hz - 22kHz at -56dBu, mic level, <0.04%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level

    0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB Audio

Jump to...
  • Port Type

    USB-B connector

  • Audio

    Digital Audio, 2 x 2 bidirectional channels

  • Sample Rate

    48kHz

  • Sample Bit Depth

    24-Bit

  • Compatible

    USB 2.0
    USB 3.0

  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • Audio

    5 Lines

  • Maximum Number of Calls per Line

    Line 1: 5
    Line 2: 5
    Line 3: 4
    Line 4: 3
    Line 5: 2

  • Codec

    G.711 uLaw
    G.711 ALaw
    G.722

  • Skype for Business (S4B)

    Microsoft Skype for Business support (1 client)
    Choose either regular VoIP or S4B through configuration

Ethernet

Jump to...
  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • IP address

    IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

  • Port Type

    DB9 Female

  • Settings

    9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

  • Support

    Serial commands

  • Port Type

    5.08mm Green color Phoenix/Euroblock type male header

  • Support

    Control, Status, Variable Voltage Control

  • Power Pin

    5V DC at 350mA Power Source

  • Pin 1 to 4

    Open Collector Outputs: 40VDC at 250mA
    Active Outputs (Source/Sink): 5VDC at 25mA
    Logic Inputs: 40.2kOhms pull up
    Variable Voltage Control Inputs: 5VDC max

  • Ground Pin

    GND

USB Control

Jump to...
  • Port Type

    USB-B connector

  • Location

    Front Panel

  • Compatible

    USB 2.0
    USB 3.0

  • Location

    Front Panel

  • Status LED

    Off: Unit still initializing
    Blue - Fast Blinking: Stack Syncing in progress
    Blue - Slow Blinking: Unit not configured
    Blue - Solid: Configured unit
    Red - Fast Blinking: Stack Sync error

  • Locate LED

    Blue - Blinking: Unit "Locate" command received

  • Power LED

    Blue - Solid: Unit is powered on

Touch Sensor

Jump to...
  • Sensor Type

    Capacitive Touch Button

  • Location

    Front Panel

Power & Thermal

Jump to...
  • Port Type

    AC Inlet

  • Mains Voltage

    100-240V AC, 50/60Hz

  • Power Consumption

    50 Watts Typical

  • Thermal

    170 BTU/Hr Typical

  • Operating Temperature

    -10 to 40 deg. C (14 to 104 deg. F) Ambient Temperature

General

Jump to...
  • RU size

    1 RU

  • Dimensions (WxDxH)

    Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

    With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

  • Weight

    9.3 lbs (4.22kg) (Approximately)

About ClearOne CONVERGE Pro 2

After extensive research and development, the CONVERGE Pro 2 DSP Mixer emerges as the most advanced professional audio DSP platform in the industry, specifically designed for conferencing and sound reinforcement applications. This sophisticated mixer excels in any room size, audio environment, and application, making it a versatile choice for professionals.

The 128VT model of the CONVERGE Pro 2 DSP Mixer boasts 12 high-quality mic/line inputs with Acoustic Echo Cancellation (AEC), and 8 mic/line outputs. It is equipped with a built-in VoIP/Skype for Business interface, Telco, and USB audio, offering seamless connectivity for various communication platforms. The mixer also features GPIO, RS232, and IP control interfaces, along with P-Link and C-Link expansion buses, providing a comprehensive control solution.

Optimized to work with the new Beamforming Mic Array 2 and DIALOG 20 2-Channel Wireless Microphone System, the CONVERGE Pro 2 DSP Mixer ensures superior audio quality through its native connection. It stands out with its powerful architecture, featuring built-in VoIP with 5 lines, a built-in Skype for Business Client, and built-in Telco with ClearEffect processing. It also offers separate ports for VoIP/Skype for Business and Ethernet, and built-in USB for PC-based conferencing, reducing footprint and power consumption.

The mixer's scalable connectivity allows for standalone and daisy-chained systems, with the ability to stack up units up to 144 mic/line inputs. It also features an expansion bus "C-Link" with 64 channels and a "P-Link" bus to connect peripheral devices.

The CONVERGE Pro 2 DSP Mixer is easy to configure and manage, thanks to its new CONSOLE software. This innovative software allows for auto-discovery of devices, MatrixView for the entire system, FlowView for visualized audio signal paths, and system monitoring and troubleshooting.

The mixer's audio signal processing is top-notch, featuring ClearPath architecture for guided workflow and processing, next-gen Acoustic Echo Cancellation processing, Distributed Echo Cancellation on every mic input, Noise Cancellation with Adaptive-Ambience, Acoustic Intelligence with faster convergence, DARE feedback elimination, and advanced microphone gating.

The CONVERGE Pro 2 DSP Mixer is perfect for POTS conferencing, VoIP conferencing, PC-based conferencing & Unified Communications, and Microsoft Skype for Business audio conferencing. It offers flexible control options, including a dialer app for Windows, Mac, iOS, Android, a Touch Panel Controller with tabletop and wall mount options, and 3rd-party control modules. This advanced mixer is the ultimate solution for professional audio conferencing needs.

ClearOne CONVERGE Pro 2 Features

  • Advanced professional audio DSP platform, perfect for conferencing and sound reinforcement applications
  • Features 12 mic/line inputs with Acoustic Echo Cancellation (AEC) and 8 mic/line outputs
  • Equipped with built-in VoIP/Skype for Business interface, Telco, and USB audio for seamless connectivity
  • Offers scalable connectivity with standalone and daisy-chained systems, and up to 144 mic/line inputs
  • Comes with new CONSOLE software for easy configuration and management, including auto-discovery of devices and system monitoring
  • Provides top-notch audio signal processing with ClearPath architecture, next-gen Acoustic Echo Cancellation, and advanced microphone gating

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer for flawless conferencing.
  • Enjoy seamless connectivity; this mixer supports USB, VoIP, and telephone interfaces.
  • Optimize your sound with 12 mic/line inputs & 8 outputs for professional audio clarity.
  • Use the built-in USB audio for PC-based conferencing, enhancing your virtual meetings.
  • Manage audio easily with user-friendly software for Windows, Mac, iOS, and Android.
  • Expand your audio network using C-Link for up to 64 expansion channels, maximizing scalability.

What's in the box:

  • ClearOne CONVERGE Pro 2 DSP Mixer
  • 6' Grounded Power Cord
  • 12x 3-Position Terminal Block Input Connector (Orange)
  • 8x 3-Position Terminal Block Output Connector (Black)
  • 6-Position Terminal Block GPIO Connector (Green)
  • 18 " RJ-45 to RJ-45 C-Link Cable
  • 7' RJ-45 To RJ-45 VoIP Cable
  • 6' USB Type A to USB Type B Cable
  • 4x Screw/Washer Kit
  • ClearOne Warranty
