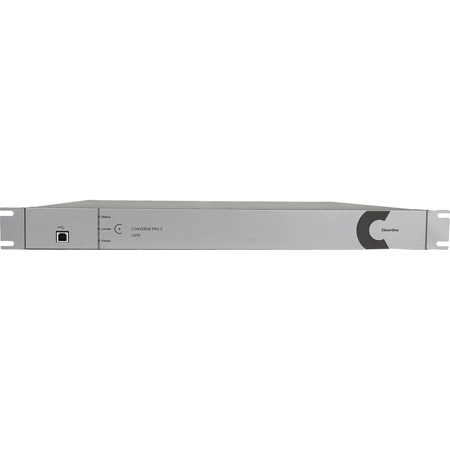

ClearOne CONVERGE Pro 2 DSP Mixer with 12 Mic/Line Inputs (AEC), 8 Mic/Line Outputs, Built-in USB Audio, Built-in VoIP Interface for 2 Lines and Built-in 16x16 Dante

SKU: CO910320003D MFR: 910-3200-003-D
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer's advanced AEC.
  • Connect various devices using the mixer's 12 mic/line inputs for seamless integration.
  • Use the built-in USB audio interface for PC-based conferencing with ease and reliability.
  • Enhance VoIP conferencing with the integrated interface supporting up to two lines.
  • Integrate into Dante audio networks using the built-in Dante for streamlined setups.
  • Manage and control your audio setup via Ethernet, RS-232, and GPIO interfaces.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking ā€œAdd to Cartā€.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Pro 2 Specifications

System
  • Mic/Line inputs

    12

  • Mic/Line outputs

    8

  • AEC

    Yes

  • C-link expansion bus

    Yes

  • P-link peripheral bus

    Yes

  • USB audio interface

    Yes

  • Ethernet, RS-232, GPIO interface

    Yes

Applications

Jump to...
  • Built-in USB for PC-based conferencing

    Yes

  • Built-in Telco for teleconferencing

    No

  • Built-in VoIP for VoIP conferencing

    Yes

  • Microsoft Skype

    For Business audio conferencing: Yes

  • Sound Reinforcement applications

    Yes

  • Built-in Dante for audio networking

    Yes

Peripheral Devices

Jump to...
  • Beamforming Mic Array 2

    Yes

  • DIALOG 20 - Wireless Mic System

    Yes

  • GPIO Expander

    Yes

  • USB Expander

    Yes

Configuration, Management & Control

Jump to...
  • New CONSOLE software

    Yes

  • Dialer app - Win, Mac, iOS, Android

    Yes

  • Touch Panel Controller

    Yes

  • Third-party control modules

    Yes

Mic/line Inputs & Outputs

Jump to...
  • Inputs

    Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Outputs

    Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at +4dBu, line level, 0.006%
    20Hz - 22kHz at -56dBu, mic level, <0.04%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level:

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level:

    0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB Audio

Jump to...
  • Port Type

    USB-B connector

  • Audio

    Digital Audio, 2 x 2 bidirectional channels

  • Sample Rate:

    48kHz

  • Sample Bit Depth:

    24-Bit

  • Compatible

    USB 2.0
    USB 3.0

  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • Audio

    5 Lines

  • Maximum Number of Calls per Line

    Line 1: 5
    Line 2: 5
    Line 3: 4
    Line 4: 3
    Line 5: 2

  • Codec

    G.711 uLaw
    G.711 ALaw
    G.722

  • Skype for Business (S4B)

    Microsoft Skype for Business support (1 client)
    Choose either regular VoIP or S4B through configuration

Ethernet

Jump to...
  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • IP address:

    IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

Dante Audio

Jump to...
  • Port Type:

    RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports

  • Audio

    Digital Audio, 16 x 16 bidirectional channels

  • Sample Rate

    48kHz / 96kHz

  • Sample Bit Depth

    24-Bit

  • Port Type

    DB9 Female

  • Settings

    9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

  • Support

    Serial commands

  • Port Type

    5.08mm Green color Phoenix/Euroblock type male header

  • Support

    Control, Status, Variable Voltage Control

  • Power Pin:

    5V DC at 350mA Power Source

  • Pin 1 to 4

    Open Collector Outputs: 40VDC at 250mA
    Active Outputs (Source/Sink): 5VDC at 25mA
    Logic Inputs: 40.2kOhms pull up
    Variable Voltage Control Inputs: 5VDC max

  • Ground Pin

    GND

USB Control

Jump to...
  • Port Type

    USB-B connector

  • Location

    Front Panel

  • Compatible

    USB 2.0
    USB 3.0

  • Location

    Front Panel

  • Status LED

    Off: Unit still initializing
    Blue - Fast Blinking: Stack Syncing in progress
    Blue - Slow Blinking: Unit not configured
    Blue - Solid: Configured unit
    Red - Fast Blinking: Stack Sync error

  • Locate LED

    Blue - Blinking: Unit "Locate" command received

  • Power LED:

    Blue - Solid: Unit is powered on

Touch Sensor

Jump to...
  • Sensor Type:

    Capacitive Touch Button

  • Location

    Front Panel

Power & Thermal

Jump to...
  • Port Type

    AC Inlet

  • Mains Voltage:

    100-240V AC, 50/60Hz

  • Power Consumption:

    50 Watts Typical

  • Thermal

    170 BTU/Hr Typical

  • Operating Temperature:

    14 deg. F (-10 deg. C) to 104 deg. F (40 deg. C) Ambient Temperature

General

Jump to...
  • RU size

    1 RU

  • Dimensions (WxDxH)

    Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

    With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

  • Weight

    9.3 lbs (4.22kg) (Approximately)

About ClearOne CONVERGE Pro 2

After meticulous engineering, the CONVERGE Pro 2 emerges as the pinnacle of professional audio DSP platforms, tailored for both conferencing and sound reinforcement needs. This robust 128VD model mixer boasts an array of features designed to deliver superior audio performance in any room size, acoustical environment, and application scenario.

Equipped with 12 microphone/line inputs featuring next-generation Acoustic Echo Cancellation (AEC), the CONVERGE Pro 2 ensures crystal-clear audio capture, even in challenging spaces. The 8 microphone/line outputs provide ample connectivity for a variety of audio setups, while the built-in VoIP interface supports up to 5 lines, making it ideal for seamless integration with VoIP conferencing systems, including a dedicated Skype for Business client.

The inclusion of a built-in USB audio interface allows for straightforward PC-based conferencing, ensuring the CONVERGE Pro 2 is at the heart of your unified communications. With the Dante digital audio interface offering a 16x16 channel grid, this mixer excels in audio networking, allowing for high-quality, low-latency audio data transmission over a standard Ethernet network.

The CONVERGE Pro 2's powerful architecture is further enhanced by its reduced footprint and power consumption, making it an eco-friendly choice without compromising on performance. Scalability is a key feature, with the ability to stack units for up to 144 microphone/line inputs, ensuring that the system grows with your needs. The C-Link expansion bus provides 64 channels for comprehensive connectivity, while the P-Link bus facilitates the connection of peripheral devices.

Configuration and management are streamlined through the new CONSOLE software, which simplifies device auto-discovery, system monitoring, and troubleshooting. The MatrixView offers a comprehensive overview of the entire system, while FlowView provides a visual representation of audio signal paths, enhancing the user experience.

The mixer's advanced audio signal processing capabilities include Distributed Echo Cancellation on every microphone input, Noise Cancellation with Adaptive-Ambience, Acoustic Intelligence for rapid convergence, DARE feedback elimination, and sophisticated microphone gating. These features work in concert to deliver unparalleled audio quality for VoIP conferencing, PC-based conferencing, Microsoft Skype for Business audio conferencing, and Dante-enabled audio networking.

Flexible control options are available through the Dialer app, compatible with Windows, Mac, iOS, and Android devices, and a Touch Panel Controller that offers both tabletop and wall mount options. Additionally, the system is compatible with 3rd-party control modules, providing versatility in system integration and operation.

The CONVERGE Pro 2 stands out as a comprehensive solution for professional audio applications, ensuring that every voice is heard with clarity and precision, making it an indispensable tool for businesses and audio professionals seeking top-tier conferencing and sound reinforcement capabilities.

ClearOne CONVERGE Pro 2 Features

  • Professional-grade DSP mixer with 12 Mic/Line inputs featuring advanced Acoustic Echo Cancellation
  • Seamless VoIP and Skype for Business integration with built-in 5-line interface
  • High-fidelity audio networking with built-in 16x16 Dante digital audio interface
  • Scalable system with stacking capability for up to 144 Mic/Line inputs via C-Link
  • Intuitive configuration and real-time management with new CONSOLE software
  • Versatile control options with Dialer app and Touch Panel Controller compatibility

Key Features

  • Experience crystal-clear audio with the CONVERGE Pro 2 DSP mixer's advanced AEC.
  • Connect various devices using the mixer's 12 mic/line inputs for seamless integration.
  • Use the built-in USB audio interface for PC-based conferencing with ease and reliability.
  • Enhance VoIP conferencing with the integrated interface supporting up to two lines.
  • Integrate into Dante audio networks using the built-in Dante for streamlined setups.
  • Manage and control your audio setup via Ethernet, RS-232, and GPIO interfaces.

What's in the box:

  • ClearOne CONVERGE Pro 2 DSP Mixer
  • 6' Grounded Power Cord
  • 12x 3-Position Terminal Block Input Connector (Orange)
  • 8x 3-Position Terminal Block Output Connector (Black)
  • 6-Position Terminal Block GPIO Connector (Green)
  • 18 " RJ-45 to RJ-45 C-Link Cable
  • 7' RJ-45 to RJ-45 VoIP Cable
  • 6' USB Type A to USB Type B Cable
  • 4x Screw/Washer Kit
  • ClearOne Warranty
