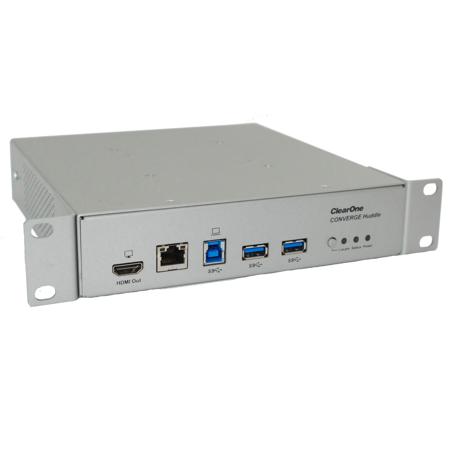

ClearOne CONVERGE Huddle Professional AV DSP Mixer for BYOD Audio and Video Conferencing

SKU: CO9103200701 MFR: 910-3200-701
Earn VIP Reward Points

Key Features

  • Optimize BYOD audio and video conferencing with this professional AV DSP mixer.
  • Experience crystal-clear audio with advanced AEC on 3 balanced mic/line inputs.
  • Connect cameras easily via dual USB 3.0 ports for enhanced video collaboration.
  • Ensure seamless connectivity with RJ-45 ports for Ethernet and network passthrough.
  • Enjoy versatile compatibility with PC, laptop, Mac, and VC appliances via USB 3.0.
  • Simplify setup using PoE; this audio conferencing accessory supports 802.3at.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Huddle Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    BYOD Audio and Video Conferencing

Mic/Line Inputs and Outputs

Jump to...
  • Inputs

    3 Channels balanced audio Mic/Line inputs with AEC, 1 Channel balanced audio Line input without AEC, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Line Outputs

    2 Channel Balanced audio Line outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at 0dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at 0dBu, line level, <0.01%
    20Hz - 22kHz at -56dBu, mic level, <0.2%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level

    0dBu (Nominal), 20dBu (Max)

Headset Audio

Jump to...
  • Port Type

    3.5mm TRRS connector

  • Frequency Response

    Headset In: 20Hz - 22kHz, +/- 3dB
    Headset Out: 20Hz - 22kHz, +/- 1dB

  • THD + N

    Headset In: 20Hz - 22kHz at -7.782dBu nominal, <0.01%
    Headset Out: 20Hz - 22kHz at 0dBu, <0.2%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >95dB

USB 3.0 Type-B

Jump to...
  • Location

    Front Panel

  • Number of Ports

    1

  • Devices

    PC/laptop/Mac/VC Appliance

  • Networks

    For Audio/Video and Network

USB 3.0 Type-A

Jump to...
  • Location

    Front Panel

  • Number of Ports

    2

  • Devices

    Camera

  • Compatible

    USB 2.0

  • USB Power Sourcing

    5V at 500mA each

Network Passthrough

Jump to...
  • Port Type

    RJ-45, 10/100/1000Mbps, passthrough to USB-B 3.0

Expander

Jump to...
  • Ports Type

    RJ-45 (Cat5e or Cat6)

  • Expander Out

    Proprietary Peripheral Bus

  • Cable

    Solid core, factory terminated Cat 5e or 6 cable

  • Distance

    Up to 200' (60m)

  • Device

    Bluetooth Expander (Future)

Amplifier Output

Jump to...
  • Type

    5.08mm Black Header, Male, Phoenix type Euroblock

  • Speaker Output Port

    Dual binding posts

  • Audio

    2 Channels

  • Output Power

    10W Max, 8Ohms load

  • Frequency Response

    20Hz - 22kHz at 10dBu, +/- 0.5dBu

  • THD + N

    20Hz - 22kHz at 10dBu, 1W, <0.3%

  • Dynamic Range

    20Hz - 22kHz at 20dB, >102dB with 20kHz digital low pass filter

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor, < -70dB

  • Port Type

    HDMI output connector

  • Location

    Front Panel

  • Resolutions

    1600 x 1200p at 60Hz, 4: 3 ratio
    1920 x 1200p at 60Hz, 16: 10 ratio
    2560 x 1440p at 60Hz, 16: 9 ratio

  • LEDs

    Location: Front Panel
    Status LED: Blue / Red
    Locate LED: Blue / Red
    Power LED: Blue

Ethernet

Jump to...
  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

POE, Power and Thermal

Jump to...
  • Power Type

    PoE

  • Port Type

    RJ-45

  • Power Source

    PoE power injector (Midspan), or PoE Ethernet
    Network Switch (Endspan)
    IEEE 802.3at, Mode A or B

  • Mains Voltage

    100-240V AC, 50/60Hz

  • Power Consumption

    34 Watts Typical

  • Thermal

    116 BTU/Hr Typical

  • Operating Temperature

    Ambient Temperature: 14 to 104 deg. F (-10 to 40 deg. C)

  • Factory Reset

    Press continuously for approx. 10 seconds

General

Jump to...
  • Dimensions (WxDxH)

    7.52 x 7.83 x 1.73" (19.10 x 19.89 x 4.39cm)

  • Weight

    2.9 lbs (1.32kg) (Approximately)

About ClearOne CONVERGE Huddle

Become a master of professional audio and video conferencing with the advanced CONVERGE Huddle Professional AV DSP Mixer. This high-quality, innovative device is specifically designed to meet the AV needs of huddle rooms and similar-sized meeting spaces in today's digitally connected world.

The CONVERGE Huddle allows seamless audio and video collaboration through a single cable connection to users' Bring Your Own Devices (BYOD), such as laptops, tablets, and smartphones. This sophisticated mixer supports a wide range of applications including Spontania, Skype, and Skype for Business, ensuring you stay connected no matter your preferred platform.

Experience superior audio signal processing with next-generation Acoustic Echo Cancellation processing, Distributed Echo Cancellation on every mic input, and Noise Cancellation with adaptive-ambience. The Acoustic Intelligence feature ensures faster convergence, delivering clear, crisp audio for all your conferencing needs.

The user-friendly Pro CONSOLE software and pre-configured template make configuration simple, while the auto-discovery of devices and system monitoring and troubleshooting capabilities ensure smooth operation.

The CONVERGE Huddle offers unmatched flexibility, being compatible with ClearOne or any 3rd party camera, mic, or speaker. Its compact form factor allows for flexible mounting under a conference table, in a closet, rack, or on the wall, or VESA mounting, making it a versatile addition to any workspace.

With the CONVERGE Huddle, you can enjoy clutter-free connections, connecting your laptop via a single USB 3.0 connection, and your display screen, camera, mic, and speaker. Future Bluetooth connectivity will also allow for easy connection of PC and mobile devices.

Whether you're conducting audio conferencing, video conferencing, or presenting in workspaces and huddle rooms, the CONVERGE Huddle Professional AV DSP Mixer is the ultimate solution for your BYOD audio and video conferencing needs.

ClearOne CONVERGE Huddle Features

  • Advanced professional AV DSP Mixer designed for superior audio and video conferencing
  • Seamless integration with BYOD technology including laptops, tablets, and smartphones
  • Supports a wide range of applications including Spontania, Skype, and Skype for Business
  • Features next-generation Acoustic Echo Cancellation processing and Noise Cancellation with adaptive-ambience
  • User-friendly Pro CONSOLE software for easy configuration and system monitoring
  • Compact, flexible design compatible with ClearOne or any 3rd party camera, mic, or speaker

Key Features

  • Optimize BYOD audio and video conferencing with this professional AV DSP mixer.
  • Experience crystal-clear audio with advanced AEC on 3 balanced mic/line inputs.
  • Connect cameras easily via dual USB 3.0 ports for enhanced video collaboration.
  • Ensure seamless connectivity with RJ-45 ports for Ethernet and network passthrough.
  • Enjoy versatile compatibility with PC, laptop, Mac, and VC appliances via USB 3.0.
  • Simplify setup using PoE; this audio conferencing accessory supports 802.3at.
