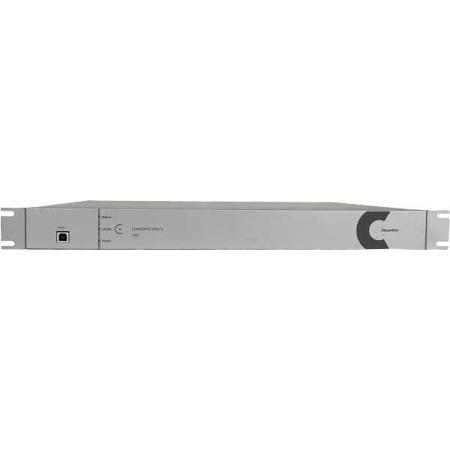

ClearOne CONVERGE Pro 2 DSP Mixer with 12 Mic/Line Inputs (Sound Reinforcement), 8 Mic/Line Outputs, Built-in USB Audio and Built-in 16x16 Dante

SKU: CO910320101D MFR: 910-3200-101-D
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this ClearOne DSP mixer's 12 mic/line inputs.
  • Enjoy seamless conferencing via the built-in USB audio interface; easy connectivity.
  • Enhance sound reinforcement applications with 8 mic/line outputs for crystal-clear audio.
  • Integrate effortlessly into Dante audio networks using the built-in 16x16 Dante support.
  • Control your audio setup via Ethernet, RS-232, and GPIO interfaces for total command.
  • Expand your audio system using P-link peripheral bus for Beamforming Mic Array 2 units.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne CONVERGE Pro 2 Specifications

System
  • Mic/Line inputs

    12

  • Mic/Line outputs

    8

  • AEC

    No

  • C-link expansion bus

    Yes

  • P-link peripheral bus

    Yes

  • USB audio interface

    Yes

  • Ethernet, RS-232, GPIO interface

    Yes

Applications

Jump to...
  • Built-in USB for PC-based conferencing

    No

  • Built-in Telco for teleconferencing

    No

  • Built-in VoIP for VoIP conferencing

    No

  • Sound Reinforcement applications

    Yes

  • Built-in Dante for audio networking

    Yes

Peripheral Devices

Jump to...
  • Beamforming Mic Array 2

    No

  • DIALOG 20 - Wireless Mic System

    Yes

  • GPIO Expander

    Yes

  • USB Expander

    Yes

Configuration, Management & Control

Jump to...
  • New CONSOLE software

    Yes

  • Dialer app - Win, Mac, iOS, Android

    Yes

  • Touch Panel Controller

    Yes

  • Third-party control modules

    Yes

Mic/line Inputs & Outputs

Jump to...
  • Inputs

    Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Outputs

    Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block

  • Frequency Response

    20Hz - 22kHz at +4dBu, +/- 0.5dBu

  • EIN (Equivalent Input Noise)

    20kHz BW, max gain, Rs = 150Ohms, -126dBu

  • THD + N

    20Hz - 22kHz at +4dBu, line level, 0.006%
    20Hz - 22kHz at -56dBu, mic level, <0.04%

  • Dynamic Range

    20Hz - 20kHz at 0dB, >105dB

  • Crosstalk (Mic/Line)

    Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB

  • Input Impedance

    Balanced (line to ground), 2.2kOhms, 1%

  • Nominal Input Level

    Adjustable -56dB to 0dB, 7dB step coarse gain

  • Maximum Input Level

    -65dBu to 20dBu

  • Phantom Power

    48V, Impedance 6.81kOhms

  • Output Impedance

    Balanced (line to ground), 95Ohms, 1%

  • Output Level

    0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

Dante Audio

Jump to...
  • Port Type

    RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports

  • Audio

    Digital Audio, 16 x 16 bidirectional channels

  • Sample Rate

    48kHz / 96kHz

  • Sample Bit Depth

    24-Bit

Ethernet

Jump to...
  • Port Type

    RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation

  • IP address

    IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

  • Port Type

    DB9 Female

  • Settings

    9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control

  • Support

    Serial commands

  • Port Type

    5.08mm Green color Phoenix/Euroblock type male header

  • Support

    Control, Status, Variable Voltage Control

  • Power Pin

    5V DC at 350mA Power Source

  • Pin 1 to 4

    Open Collector Outputs: 40VDC at 250mA
    Active Outputs (Source/Sink): 5VDC at 25mA
    Logic Inputs: 40.2kOhms pull up
    Variable Voltage Control Inputs: 5VDC max

  • Ground Pin

    GND

USB Control

Jump to...
  • Port Type

    USB-B connector

  • Location

    Front Panel

  • Compatible

    USB 2.0
    USB 3.0

  • Location

    Front Panel

  • Status LED

    Off: Unit still initializing
    Blue - Fast Blinking: Stack Syncing in progress
    Blue - Slow Blinking: Unit not configured
    Blue - Solid: Configured unit
    Red - Fast Blinking: Stack Sync error

  • Locate LED

    Blue - Blinking: Unit "Locate" command received

  • Power LED

    Blue - Solid: Unit is powered on

Touch Sensor

Jump to...
  • Sensor Type

    Capacitive Touch Button

  • Location

    Front Panel

Power & Thermal

Jump to...
  • Port Type

    AC Inlet

  • Mains Voltage

    100-240V AC, 50/60Hz

  • Power Consumption

    50 Watts Typical

  • Thermal

    170 BTU/Hr Typical

  • Operating Temperature

    -10 to 40 deg. C (14 to 104 deg. F) Ambient Temperature

General

Jump to...
  • RU size

    1 RU

  • Dimensions (WxDxH)

    Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)

    With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)

  • Weight

    9.3 lbs (4.22kg) (Approximately)

About ClearOne CONVERGE Pro 2

For professionals seeking superior audio performance, the ClearOne CONVERGE Pro 2 DSP Mixer is a cutting-edge solution. This advanced professional audio DSP platform is designed for a wide range of applications, including conferencing, sound reinforcement, and audio distribution. It delivers exceptional performance in any room size or audio environment.

The 128SRD model of the CONVERGE Pro 2 DSP Mixer boasts 12 Mic/Line inputs and 8 Mic/Line outputs, offering a versatile setup for various audio needs. It also features built-in USB audio, GPIO, RS232, and IP control interfaces, providing a wide range of connectivity options.

This mixer is equipped with P-Link and C-Link expansion buses, allowing for system expansion and scalability. With the ability to stack units up to 144 Mic/Line inputs, this mixer can adapt to growing audio requirements. The inclusion of Dante digital audio interfaces further enhances its networking capabilities.

Optimized to work seamlessly with the new DIALOG 20 2-Channel Wireless Microphone System, the CONVERGE Pro 2 128SRD ensures high-quality audio transmission. Its powerful architecture includes built-in Dante for networked audio, reducing both footprint and power consumption.

The mixer's configuration and management are simplified with the new CONSOLE software, which enables auto-discovery of devices, MatrixView for entire system visualization, and FlowView for visualized audio signal paths. This software also aids in system monitoring and troubleshooting, ensuring reliable performance.

The CONVERGE Pro 2 DSP Mixer is equipped with Acoustic Intelligence for enhanced audio quality, DARE feedback elimination for clear sound, and advanced microphone gating. These features make it an ideal choice for sound reinforcement applications.

With its flexible control options, including 3rd-party control modules, this mixer can be easily integrated into existing systems. Experience the power and versatility of the ClearOne CONVERGE Pro 2 DSP Mixer, a solution designed to meet the demanding needs of professional audio applications.

ClearOne CONVERGE Pro 2 Features

  • Advanced professional audio DSP platform for conferencing, sound reinforcement, and audio distribution
  • Equipped with 12 Mic/Line inputs and 8 Mic/Line outputs for versatile audio setup
  • Features built-in USB audio, GPIO, RS232, and IP control interfaces for broad connectivity
  • Integrated with Dante digital audio interfaces for enhanced networked audio
  • Comes with new CONSOLE software for easy configuration, management, and troubleshooting
  • Enhanced audio quality with Acoustic Intelligence, DARE feedback elimination, and advanced microphone gating

Key Features

  • Experience pristine audio with this ClearOne DSP mixer's 12 mic/line inputs.
  • Enjoy seamless conferencing via the built-in USB audio interface; easy connectivity.
  • Enhance sound reinforcement applications with 8 mic/line outputs for crystal-clear audio.
  • Integrate effortlessly into Dante audio networks using the built-in 16x16 Dante support.
  • Control your audio setup via Ethernet, RS-232, and GPIO interfaces for total command.
  • Expand your audio system using P-link peripheral bus for Beamforming Mic Array 2 units.

What's in the box:

  • ClearOne CONVERGE Pro 2 DSP Mixer
  • 6' Grounded Power Cord
  • 12x 3-Position Terminal Block Input Connector (Orange)
  • 8x 3-Position Terminal Block Output Connector (Black)
  • 6-Position Terminal Block GPIO Connector (Green)
  • 18 " RJ-45 to RJ-45 C-Link Cable
  • 6' USB Type A to USB Type B Cable
  • 4x Screw/Washer Kit
  • ClearOne Warranty
