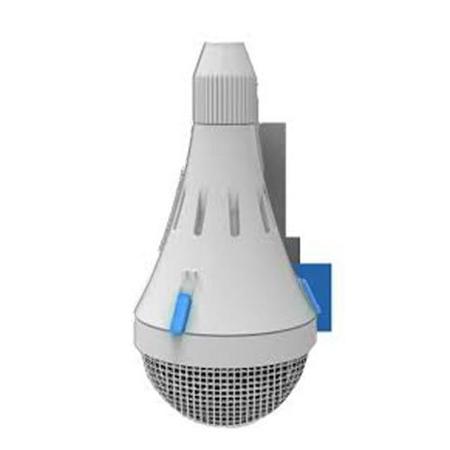

ClearOne Tri-Element Ceiling Mic Array Capsule, Attached with 7' White Cable
See all ClearOne items
Just Reduced

ClearOne Tri-Element Ceiling Microphone Array Capsule, Attached with 7' White Drop-Down Cable

SKU: CO910620101W MFR: 910-6200-101-W
Be the first to review this itemAsk a Question
$699.00
OR
$117/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this ceiling microphone array, perfect for conference rooms.
  • This condenser microphone's 360° coverage ensures everyone is heard in large meeting spaces.
  • Experience superior sound; the high signal-to-noise ratio delivers professional quality audio.
  • Enjoy easy setup; this microphone array uses PoE for power and data over a single cable.
  • The durable design and RF immunity of this microphone ensures reliable performance every time.
  • This ceiling microphone is plenum-rated, ensuring safe installation in any professional setting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ClearOne Ceiling Mic Array Capsule Specifications

Acoustic

Acoustic

Jump to...

  • Element

    Condenser (Electret)

  • Polar Pattern

    3 X 120 Degree Cardioid Patterns, covering 360 Degree

  • Signal/Noise Ratio

    74 dBA @ 1 kHz

  • Frequency Response

    70 Hz ½ 20 kHz

  • Sensitivity

    -37dB @ 1 kHz (0 dB = 1V / Pa)

  • Max Sound Pressure Level

    120 dB SPL

  • RF Immunity

    100% immunity, fully balanced twisted pair throughout

Power & Thermal

Jump to...

  • Power Type

    PoE

  • Port Type

    RJ-45

  • Power Source

    PoE power injector, PoE Ethernet Network Switch

  • PoE In

    IEEE 802.3af CLASS III, Mode A or B
    Modes A and B refer to whether power can be supplied over data pairs in the CAT5 cable. Mode A means power can be supplied by either spare or data pairs, and Mode B means power can only be supplied by spare pairs.

  • Mains Voltage

    100-240V AC, 50/60Hz

  • Impedance

    200 Ohms

  • Power Consumption

    8.5 Watts Typical with 4 Mic Capsules

  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

LED

Jump to...

  • LED Indicators

    (Red/Blue = GPIO Controlled)

General

Jump to...

  • Finish

    White

  • Compliance

    FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)

  • Dimensions (W x D x H)

    1.7 x 1.7 x 86.6" (42 x 42 x 2200mm)

  • Weight

    6 oz (170g)

Other

Jump to...

  • UPC Code

    00671010011739

About ClearOne Ceiling Mic Array Capsule

The Ceiling Microphone Array Analog-X is the newest addition to our ceiling mic lineup and most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications.

Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech-intelligibility, and can daisy-chain for easy installation.

It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.

ClearOne Ceiling Mic Array Capsule Features

  • Tri-element ceiling microphone array
  • Full 360-degree coverage
  • Superior audio quality with wide bandwidth and high SNR
  • Optimized for speech-intelligibility
  • LED indicators for On/Mute
  • Up to 4 Mic arrays (12 channels) in one combined system
  • Numbered microphone elements for easy identification
  • 100% shielding for RF and other interferences
  • Sleek, unobtrusive design
  • Easily adjustable for desired height (0 feet to 7 feet)
  • Built-in Dante audio networking interface for up to 12 channels
  • Works with ClearOne and other 3rd party DSP mixers

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this ceiling microphone array, perfect for conference rooms.
  • This condenser microphone's 360° coverage ensures everyone is heard in large meeting spaces.
  • Experience superior sound; the high signal-to-noise ratio delivers professional quality audio.
  • Enjoy easy setup; this microphone array uses PoE for power and data over a single cable.
  • The durable design and RF immunity of this microphone ensures reliable performance every time.
  • This ceiling microphone is plenum-rated, ensuring safe installation in any professional setting.

What's in the box:

  • Tri-Element Ceiling Microphone Array Capsule
  • ClearOne 1 Year Limited Warranty
