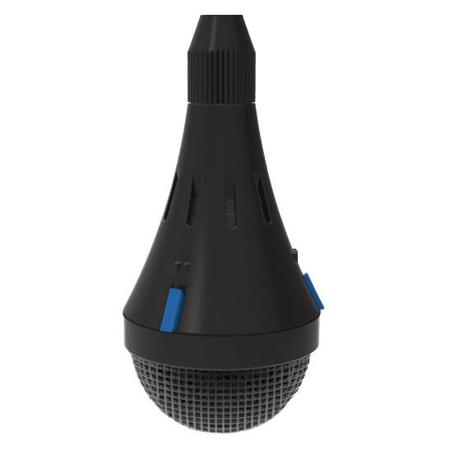

ClearOne Ceiling Mic Array Analog-X 9-Channel 3-Arrays, Includes 3x Black Mic Capsules, 3x Analog Junction Boxes and 1x Analog Interface Box

SKU: CO93062309BA MFR: 930-6200-309-B-A
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this 9-channel ceiling microphone array system.
  • Enjoy full room coverage with three 120-degree cardioid patterns for complete 360° audio.
  • Ensure top-notch sound quality with a wide 70 Hz - 20 kHz frequency response range.
  • Experience hassle-free setup with included analog junction and interface boxes.
  • Benefit from high RF immunity, ensuring clean audio in any environment, always.
  • Perfect for conference rooms, providing professional audio clarity for all participants.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne Mic Array Analog-X Specifications

Acoustic Characteristics

Acoustic Characteristics

Jump to...
  • Element

    Condenser (Electret)

  • Polar Pattern

    3x 120 deg. Cardioid Patterns, covering 360 deg.

  • Signal/Noise Ratio

    74 dBA at 1 kHz

  • Frequency Response

    70 Hz - 20 kHz

  • Sensitivity

    -37dB at 1 kHz (0 dB = 1V / Pa)

  • Max Sound Pressure Level

    120 dB SPL

  • RF Immunity

    100% immunity, fully balanced twisted pair throughout

Power and Thermal

Jump to...
  • DC Power

    9Vdc at 0.5A

  • Impedance

    200Ohms

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Junction Box to Interface Box

    RJ45 CAT5e/CAT6 24AWG, Max 200' (60.96m)

  • Junction Box to Mic Capsule

    Proprietary Mic Array cable, Max 7' (2.13m)

LED Component

Jump to...
  • Indicator

    Mic Capsule: Mute (Red/Blue = GPIO Controlled)

    Analog-X Interface: Power (On=Blue, Off=Not Illuminated)
    Analog-In RJ45 Mute (Red/Blue = GPIO Controlled)

    Analog-X Junction: Power (On=Blue, Off=Not Illuminated)
    Analog-Out RJ45 Mute (Red/Blue = GPIO Controlled)

General

Jump to...
  • Compliance

    FCC, IC, CE, RoHS, WEEE, UL2043 (plenum rated)

  • Dimensions (WxDxH)

    Mic Capsule: 1.7 x 1.7 x 86.6" (4.32 x 4.32 x 219.96cm)
    Analog-X Interface: 6.8 x 4.1 x 1.7" (17.27 x 10.41 x 4.32cm)
    Analog-X Junction: 4 x 3.7 x 1.4" (10.16 x 9.40 x 3.56cm)

  • Weight

    Mic Capsule: 6 oz (170.10g)
    Analog-X Interface: 13 oz (368.54g)
    Analog-X Junction: 6.5 oz (184.27g)

  • UPC Code

    00671010011876

About ClearOne Mic Array Analog-X

If you're seeking a professional-grade audio solution for your conferencing needs, the Ceiling Mic Array Analog-X represents the pinnacle of innovation in ceiling-mounted microphone technology. This high-quality, 9-channel 3-array microphone system is the latest and most advanced addition to our esteemed ceiling mic lineup, designed specifically for conferencing and sound reinforcement applications.

Crafted with durability in mind, the Ceiling Mic Array Analog-X boasts an impressive array of features, including three sleek black mic capsules that ensure a discreet presence in any professional setting. The inclusion of three analog junction boxes and a single analog interface box allows for seamless integration with digital signal processors, making it a versatile choice for a variety of audio setups.

Advanced in its design, this microphone array is engineered to deliver unparalleled speech intelligibility, capturing clear audio from every corner of the room. Its 100% RF immunity guarantees that your communications remain free from interference, ensuring that every word is heard without any unwanted noise.

The Ceiling Mic Array Analog-X is not only flexible and easy to use but also supports daisy-chaining for straightforward installation, making it an ideal companion to all DSP mixers, including those from third-party manufacturers. Its innovative tri-element design allows for comprehensive sound coverage, making it perfect for a wide range of applications such as boardrooms, conference rooms, huddle rooms, training rooms, lecture halls, courtrooms, and telemedicine facilities.

Choose the Ceiling Mic Array Analog-X for a durable, high-quality, and professional audio experience that stands out in the competitive market of conference microphone systems. Trust in the expertise of ClearOne, a leader in the professional audio industry, to elevate your audio communications to the next level.

ClearOne Mic Array Analog-X Features

  • Tri-element ceiling microphone array
  • Full 360-degree coverage
  • Superior audio quality with wide bandwidth and high SNR
  • Optimized for speech-intelligibility
  • LED indicators for On/Mute
  • 3 Mic arrays (9 channels) in one combined system
  • Numbered microphone elements for easy identification
  • 100% shielding for RF and other interferences
  • Sleek, unobtrusive design
  • Easily adjustable for desired height (0 feet to 7 feet)
  • Works with ClearOne and other 3rd party DSP mixers

Key Features

  • Achieve crystal-clear audio with this 9-channel ceiling microphone array system.
  • Enjoy full room coverage with three 120-degree cardioid patterns for complete 360° audio.
  • Ensure top-notch sound quality with a wide 70 Hz - 20 kHz frequency response range.
  • Experience hassle-free setup with included analog junction and interface boxes.
  • Benefit from high RF immunity, ensuring clean audio in any environment, always.
  • Perfect for conference rooms, providing professional audio clarity for all participants.

What's in the box:

  • ClearOne 3x Black Mic Capsule with 7' Drop-Down Cables
  • 3x Analog Junction Boxes
  • 1x Analog Interface Box and Power Supply
  • ClearOne Warranty
