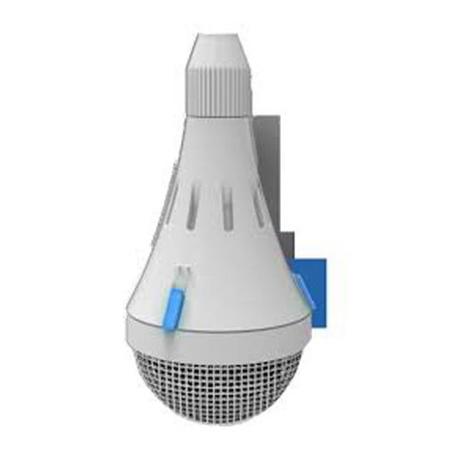

ClearOne Ceiling Mic Array Analog-X 9-Channel 3-Arrays, 3x White Mic Capsules
See all ClearOne items

ClearOne Ceiling Mic Array Analog-X 9-Channel 3-Arrays, Includes 3x White Mic Capsules, 3x Analog Junction Boxes and 1x Analog Interface Box

SKU: CO93062309WA MFR: 930-6200-309-W-A
Be the first to review this itemAsk a Question
$3,018.00
OR
$252/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this 9-channel ClearOne ceiling mic array system.
  • Enjoy full room coverage with the three 120° cardioid patterns of this mic array.
  • Ensure top-notch sound quality with a signal-to-noise ratio of 74 dBA at 1 kHz.
  • Experience versatile connectivity using RJ45 CAT5e/CAT6 cables up to 200 feet.
  • Benefit from complete RF immunity, thanks to fully balanced twisted pair cabling.
  • Easily monitor mute status with the mic capsule's intuitive red/blue LED indicator.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ClearOne Mic Array Analog-X Specifications

Acoustic Characteristics

Acoustic Characteristics

Jump to...

  • Element

    Condenser (Electret)

  • Polar Pattern

    3x 120 deg. Cardioid Patterns, covering 360 deg.

  • Signal/Noise Ratio

    74 dBA at 1 kHz

  • Frequency Response

    70 Hz - 20 kHz

  • Sensitivity

    -37dB at 1 kHz (0 dB = 1V / Pa)

  • Max Sound Pressure Level

    120 dB SPL

  • RF Immunity

    100% immunity, fully balanced twisted pair throughout

Power and Thermal

Jump to...

  • DC Power

    9Vdc at 0.5A

  • Impedance

    200Ohms

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

Cables

Jump to...

  • Junction Box to Interface Box

    RJ45 CAT5e/CAT6 24AWG, Max 200' (60.96m)

  • Junction Box to Mic Capsule

    Proprietary Mic Array cable, Max 7' (2.13m)

LED Component

Jump to...

  • Indicator

    Mic Capsule: Mute (Red/Blue = GPIO Controlled)

    Analog-X Interface: Power (On=Blue, Off=Not Illuminated)
    Analog-In RJ45 Mute (Red/Blue = GPIO Controlled)

    Analog-X Junction: Power (On=Blue, Off=Not Illuminated)
    Analog-Out RJ45 Mute (Red/Blue = GPIO Controlled)

General

Jump to...

  • Compliance

    FCC, IC, CE, RoHS, WEEE, UL2043 (plenum rated)

  • Dimensions (WxDxH)

    Mic Capsule: 1.7 x 1.7 x 86.6" (4.32 x 4.32 x 219.96cm)
    Analog-X Interface: 6.8 x 4.1 x 1.7" (17.27 x 10.41 x 4.32cm)
    Analog-X Junction: 4 x 3.7 x 1.4" (10.16 x 9.40 x 3.56cm)

  • Weight

    Mic Capsule: 6 oz (170.10g)
    Analog-X Interface: 13 oz (368.54g)
    Analog-X Junction: 6.5 oz (184.27g)

About ClearOne Mic Array Analog-X

The Ceiling Microphone Array Analog-X is our newest addition to our ceiling mic lineup and our most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications. Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech-intelligibility and can daisy-chain for easy installation. It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.

Applications
• Boardrooms
• Conference Rooms
• Huddle Rooms
• Training Rooms
• Lecture Halls
• Courtrooms
• Telemedicine Facilities

ClearOne Mic Array Analog-X Features

  • Tri-element ceiling microphone array
  • Full 360-degree coverage
  • Superior audio quality with wide bandwidth and high SNR
  • Optimized for speech-intelligibility
  • LED indicators for On/Mute
  • 3 Mic arrays (9 channels) in one combined system
  • Numbered microphone elements for easy identification
  • 100% shielding for RF and other interferences
  • Sleek, unobtrusive design
  • Easily adjustable for desired height (0 feet to 7 feet)
  • Works with ClearOne and other 3rd party DSP mixers

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear audio with this 9-channel ClearOne ceiling mic array system.
  • Enjoy full room coverage with the three 120° cardioid patterns of this mic array.
  • Ensure top-notch sound quality with a signal-to-noise ratio of 74 dBA at 1 kHz.
  • Experience versatile connectivity using RJ45 CAT5e/CAT6 cables up to 200 feet.
  • Benefit from complete RF immunity, thanks to fully balanced twisted pair cabling.
  • Easily monitor mute status with the mic capsule's intuitive red/blue LED indicator.

What's in the box:

  • ClearOne 3x White Mic Capsule with 7' Drop-Down Cables
  • 3x Analog Junction Boxes
  • 1x Analog Interface Box and Power Supply
  • ClearOne Warranty
