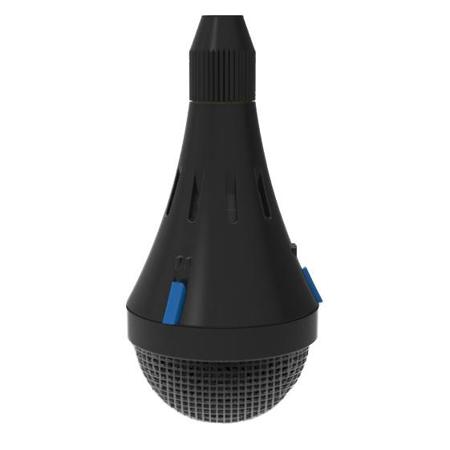

ClearOne Ceiling Mic Array Analog-X 12-Channel 4-Arrays, Includes 4x Black Mic Capsules, 4x Analog Junction Boxes and 1x Analog Interface Box

SKU: CO93062412BA MFR: 930-6200-412-B-A
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this 12-channel ceiling mic array for conferencing.
  • Enjoy full coverage with 4 microphone arrays, each equipped with three 120° cardioid patterns.
  • This audio system accessory ensures 100% RF immunity for uninterrupted conference calls.
  • Experience wide frequency response (70 Hz - 20 kHz) for natural, high-quality sound.
  • Each condenser mic capsule includes a mute indicator for easy control during meetings.
  • Integrate easily with included analog junction and interface boxes for simple setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ClearOne Mic Array Analog-X Specifications

Acoustic Characteristics

Acoustic Characteristics

Jump to...
  • Element

    Condenser (Electret)

  • Polar Pattern

    3x 120 deg. Cardioid Patterns, covering 360 deg.

  • Signal/Noise Ratio

    74 dBA at 1 kHz

  • Frequency Response

    70 Hz - 20 kHz

  • Sensitivity

    -37dB at 1 kHz (0 dB = 1V / Pa)

  • Max Sound Pressure Level

    120 dB SPL

  • RF Immunity

    100% immunity, fully balanced twisted pair throughout

Power and Thermal

Jump to...
  • DC Power

    9Vdc at 0.5A

  • Impedance

    200Ohms

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Junction Box to Interface Box

    RJ45 CAT5e/CAT6 24AWG, Max 200' (60.96m)

  • Junction Box to Mic Capsule

    Proprietary Mic Array cable, Max 7' (2.13m)

LED Component

Jump to...
  • Indicator

    Mic Capsule: Mute (Red/Blue = GPIO Controlled)

    Analog-X Interface: Power (On=Blue, Off=Not Illuminated)
    Analog-In RJ45 Mute (Red/Blue = GPIO Controlled)

    Analog-X Junction: Power (On=Blue, Off=Not Illuminated)
    Analog-Out RJ45 Mute (Red/Blue = GPIO Controlled)

General

Jump to...
  • Compliance

    FCC, IC, CE, RoHS, WEEE, UL2043 (plenum rated)

  • Dimensions (WxDxH)

    Mic Capsule: 1.7 x 1.7 x 86.6" (4.32 x 4.32 x 219.96cm)
    Analog-X Interface: 6.8 x 4.1 x 1.7" (17.27 x 10.41 x 4.32cm)
    Analog-X Junction: 4 x 3.7 x 1.4" (10.16 x 9.40 x 3.56cm)

  • Weight

    Mic Capsule: 6 oz (170.10g)
    Analog-X Interface: 13 oz (368.54g)
    Analog-X Junction: 6.5 oz (184.27g)

About ClearOne Mic Array Analog-X

Enhance your audio conferencing and sound reinforcement applications with the Ceiling Microphone Array Analog-X, the latest and most technologically advanced addition to our ceiling microphone array collection. This 12-channel, 4-array system includes 4 black mic capsules, 4 analog junction boxes, and 1 analog interface box, offering a comprehensive solution for superior sound quality in various settings.

Designed with a focus on flexibility and ease of use, the Ceiling Mic Array Analog-X is 100% RF immune, ensuring uninterrupted, crystal-clear audio performance. It's specifically optimized for speech intelligibility, making it an ideal choice for environments where clear communication is paramount.

One of the standout features of this ceiling microphone array is its daisy-chain capability, which simplifies the installation process. This feature, combined with its sleek design, makes it a seamless addition to any room, enhancing both functionality and aesthetics.

While it perfectly complements our range of DSP mixers, the Ceiling Mic Array Analog-X is also compatible with 3rd party DSP mixers, offering versatility and convenience.

Whether you're outfitting boardrooms, conference rooms, huddle rooms, training rooms, lecture halls, courtrooms, or telemedicine facilities, the Ceiling Microphone Array Analog-X delivers exceptional sound quality, making every conversation clearer and more productive.

ClearOne Mic Array Analog-X Features

  • Tri-element ceiling microphone array
  • Full 360-degree coverage
  • Superior audio quality with wide bandwidth and high SNR
  • Optimized for speech-intelligibility
  • LED indicators for On/Mute
  • 4 Mic arrays (12 channels) in one combined system
  • Numbered microphone elements for easy identification
  • 100% shielding for RF and other interferences
  • Sleek, unobtrusive design
  • Easily adjustable for desired height (0 feet to 7 feet)
  • Works with ClearOne and other 3rd party DSP mixers

Key Features

  • Achieve crystal-clear audio with this 12-channel ceiling mic array for conferencing.
  • Enjoy full coverage with 4 microphone arrays, each equipped with three 120° cardioid patterns.
  • This audio system accessory ensures 100% RF immunity for uninterrupted conference calls.
  • Experience wide frequency response (70 Hz - 20 kHz) for natural, high-quality sound.
  • Each condenser mic capsule includes a mute indicator for easy control during meetings.
  • Integrate easily with included analog junction and interface boxes for simple setup.

What's in the box:

  • ClearOne 4x Black Mic Capsule with 7' Drop-Down Cables
  • 4x Analog Junction Boxes
  • 1x Analog Interface Box and Power Supply
  • ClearOne Warranty
