American Power Conversion (APC) APC Smart-UPS 5000VA 208V Rackmount/Tower
See all American Power Conversion (APC) items

American Power Conversion (APC) Smart-UPS 5000VA 208V Rackmount/Tower, Uninterruptible Power Supply (UPS) for Network and Server, 4x Outlets, Serial Communication

SKU: COCAPSMUPS
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-09-18T20:00:00

Rated 5 out of 5

Built to last

Solid product built for server rack. Reliable and priced appropriately. Would recommend

APC4U

American Power Conversion (APC) APC Smart-UPS 5000VA 208V Rackmount/Tower Specifications

  • Input

    Nominal Input Voltage: 208V
    Input Frequency: 50/60Hz +/-5Hz (manual switch)
    Input Connections: NEMA L6-30P
    Cord Length: 8' (2.4 m)
    Input voltage range for main operations: 141-255V
    Input voltage adjustable range for mains operation: 131-268V

  • Output

    Output Power Capacity: 4000W / 5000VA
    Max Configurable Power: 4000W / 5000VA
    Nominal Output Voltage: 208V
    Output Voltage Distortion: <5% at full load
    Output Frequency (sync to mains): 47-53Hz for 50Hz nominal, 57-63Hz for 60Hz nominal
    Crest Factor: Up to 5:1
    Waveform Type: Sine wave
    Output Connections: 2x NEMA L6-20R, 2x NEMA L6-30R

  • Surge Energy Rating

    480 Joules

  • Battery

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
    Replacement: RBC55

  • Typical Backup Runtime

    Half Load: 26.7 minutes (2000W)
    Full Load: 9.4 minutes (4000W)

  • Audible Alarm

    On battery, Low battery, Configurable delays

  • Certifications

    CSA, FCC Part 15 Class A, UL 1778

  • Compatibility

    Windows 98, Me, 2000, XP, Vista, 2003; Mac OS X

  • Environmental Requirements: Operating

    Temperature: 32-113deg.F (0-45deg.C)
    Humidity: 0%
    Altitude: 0-10,000' (0-3000 m)

  • Environmental Requirements: Storage

    Temperature: 23-131deg.F (-5-555deg.C)
    Humidity: 0%
    Altitude: 0-50,000' (0-15,000 m)

  • Dimensions (W x H x D)

    19 x 8.75 x 26" (48.3 x 22.2 x 66cm)

  • Weight

    215 lb (97.7kg)

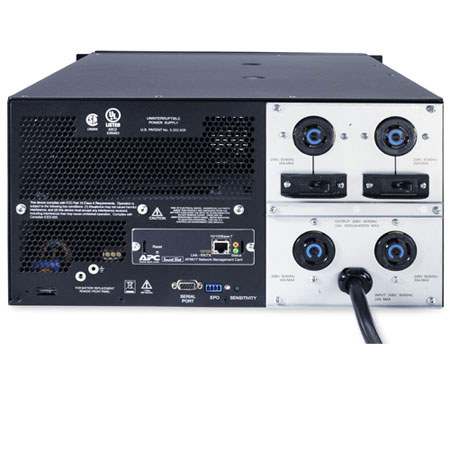

About American Power Conversion (APC) APC Smart-UPS 5000VA 208V Rackmount/Tower

The Smart-UPS 5000VA 208V Rackmount/Tower from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe. The UPS can communicate with a computer via serial for automatic shutdown in the event of a power failure. It features 4 outlets, all of which provide battery backup. Its battery provides 26.7 minutes of run time at half-load capacity.

American Power Conversion (APC) APC Smart-UPS 5000VA 208V Rackmount/Tower Features

  • Battery delivers 26.7 minutes of runtime at half-load and 9.4 minutes at full-load
  • SmartSlot expansion capability
  • Audible alarm lets you know when there is a power problem
  • Communicates with a computer via a serial port
  • Rackmount design for professional installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Battery delivers 26.7 minutes of runtime at half-load & 9.4 minutes at full-load
  • SmartSlot expansion capability
  • Audible alarm lets you know when there is a power problem
  • Communicates with a computer via a serial port
  • Rackmount design for professional installation

What's in the box:

  • APC Smart-UPS 5000VA 208V Rackmount/Tower
  • Software CD-ROM
  • Rack Mounting Support Rails
  • RS-232 Cable
  • Web/SNMP Management Card
  • User Manual
  • APC 2 Years Repair or Replace Warranty
