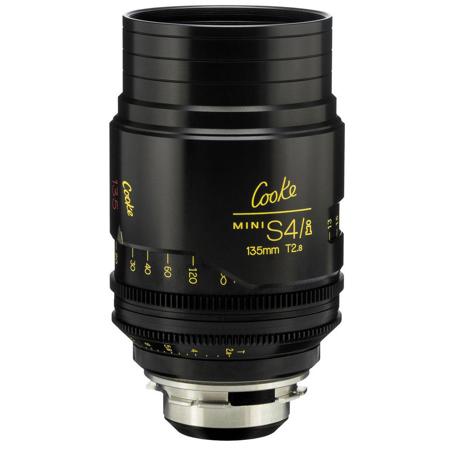

Cooke 135mm T2.8 miniS4/i Cine Lens for PL Mount, Meter

SKU: COCKEP135M MFR: CKEP 135M
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with this 135mm Cooke Cine Lens, perfect for Super 35 format.
  • Achieve beautiful bokeh with the wide T2.8 aperture, ideal for cinematic storytelling.
  • Enjoy precise manual focus with clearly marked scales, ensuring sharp, detailed shots.
  • Benefit from robust build quality, designed for the demands of professional film sets.
  • Get exceptional image quality with Cooke's renowned optics, delivering true colors.
  • Experience seamless PL Mount compatibility, integrating effortlessly with your camera.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cooke 135mm T2.8 Specifications

  • T-Stop Range

    T2.8-T22

  • Angular Rotation of Iris Scale

    96 Degree

  • Min. Marked Object Distance

    1000 mm / 39 in

  • Close Focus from Lens Front

    790 mm / 31 in

  • Angular Rotation to MOD Endstop

    300 Degree

  • Max Diagonal AOV for Super 35 Format

    14.16 Degree

  • Length from Front of Lens to Lens Mount

    157.8mm / 6.211in

  • Max Front Diameter

    87 mm / 3.43 in

  • Total Weight

    1.80 kg / 3.96 lbs

  • Maximum Format Cover

    33.54mm Diameter (New Epic S35mm Format)

  • Focus Scales

    Two opposing focus scales. Scales marked from infinity to MOD.

  • Focus Drive Gear

    121 teeth 0.8 metric module x 5.0 wide x 104 from the image plane.

  • Iris Scales

    Two opposing linear T scales - whole and third stops marked.

  • Iris Drive Gear

    119 teeth 0.8 metric module x 2.5 wide x 84 from image plane.

Models
Cooke 135mm T2.8 miniS4/i Cine Lens for PL Mount, Meter
$10,750.00

Special Order

Generally ships in 7-14 days, subject to availability

Cooke 100mm T2.8 miniS4/i Cine Lens for PL Mount, Feet
$9,200.00

Special Order

Generally ships in 7-14 days, subject to availability

Cooke 65mm T2.8 miniS4/i Cine Lens for PL Mount, Feet
$9,200.00

Special Order

Generally ships in 7-14 days, subject to availability

Kit StyleBaseBaseBase
FormatSuper 35Super 35Super 35
Lens TypeTelephotoTelephotoTelephoto
Fixed Focal Length135mm100mm65mm
Lens MountPL MountPL MountPL Mount
Maximum ApertureT2.8T2.8T2.8
Zoom Focal LengthNANANA
Focus TypeManual FocusManual FocusManual Focus

About Cooke 135mm T2.8

From the renowned Cooke lens family, the 135mm T2.8 miniS4/i Cine Lens for PL Mount, Meter is a compact, lightweight lens that doesn't compromise on optical quality or reliability. This lens is designed to meet the demands of modern filmmakers, offering the same high-resolution performance and superior optical quality as the S4/i lenses, but at a more economical T2.8 speed.

In the era of advanced digital cameras, the T2.8 speed of the miniS4/i primes is the new standard, replacing the traditional T2.0. The Mini S4/i lenses are fully interchangeable with the S4/i and 5/i lenses, making them a versatile choice for shooting both film and digital images. They are capable of delivering stunning results up to and beyond a 4K resolution, making them a perfect fit for high-definition filmmaking.

The Cooke miniS4/i Prime lens range includes focal lengths of 18, 25, 32, 40, 50, 65, 75, 100, and 135mm. Each lens comes equipped with /i Technology, a feature that provides cinematographers and camera operators with crucial information about lens setting, focusing distance, aperture, depth-of-field, hyperfocal distance, serial number, owner data, lens type, and focal length. This information is available in both metric and footage measurements, providing flexibility based on user preference. For zoom lenses, the zoom position is also displayed.

Designed for all PL mounted professional motion picture film and electronic cameras, the 135mm T2.8 miniS4/i Cine Lens for PL Mount, Meter is a testament to Cooke's commitment to delivering cutting-edge technology and superior quality in every lens.

Cooke 135mm T2.8 Features

  • Optical Design: The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
  • i Electronics: Accessible via contacts in PL mount that sync with /i compatible cameras.
  • Colour Balance: All miniS4/i prime lenses are colour balanced to a specification within parameters approved by Kodak.
  • Aperture: All miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
  • Index Marks: Every index mark is labelled. More detailed markings allow for more detailed focus control.
  • Focus Movement: Cooke cam-style focus movement coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture
  • Camera Mounts: Arriflex PL Mount
  • Focus Scaling: Large, clear numerals on both sides of the focus barrel benefit thefocus puller when shooting under difficult lighting conditions. Plus the the Entrance Pupil position is engraved on the lens.
  • Compatibility: All Cooke miniS4/i primes have a common fixed front diameter of 87mm, with a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x0.8.
  • External Finish: A scratch resistant PTFE hard anodised finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
  • Iris: An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
  • Weight/Size Ratio: The lenses are designed for all shooting applications, including handheld and Steadicam, providing comfortable balance ratio with the latest compact cameras.
  • Reliability and Service: miniS4/i prime lenses are designed to meet a market requirement for fully reliable performance with a minimum of downtime.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with this 135mm Cooke Cine Lens, perfect for Super 35 format.
  • Achieve beautiful bokeh with the wide T2.8 aperture, ideal for cinematic storytelling.
  • Enjoy precise manual focus with clearly marked scales, ensuring sharp, detailed shots.
  • Benefit from robust build quality, designed for the demands of professional film sets.
  • Get exceptional image quality with Cooke's renowned optics, delivering true colors.
  • Experience seamless PL Mount compatibility, integrating effortlessly with your camera.

What's in the box:

  • Lens
  • Front Lens Cap
  • Rear Lens Cap
  • Shims
  • Cooke 1 Year Limited Warranty
