Review Summary
135mm
T1.4-T22
90 Degree
31" (800mm)
21" (531mm)
340 Degree
12.68 Degree (Super 35 Format)
30mm Diameter (Super 35mm Format)
Two opposing focus scales - metric & footage. Scales marked from infinity to MOD.
140 teeth 0.8 metric module x 5.0mm wide 102.5mm from the image plane. (135mm - 180 teeth 0.8 metric module x 5.0mm wide x 128mm from image plane)
Two opposing linear T scales - whole and third stops marked.
134 teeth 0.8 metric module x 2.5mm wide x 82mm from image plane.(135mm - 173 teeth 0.8 metric module x 2.5mm wide x 112mm from image plane)
5.35 x 8.6" (136 x 219mm)
11.2 lbs (5.1kg)
Models | SKU: COE5135 MFR: CKE5 135 $26,300.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: COEA75 MFR: CKEA 75 $29,900.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: COEASF135 MFR: CKEASF 135 $29,900.00 Special Order Generally ships in 7-14 days, subject to availability |
---|---|---|---|
Kit Style | Base | Base | Base |
Format | Super 35 | Super 35 | APS-C, Super 35 |
Lens Type | Telephoto | Telephoto | Telephoto |
Fixed Focal Length | 135mm | 75mm | 135mm |
Lens Mount | PL Mount | PL Mount | PL Mount |
Maximum Aperture | T1.4 | T2.3 | T2.3 |
Zoom Focal Length | NA | NA | NA |
Focus Type | Manual Focus | Manual Focus | Manual Focus |

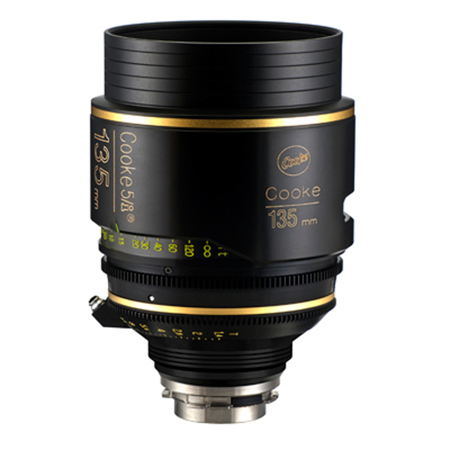

Explore the world of professional photography with the 135mm T1.4 5/i Prime Lens for PL Mount. This lens is designed to deliver exceptional performance in low-light conditions, thanks to its innovative T1.4 speed and a focus ring that illuminates when required, eliminating the need for an external lamp.
This lens offers superior optical and mechanical performance, ensuring control of flare, distortion, veiling glare, and spherical aberrations even at full aperture. The optical design is meticulously crafted to provide maximum performance at full aperture, offering unparalleled control over image quality.
The 135mm T1.4 5/i Prime Lens is color matched and compatible with Cooke S4/i, miniS4/i, CXX 15-40 mm T2 S4/i Zoom, 18-100mm T3.0, and 25-250mm T3.7, and the SK4 16mm lenses. This ensures consistency in color balance across different shooting scenarios.
The lens also incorporates /i Technology, a feature that collects detailed lens data for production, VFX, and post-production teams. This technology provides critical lens metadata such as focus and iris position, as well as individually calibrated lens distortion and shading maps, making it suitable for modern VFX applications like Virtual Production shooting.
Ergonomically designed for smooth and accurate focus movement, this lens utilizes precision mechanics to provide a consistent feel in operation throughout the entire focus movement. All 5i series primes, including this lens, have a true T1.4 aperture and cover Super 35mm format.
The 5i series of prime lenses feature a seven-leaf linear module iris assembly, providing an aperture range of T1.4-T22. All 5i lenses, including this one, have a patented back-lit, variable illumination focus ring with factory-calibrated focus scales and clearly identifiable distance marks.
The 135mm T1.4 5/i Prime Lens for PL Mount is designed with a precision PL Mount with /i Technology Electrical Contacts and a durable, hard-wearing surface finish, ensuring it can withstand the most demanding environmental conditions.
In terms of reliability and service, all 5i series prime lenses are designed for full performance and reliability with a minimum of downtime, making them a trusted choice for professional photographers.
In summary, the 135mm T1.4 5/i Prime Lens for PL Mount offers a unique combination of superior performance, innovative features, and robust design, making it an ideal choice for professional photography and videography.
