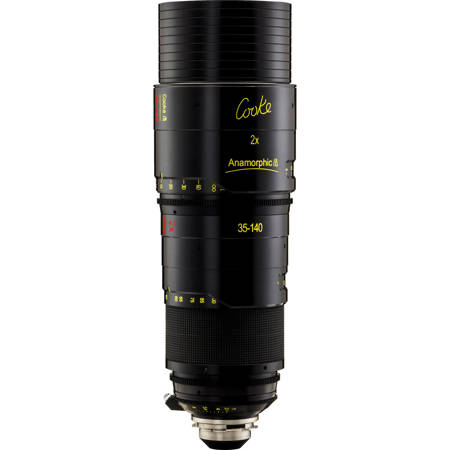

Cooke 35-140mm T3.1 2x Anamorphic/i Lens for PL Mount

SKU: COEAZM35140 MFR: CKEA ZOOM35-140
Earn VIP Reward Points

Key Features

  • Capture stunning cinematic visuals with the Cooke 35-140mm Anamorphic/i zoom lens.
  • Achieve a unique widescreen look with the 2x anamorphic design, enhancing image quality.
  • Enjoy a versatile focal length range, perfect for narrative films and documentaries.
  • The T3.1 aperture ensures excellent low-light performance, crucial for varied shoots.
  • Experience robust build quality, designed for the demands of professional cinematography.
  • Manual focus gives precise control, ideal for achieving creative focus effects.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cooke Anamorphic/i Specifications

  • T-Stop Range

    T3.1-22

  • Angular Rotation of Iris Scale

    90 Degree

  • Min. Marked Object Distance

    47" (1200mm)

  • Close Focus from Lens Front

    28" (720mm)

  • Angular Rotation to MOD Endstop

    300 Degree

  • Max. Angle of View Horizontal / Vertical

    62.4 / 17.5 Degree H

  • Maximum Format Cover

    33.54mm Diameter (New Epic S35mm Format)

  • Focus Scales

    Two opposing focus scales - metric and footage. Scales marked from infinity to MOD.

  • Focus Drive Gear

    35-140mm: 172 teeth 0.8 metric module x 6.0mm wide x 283mm from the image plane
    45-450mm: 211 teeth 0.8 metric module x 6.0mm wide x 170mm dia. 420mm from the image plane.

  • Zoom Scales

    Two opposing zoom scales.

  • Zoom Drive Gears

    35-140mm: 140 teeth 0.8 metric module x 6.0mm wide x 102mm from the image plane
    45-450mm: 140 teeth 0.8 metric module x 6.0mm wide x 105mm from the image plane.

  • Iris

    ScalesTwo opposing linear T scales - whole and third stops marked.

  • Iris Drive Gear

    134 teeth 0.8 metric module x 4.0mm wide x 83mm from the image plane.

  • Dimensions (Dia. x L)

    5.35 x 16.76" (136 x 425mm)

  • Total Weight

    22.6 lbs (10.3kg)

Models
Cooke 35-140mm T3.1 2x Anamorphic/i Lens for PL Mount

SKU: COEAZM35140

MFR: CKEA ZOOM35-140

$63,750.00

Special Order

Generally ships in 7-14 days, subject to availability

Cooke 35-140mm T3.1 2x Anamorphic/i SF Lens for PL Mount

SKU: COEAZSF35140

MFR: CKEA ZOOMSF35-140

$63,750.00

Special Order

Generally ships in 7-14 days, subject to availability

Cooke 32mm T2.3 Anamorphic/i 1.8x Plus Lens for PL Mount
$39,950.00

Special Order

Generally ships in 7-14 days, subject to availability

Kit StyleBaseBaseBase
FormatFull FrameFull FrameFull Frame
Lens TypeWide AngleWide AngleWide Angle
Fixed Focal LengthNANA32mm
Lens MountPL MountPL MountPL Mount
Maximum ApertureT3.1T3.1T2.3
Zoom Focal Length35-140mm35-140mmNA
Focus TypeManual FocusManual FocusManual Focus

About Cooke Anamorphic/i

Where cutting-edge technology meets the art of cinematography, the Cooke 35-140mm T3.1 2x Anamorphic/i Lens for PL Mount stands out. This lens is a game-changer in the realm of anamorphic filmmaking, offering the much-coveted Cooke Look and oval bokeh. It's a 4x true, front anamorphic zoom lens that provides the creative flexibility that modern cinematographers have been eagerly anticipating.

This Cooke Anamorphic/i zoom lens is equipped with patented optical design that amalgamates a unique blend of attributes. It comes with /i Technology, designed to be compatible with all PL mounted professional motion picture film and electronic cameras. This technology provides vital information on lens setting, focusing distance, aperture, depth-of-field, hyperfocal distance, serial number, owner data, lens type, and focal length in both metric and footage measurements. For zoom lenses, the zoom position is also displayed.

The optical design of this lens is engineered to deliver maximum performance at full aperture, with superior control of flare, distortion, and spherical aberration. The /i Electronics are accessible via a cable connector near the lens mount and contacts in mount that sync with /i compatible cameras and accessories.

The Cooke Anamorphic/i lenses are color balanced to a specification within parameters approved by Kodak. They are color-matched and compatible with Cooke 5/i, Cooke S4/i, miniS4/i, and CXX 15-40 mm T2 S4/i Zoom lenses. The Cooke Anamorphic/i 35-140mm zoom lens features a true T3.1 aperture and covers the Super 35mm format.

Every index mark on the lens is labeled, allowing for precise focus control. The lens also features the Academy Award-winning cam-style focus movement, coupled with a large lens barrel diameter, which allows for an increased number of focus markings, especially at close focus. Spherical aberration is controlled throughout the range of focal lengths to eliminate the need for compensation of changes in back focus with aperture. A four-point contact bearing ensures a smooth, positive, backlash-free movement.

The lens features large, clear numerals on both sides of the focus barrel, aiding the focus puller in challenging lighting conditions. The Entrance Pupil position is also engraved on the lens. The lens comes with a hardened PL Mount with /i Technology contacts.

All Cooke Anamorphic/i lenses have a common, fixed front diameter of 110mm, with the exception of the 25, 65 MACRO, 300mm focal lengths, and the Anamorphic/i zoom lenses, which are 136mm. All lenses feature an iris drive gear of 134T x 0.8.

The external finish of the lens is a scratch-resistant PTFE hard anodized finish, designed to withstand the most demanding environmental conditions. The lens is fitted with an eleven-leaf linear module iris assembly, with an aperture range of T3.1 to T22.

The Cooke Anamorphic/i lenses are designed for all shooting applications, including handheld and Steadicam, providing a comfortable balance ratio with the latest compact cameras. These lenses are built to offer reliable performance with minimal downtime, meeting the market's demand for high-quality, durable lenses.

Cooke Anamorphic/i Features

  • Shoot from very wide angle to telephoto with a 4x zoom ratio
  • True, front anamorphic with 2x squeeze
  • Oval bokeh, just like our Cooke Anamorphic/i Prime lenses, and oval bokeh throughout zoom and focus along with the other coveted characteristics you want when shooting anamorphic
  • Color and depth of field characteristics matched to the Anamorphic/i primes
  • Award-winning cam-style focus mechanism for smooth focus adjustments
  • Especially well balanced for astigmatism and corrected for lateral and longitudinal aberrations over the entire image area
  • Linear iris

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning cinematic visuals with the Cooke 35-140mm Anamorphic/i zoom lens.
  • Achieve a unique widescreen look with the 2x anamorphic design, enhancing image quality.
  • Enjoy a versatile focal length range, perfect for narrative films and documentaries.
  • The T3.1 aperture ensures excellent low-light performance, crucial for varied shoots.
  • Experience robust build quality, designed for the demands of professional cinematography.
  • Manual focus gives precise control, ideal for achieving creative focus effects.

What's in the box:

  • Cooke 35-140mm T3.1 2x Anamorphic/i Zoom Lens
  • Front Lens Cap
  • Rear Lens Cap
  • Cooke 1 Year Limited Warranty
