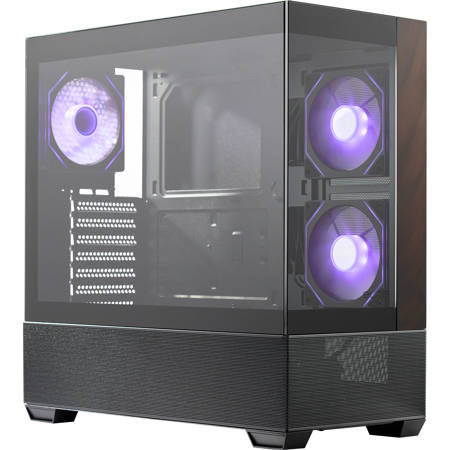

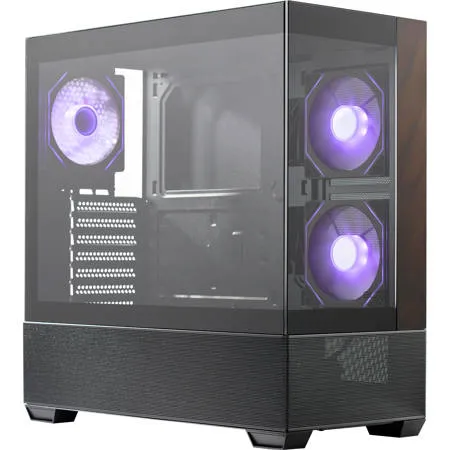

CoolerMaster Elite 690 Wood ARGB Tempered Glass ATX Mid Tower Case, Black

SKU: CME690KHNNS0 MFR: E690-KHNN-S00
$83.99
$94.99
Save: $11 (12%)
Earn VIP Reward Points

Key Features

  • Experience superior cooling efficiency with optimized airflow for your high-performance PC.
  • Showcase your build beautifully with a sleek tempered glass and wood aesthetic design.
  • Enjoy broad compatibility, supporting ITX, Micro-ATX, and ATX motherboards for your custom rig.
  • Effortlessly manage cables with smart routing options, ensuring a clean and tidy interior.
  • Future-proof your setup with ample expansion slots for all your essential components.
  • Built with durable materials, this computer tower case offers long-lasting protection and style.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CoolerMaster Elite 690 Wood Specifications

  • Color

    Black

  • Material

    Front Panel: Tempered Glass + Wood
    Side Panel (Left): Tempered Glass
    Side Panel (Right): Steel

  • Size

    Mid Tower

  • Series

    Elite Series

  • Volume

    2619.74 cu. in (42.93L) (Incl. Protrusions)

  • Motherboard Support

    ITX, Micro-ATX, ATX

  • Power Supply Support

    ATX

  • Expansion Slots

    7x

  • 5.25" Drive Bays

    0

  • 3.5" Drive Bays

    1x (Max. 2)

  • 2.5" Drive Bays

    1x (Max. 2)

  • I/O Panel - USB Ports

    1x USB Type C 20Gbps, 2x USB 3.0

  • I/O Panel - Audio In / Out

    1x 3.5mm Combo

  • Pre-installed Fans

    Rear: 1x 120mm ARGB PWM
    Side Mount: 2x 120mm ARGB PWM reverse fan

  • Fan Support

    Top: 2x 140mm, 3x 120mm
    Rear: 1x 120mm
    Side Mount: 2x 120mm
    Bottom: 3x 120mm

  • Radiator Support

    Top: 120 / 240 / 360mm (Max height 45mm)
    Bottom: 120 / 240 / 360mm
    Side Mount: 120 / 240mm

  • Clearance

    CPU Cooler: 170mm
    PSU: 250mm
    Graphics Card: 425mm

  • Country of Origin

    China

  • Dimensions (L x W x H)

    Including Protrusions: 17.09 x 8.58 x 17.87" (434 x 218 x 454mm)
    Excluding Protrusions: 16.93 x 8.58 x 17.13" (430 x 218 x 435mm)

  • UPC Code

    884102133152

About CoolerMaster Elite 690 Wood

Natural Aesthetics. Immersive View. Advanced Cooling.
The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups-perfect for performance-driven or style-focused builds.

270 Degree Panoramic Tempered Glass
Beveled glass panels create an immersive, seamless showcase of your build.

Optimized Tower with PSU Chamber
Vertical layout separates thermal zones for better airflow and cleaner cable routing.

Vertical Cooling Architecture
Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.

Natural Wood Front Panel
Crafted from real wood, the front panel adds a warm, organic touch to any space.

High-Performance Radiator Support
Top 360mm and side 240mm radiator support for powerful cooling setups.

Pre-installed ARGB Fans with Sync
Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.

Top & Bottom Mesh Ventilation
Mesh panels ensure enhanced airflow and system-wide thermal performance.

Next-Gen GPU Ready
Supports up to 425mm GPUs-ready for RTX 50 Series and beyond.

High-Speed I/O Panel
USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.

CoolerMaster Elite 690 Wood Features

  • Dual 270-degree beveled tempered glass panels create a seamless, immersive view
  • Real wood front accent panel adds a warm, natural aesthetic to your setup
  • Vertical cooling architecture supports up to 10 fans for high airflow
  • Spacious interior fits next-gen graphics cards up to 425mm in length
  • Features top 360mm and side 240mm radiator support for powerful cooling

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior cooling efficiency with optimized airflow for your high-performance PC.
  • Showcase your build beautifully with a sleek tempered glass and wood aesthetic design.
  • Enjoy broad compatibility, supporting ITX, Micro-ATX, and ATX motherboards for your custom rig.
  • Effortlessly manage cables with smart routing options, ensuring a clean and tidy interior.
  • Future-proof your setup with ample expansion slots for all your essential components.
  • Built with durable materials, this computer tower case offers long-lasting protection and style.

What's in the box:

  • CoolerMaster Elite 690 Wood ARGB Tempered Glass ATX Mid Tower Case (Black)
  • CoolerMaster 2 Year Limited Warranty
