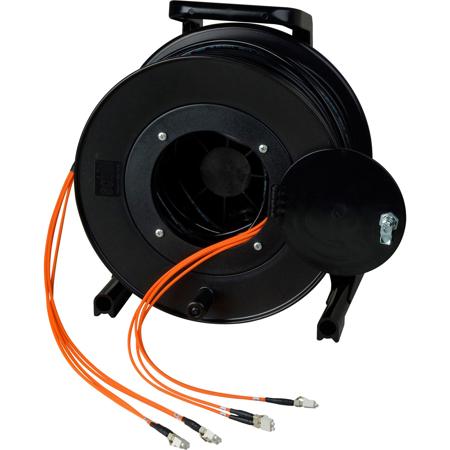

Camplex 2000' 4-Channel LC Multimode OM1 Fiber Optic Tactical Reel

SKU: CP04LCM12000 MFR: HF-TR04LCM1-2000
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 2000' fiber optic tactical reel for reliable connections.
  • Durable construction with a Polyurethane jacket withstands tough conditions, indoors or out.
  • Features 4 LC connectors with machine polished UPC for superior signal clarity and minimal loss.
  • OM1 62.5 Mum multimode fiber type supports Gigabit Ethernet up to 1969' at 1310 nm wavelength.
  • Withstand up to 200 impacts, ensuring this tactical fiber reel is rugged and field-ready for use.
  • Enjoy wide operating temperature range: -67 to 185 deg. F, perfect for any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$699.99

4 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex LC Multimode OM1 Specifications

  • Length

    2000' / 609.6m

  • Cable Type

    4-channel, fiber optic, tactical, round Polyurethane jacket, 36" / 91.44cm orange fanouts

  • Fiber Type

    OM1 62.5 Mum multimode

  • Connectors

    4x LC, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    < -55dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 105 deg. F / -70 to 41 deg. C

About Camplex LC Multimode OM1

For professionals in the broadcast and pro-audio industries, the 2000' 4-Channel LC Multimode OM1 Fiber Optic Tactical Reel offers a robust and lightweight solution. This OM1 Orange 62.5 Micron Multimode Tactical Fiber Snake is engineered with LC connectors, designed specifically for high-demand applications in outdoor broadcast, rental houses, and beyond.

This multi-channel fiber optic cable is not only ruggedized for multiple deployments but also highly flexible. It features tight-buffered tactical cables with internal aramid strength members, ensuring crush resistance in high traffic areas when handled correctly. The polyurethane outer sheath is designed to withstand the weight of both military tanks and Outside Broadcast vehicles, demonstrating its exceptional durability.

Each assembly is multi-stage machine polished and tested, built in our Fiber Shop with OCC Multichannel Tactical Cable and Heavy Duty Connectors with Dust Caps. The individual channels are ruggedized with Orange Techflex Protection and a 36-Inch Fanout for added resilience.

The compact, round cable design facilitates easy transportation and deployment, making it an ideal choice for use in adverse environments where reduced size and weight are crucial. The helically stranded cable core offers flexibility, deployment survivability, and exceptional mechanical protection for the optical fibers.

Tested and in use in military data communications applications worldwide, this cable can be deployed directly on the ground in all terrains, including severe environments. It is suitable for outside broadcast, industrial, mining, and petrochemical environments, offering chemical resistance.

The cable is crush-resistant and resilient, featuring a thick layer of aramid strength members. It is polyurethane jacketed for abrasion, cut, and chemical resistance, meeting and exceeding MIL-PRF-85045 Specifications. The fanouts are color-coded with Orange Techflex for added protection.

The 2000' 4-Channel LC Multimode OM1 Fiber Optic Tactical Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door. Each reel is carefully selected to ensure proper support and the critical bend radius required by fiber optic cables. For optimal storage, we recommend tactical fiber optic cables over 25 feet be stored on a cable reel. Custom lengths and configurations are always available, catering to your specific needs.

Camplex LC Multimode OM1 Features

  • Rugged and lightweight 2000' 4-Channel LC Multimode OM1 Fiber Optic Tactical Reel for broadcast and pro-audio applications
  • Features high flexibility and crush resistance, suited for high traffic areas and extreme environments
  • Polyurethane jacketed for superior abrasion, cut, and chemical resistance, exceeding MIL-PRF-85045 Specifications
  • Compact, round cable design for easy transportation and deployment in adverse conditions
  • Includes broadcast fiber optic cable reels with connector protection cavity & hinged latching door
  • Customizable lengths and configurations available for versatile usage scenarios

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data transfer with this 2000' fiber optic tactical reel for reliable connections.
  • Durable construction with a Polyurethane jacket withstands tough conditions, indoors or out.
  • Features 4 LC connectors with machine polished UPC for superior signal clarity and minimal loss.
  • OM1 62.5 Mum multimode fiber type supports Gigabit Ethernet up to 1969' at 1310 nm wavelength.
  • Withstand up to 200 impacts, ensuring this tactical fiber reel is rugged and field-ready for use.
  • Enjoy wide operating temperature range: -67 to 185 deg. F, perfect for any environment.

What's in the box:

  • Camplex 2000' 4-Channel LC Multimode OM1 Fiber Optic Tactical Reel
  • Camplex 1 Year Limited Warranty
