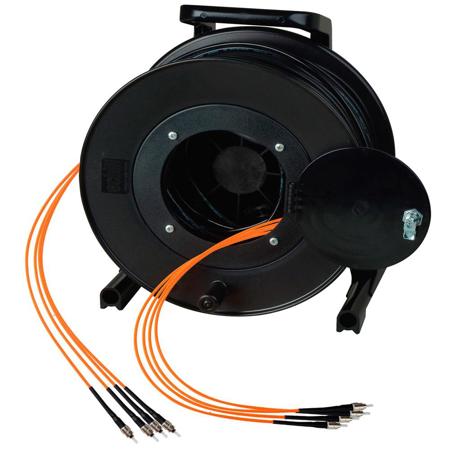

Camplex 750' 4-Channel ST Multimode OM1 Fiber Optic Tactical Reel

SKU: CP4STM10750 MFR: HF-TR04STM1-0750
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 750' OM1 Multimode Fiber Optic cable reel.
  • Experience durable connectivity with our tactical Ethernet cable's polyurethane jacket.
  • This 4-channel ST fiber optic cable supports Gigabit Ethernet up to 1969' at 1310 nm.
  • Enjoy high performance with < -55dB return loss on our machine-polished UPC connectors.
  • Withstand harsh conditions; this fiber optic cable operates from -67 to 185 deg. F.
  • Benefit from superior impact & crush resistance for long-lasting fiber optic durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex ST Multimode OM1 Specifications

  • Length

    750' / 228.6m

  • Cable Type

    4-channel, fiber optic, tactical, round Polyurethane jacket, 36" / 91.44cm orange fanouts

  • Fiber Type

    OM1 62.5 Mum multimode

  • Connectors

    4x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    < -55dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 105 deg. F / -70 to 41 deg. C

About Camplex ST Multimode OM1

Make your broadcast and pro-audio applications seamless with the 750' 4-Channel ST Multimode OM1 Fiber Optic Tactical Reel. This rugged and lightweight OM1 Orange 62.5 Micron Multimode Tactical Fiber Snake is specifically designed for demanding field production in outside broadcast, rental houses, and more.

This highly flexible, tight-buffered tactical cable features internal aramid strength members, providing exceptional crush resistance in high traffic areas when handled correctly. Its polyurethane outer sheath is designed to withstand crushing by military tanks and Outside Broadcast vehicles, ensuring durability and longevity.

Each assembly is multi-stage machine polished and tested, built in our Fiber Shop with OCC Multichannel Tactical Cable and Heavy Duty Connectors with Dust Caps. The individual channels are ruggedized with Orange Techflex Protection and a 36-Inch Fanout, offering additional protection and durability.

The compact, round cable design facilitates easy transportation and deployment, making it an ideal choice for adverse environments where reduced size and weight are crucial. The helically stranded cable core offers flexibility, deployment survivability, and exceptional mechanical protection for the optical fibers.

Tested and in use in military data communications applications worldwide, this cable can be deployed directly on the ground in all terrains, including severe environments. It's suitable for outside broadcast, industrial, mining, and petrochemical environments, offering chemical resistance.

The crush-resistant and resilient design features a thick layer of aramid strength members, while the polyurethane jacket provides abrasion, cut, and chemical resistance. Meeting and exceeding MIL-PRF-85045 specifications, the fanouts are color-coded with Orange Techflex for added protection.

This cable is an extremely strong, lightweight, rugged tight-buffered cable designed for commercial, broadcast, and military applications. The Camplex Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with connector protection cavity and hinged latching door. Each reel is carefully selected to ensure proper support and critical bend radius required by fiber optic cables. For optimal storage, we suggest tactical fiber optic cables over 25 feet be stored on a cable reel. Custom lengths and configurations are always available to meet your specific needs.

Camplex ST Multimode OM1 Features

  • Rugged and lightweight 750' 4-Channel ST Multimode OM1 Fiber Optic Tactical Reel, ideal for broadcast and pro-audio applications
  • Highly flexible, tight-buffered tactical cable with internal aramid strength members, offering exceptional crush resistance
  • Polyurethane outer sheath designed for durability, withstanding crushing by military tanks and Outside Broadcast vehicles
  • Suitable for use in adverse environments, including outside broadcast, industrial, mining, and petrochemical environments
  • Meets and exceeds MIL-PRF-85045 specifications, with fanouts color-coded with Orange Techflex for added protection
  • Includes broadcast fiber optic cable reels with connector protection cavity and hinged latching door, supporting proper bend radius required by fiber optic cables

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 750' OM1 Multimode Fiber Optic cable reel.
  • Experience durable connectivity with our tactical Ethernet cable's polyurethane jacket.
  • This 4-channel ST fiber optic cable supports Gigabit Ethernet up to 1969' at 1310 nm.
  • Enjoy high performance with < -55dB return loss on our machine-polished UPC connectors.
  • Withstand harsh conditions; this fiber optic cable operates from -67 to 185 deg. F.
  • Benefit from superior impact & crush resistance for long-lasting fiber optic durability.

What's in the box:

  • Camplex 750' 4-Channel ST Multimode OM1 Fiber Optic Tactical Reel
  • Camplex 1 Year Limited Warranty
