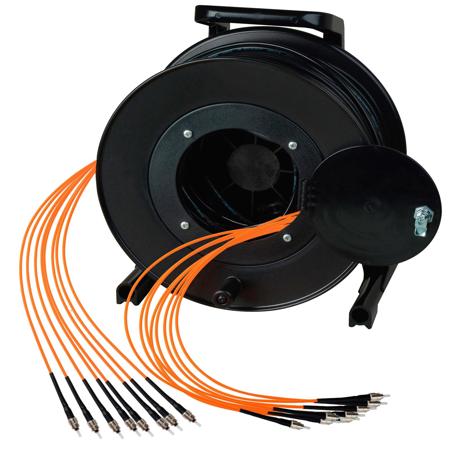

Camplex 2000' 8-Channel ST Multimode OM1 Fiber Optic Tactical Reel

SKU: CP8STM12000 MFR: HF-TR08STM1-2000
Earn VIP Reward Points

Key Features

  • Deploy with our 2000' tactical fiber optic cable reel, built for rugged outdoor use and easy transport.
  • Experience reliable data transfer with this 8-channel ST multimode OM1 fiber optic cable solution.
  • Built to last: Our fiber optic cable features a durable polyurethane jacket, crush & impact resistance.
  • Achieve gigabit Ethernet connectivity up to 1969' with low attenuation using our premium cable.
  • Enjoy a secure connection with machine-polished UPC ST connectors, ensuring < -55dB return loss.
  • This fiber optic cable reel withstands extreme temps, from -67°F to 185°F, for any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Camplex ST Multimode OM1 Specifications

  • Length

    2000' / 609.6m

  • Cable Type

    8-channel, fiber optic, tactical, round Polyurethane jacket, 36" / 91.44cm orange fanouts

  • Fiber Type

    OM1 62.5 Mum multimode

  • Connectors

    8x ST, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2,000 cycles

  • Return Loss

    < -55dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 105 deg. F / -70 to 41 deg. C

About Camplex ST Multimode OM1

With the Camplex 2000' 8-Channel ST Multimode OM1 Fiber Optic Tactical Reel, experience the pinnacle of durability, quality, and versatility in fiber optic networking. This high-performance reel is designed for professional audio and broadcast applications, offering a robust and lightweight solution for your networking needs.

Constructed with an OM1 Orange 62.5 Micron Multimode Tactical Fiber, this reel is not only rugged but also highly flexible. It features a compact, round cable design that ensures easy transportation and deployment, making it an ideal choice for field production in outside broadcast, rental houses, and more.

The internal aramid strength members provide exceptional crush resistance, even in high traffic areas, ensuring the longevity of the product. The polyurethane outer sheath is designed to withstand crushing by both military tanks and Outside Broadcast vehicles, demonstrating its resilience and durability.

This innovative product is helically stranded for flexibility, deployment survivability, and offers superior mechanical protection for the optical fibers. It's suitable for use in adverse environments where reduced size and weight are crucial, including outdoor, industrial, mining, and petrochemical settings.

The reel is chemical-resistant, abrasion-resistant, and cut-resistant, thanks to its polyurethane jacket. It meets and exceeds MIL-PRF-85045 specifications, ensuring its high-quality and reliability.

The fanouts are color-coded with Orange Techflex for added protection, and the cable features an extremely strong, lightweight, rugged tight-buffered design for commercial, broadcast, and military applications. The Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door, ensuring the safety and longevity of your connections.

This product is ideal for temporary outdoor deployment directly on the ground in all terrains, including severe environments. For optimal performance and protection, it is recommended that tactical fiber optic cables over 25 feet be stored on a cable reel. Custom lengths and configurations are always available, making this product a versatile solution for all your fiber optic networking needs.

Camplex ST Multimode OM1 Features

  • High-quality 2000' 8-Channel ST Multimode OM1 Fiber Optic Tactical Reel for professional audio and broadcast applications
  • Durable and flexible design with internal aramid strength members for crush resistance
  • Compact, round cable for easy transportation and deployment in various environments
  • Polyurethane outer sheath for exceptional abrasion, cut, and chemical resistance
  • Meets and exceeds MIL-PRF-85045 specifications, ensuring superior performance
  • Includes broadcast fiber optic cable reels with connector protection cavity and hinged latching door for added safety

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Deploy with our 2000' tactical fiber optic cable reel, built for rugged outdoor use and easy transport.
  • Experience reliable data transfer with this 8-channel ST multimode OM1 fiber optic cable solution.
  • Built to last: Our fiber optic cable features a durable polyurethane jacket, crush & impact resistance.
  • Achieve gigabit Ethernet connectivity up to 1969' with low attenuation using our premium cable.
  • Enjoy a secure connection with machine-polished UPC ST connectors, ensuring < -55dB return loss.
  • This fiber optic cable reel withstands extreme temps, from -67°F to 185°F, for any environment.

What's in the box:

  • Camplex 2000' 8-Channel ST Multimode OM1 Fiber Optic Tactical Reel
  • Camplex 1 Year Limited Warranty
