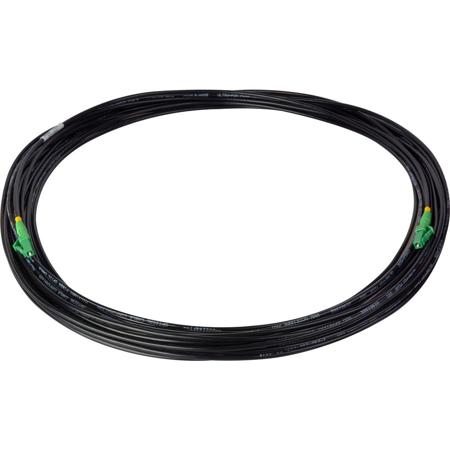

Camplex HF-T1ALCALC-0250 TAC1 Simplex Singlemode APC LC to APC LC Fiber Optic Tactical Cable, 250'

SKU: CPALCALC250 MFR: HF-T1ALCALC-0250
Earn VIP Reward Points

Key Features

  • Experience reliable data transfers with this 250ft fiber optic tactical cable.
  • Ensure seamless connectivity with APC LC to APC LC connectors for superior performance.
  • Built for durability, this rugged fiber cable withstands demanding field applications.
  • Enjoy high-speed data transmission with a 9/125 um core/cladding diameter cable.
  • Minimize signal loss; this singlemode fiber optic cable has low attenuation (0.5dB/km).
  • Benefit from a secure connection; typical RL is less than -55dB for optimal networking.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex TAC1 Simplex Singlemode APC LC Fiber Optic Tactical Cable, 250' Specifications

  • Industry Standard Designation

    Single-Mode ITU-T G.652.A

  • Connector

    Connector 1: LC
    Connector 2: LC

  • Core/Cladding Diameter

    9/125 um

  • Wavelength

    1310/1550 nm

  • Maximum Cabled Attenuation

    0.5/0.5 (dB/km)

  • Primary Coating Diameter

    500 um

  • Secondary Buffer Diameter

    900 um

  • Zero Dispersion Slope

    0.092 ps/nm2-km

  • Proof Test Level

    100 kpsi

  • Typical RL

    Less than-55dB and IL Less than 0.25dB

  • Length

    250' (76.2m)

About Camplex TAC1 Simplex Singlemode APC LC Fiber Optic Tactical Cable, 250'

When it comes to professional broadcasting and audio applications, the HF-T1ALCALC-0250 TAC1 Simplex Singlemode APC LC to APC LC Fiber Optic Tactical Cable, 250' stands out as an exceptional choice. This single-channel tactical cable is specifically engineered for military tactical deployment applications, meeting all the rigorous outdoor tactical needs for broadcast applications.

Designed with a robust and lightweight structure, this fiber optic tactical cable is ideal for environments where standard PVC jacket cables fall short in providing the necessary protection. Its core-locked design, crafted from durable Polyurethane, offers superior resistance against outdoor elements, including crush and impact damage.

The HF-T1ALCALC-0250 TAC1 Simplex Singlemode APC LC to APC LC Fiber Optic Tactical Cable, 250' is equipped with premium Senko fiber connectors, ensuring optimal signal transmission for your professional audio and video needs. Each assembly undergoes machine polishing and interferometer testing to meet and exceed industry standards, guaranteeing the highest quality and performance.

Furthermore, we understand the importance of quality assurance. That's why all our products, including this fiber optic tactical cable, are 100% tested. Upon request, we can provide a complete set of test documentation for your cable, offering you peace of mind and confidence in your purchase.

In summary, for those seeking a rugged, reliable, and high-performing solution for their broadcasting and pro-audio applications, the HF-T1ALCALC-0250 TAC1 Simplex Singlemode APC LC to APC LC Fiber Optic Tactical Cable, 250' is an excellent choice.

Camplex TAC1 Simplex Singlemode APC LC Fiber Optic Tactical Cable, 250' Features

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL less than-55dB and IL less than 0.25dB
  • Wide temperature range (typically -55 Degree C to 85 Degree C)
  • 500um primary acrylate buffer with 900um secondary hard elastomeric buffer (Ultra-Fox Plus)
  • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
  • Designed to withstand crush and impact after deployment
  • Strong, lightweight and extremely durable cable

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience reliable data transfers with this 250ft fiber optic tactical cable.
  • Ensure seamless connectivity with APC LC to APC LC connectors for superior performance.
  • Built for durability, this rugged fiber cable withstands demanding field applications.
  • Enjoy high-speed data transmission with a 9/125 um core/cladding diameter cable.
  • Minimize signal loss; this singlemode fiber optic cable has low attenuation (0.5dB/km).
  • Benefit from a secure connection; typical RL is less than -55dB for optimal networking.

What's in the box:

  • Camplex TAC1 Simplex Singlemode APC LC to APC LC Fiber Optic Tactical Cable
  • Camplex 1 Year Limited Warranty
