Camplex FIBERJ-1P FiberJuice Single Channel opticalCON Fiber Power Supply & opticalCON Camera Pack

Add Power to Your SMPTE Neutrik opticalCON Fiber Optic Cables!
Deliver safe, low voltage camera power up to 328 feet over opticalCON SMPTE standard fiber optic cables with this Camplex FIBERJUICE power supply system. The Camplex FIBERJUICE system injects power over Neutrik opticalCON SMPTE DUO cables for powering outside broadcast & field production cameras to eliminate the need for local power & batteries at the camera end. Delivers enough juice to power cameras, lights, lens control units and more!

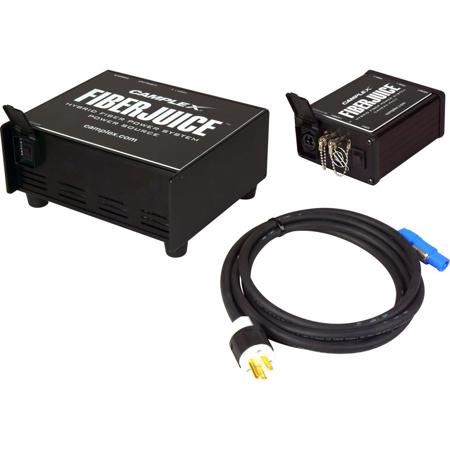

The FIBERJUICE system is comprised of two modules. The power injection base station [Base-Unit] and a smaller lightweight opticalCON camera output box [Camera-Pack]. The Base-Unit at the front end combines 2-channel fiber from your fiber converter AND power (from AC source) on a single opticalCON cable. The Camera-Pack breakout box delivers safe, regulated 12-Volt DC with up to 8-Amps max power to the camera & its accessories as well as 2 channels of fiber I/O.

• FIBERJUICE opticalCON Power Sender / Single Channel Base-Units Includes
• Twin ST Singlemode Fiber Inputs to Connect with ANY fiber transmitter/receiver such as AJA FIDO, Telecast Rattler & Blackmagic ATEM
• Neutrik opticalCON DUO Output Delivers BOTH Video & Camera Power in One opticalCON Cable (ordered separately)
• Neutrik PowerCON AC Power Input (POWERCON Cable Included)
• DC to DC Switch-Mode Power Supply that Delivers Power to the Camera-Unit up to 328'
• Power Switch & Power Indicator
• Fiber Juice is compatible with OpticalCON SMPTE cables assemblies when used with proprietary Camplex Low Voltage Fiber Juice system transmitter and receiver components.

Please Note: This is a Single Camera System. See model FIBERJ-4P for 4-Channel systems.

SAFETY NOTICE: Fiber Juice is not compatible with LEMO SMPTE CCU and Cameras and cannot be Adapted between OpticalCon and LEMO types.
