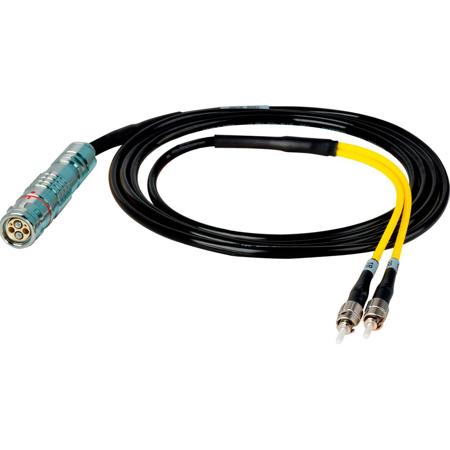

Camplex 25' LEMO FUW to Duplex ST In-Line Fiber Optic Breakout Cable

Inline SMPTE Hybrid Fiber breakouts deliver a simple all-in-one solution when breaking out SMPTE 311M to separate optical and electrical connections. Pre-terminated SMPTE hybrid breakout cables feature 3K.93C connectors feeding out to choice of duplex ST or LC optical connectors without power (Power versions also available). Perfect for use in SMPTE rack panels, splice trays, adapters and wall boxes. Breakout series is UPC machine polished to meet or exceed all SMPTE 304M/311M standards.

Assembled with premium Belden super flexible US SMPTE standard studio broadcast cable. This composite cable integrates power line for TV camera, control line and optical fiber for video and audio transmission. The cable is standardized by SMPTE for HDTV Broadcast camera use. Cables consists of two single-mode optical fibers, four 20 AWG and two 24 AWG tinned copper conductors cabled around a steel strength element, with an overall tinned copper braid. This general purpose cable is used for studios, patching and light to medium field use. A flexible PVC blend jacket allows for ease of use within the studio.

• Assembled with Premium SMPTE Cable & Lemo and Senko Connectors
• Industry standard cables
• Terminations by LEMO trained technicians
• Electrical assemblies 100% tested for continuity and shorts
• Fiber optic assemblies 100% tested for attenuation and back reflection
• SMPTE 311M and 304M compliant
• Stainless steel assemblies
• Rubber dust caps
• 19.4 Mbps to 3 Gbps transport
• Machine polished fiber contacts
• Low insertion and return loss (Documented)

Note:

The Camplex SMPTE to ST is a passive breakout cable intended to eliminate the need for high cost Hybrid Fiber cables and allow for simple integration using riser rated duplex cables; Some Camera/CCU setups may require continuity between the copper conductors found within a SMPTE 304 connector to remain intact. For such scenarios, please contact your sales rep for clarification and assistance.
