Camplex opticalCON DUO to DUO SMPTE APC Single Mode In-Line Coupler
Camplex opticalCON Coupler: Picture 1 thumbnail
Camplex opticalCON Coupler: Picture 2 thumbnail
Camplex opticalCON Coupler: Picture 3 thumbnail
Camplex opticalCON Coupler: Picture 4 thumbnail
See all Camplex items

Camplex opticalCON DUO to DUO SMPTE APC Single Mode In-Line Coupler

SKU: CPHFOC2S2SA MFR: HF-OC2S2SA
Be the first to review this itemAsk a Question
$332.95
$335.95
Save: $3
OR
$56/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure seamless SMPTE data transfer with this opticalCON DUO in-line coupler.
  • Experience minimal signal loss; insertion loss is less than 0.5 dB per connection.
  • Built for durability: Enjoy a long lifetime with >1000 mating cycles, great value!
  • Reliable push-pull locking device keeps your optical fiber connections secure always.
  • Compact & lightweight design: Easy to integrate; weighs only 5.9 oz (167.2g).
  • Uses high-quality bronze contacts with gold plating for superior conductivity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Camplex opticalCON Coupler Specifications

Electrical

Electrical

Jump to...

  • Contact resistance

    < 7 m Ohm

  • Dielectric strength

    1,5 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)

  • Rated voltage

    L < 50 V (1)

Mechanical

Jump to...

  • Insertion force

    < 45 N

  • Withdrawal force

    < 45 N

  • Lifetime

    > 1000 mating cycles

  • Locking device

    Push-Pull

Material

Jump to...

  • Contact plating

    0.2 microm Au over 2 microm Ni

  • Contacts

    Bronze (CuSn6)

  • Insert

    Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)

  • Shell

    AlMgSi 0.5, black plated

  • Split sleeve

    Ceramics

Optical

Jump to...

  • Insertion loss

    < 0.5 dB / connection

Physical

Jump to...

  • Dimensions

    5.44 x 1.13 x 1.63" (13.8 x 2.8 x 4.1cm )

  • Weight

    5.9 oz (167.2g)

About Camplex opticalCON Coupler

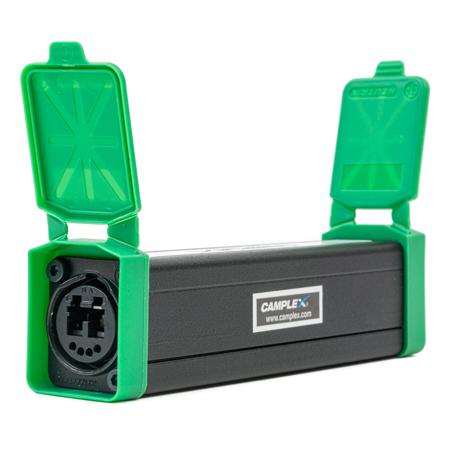

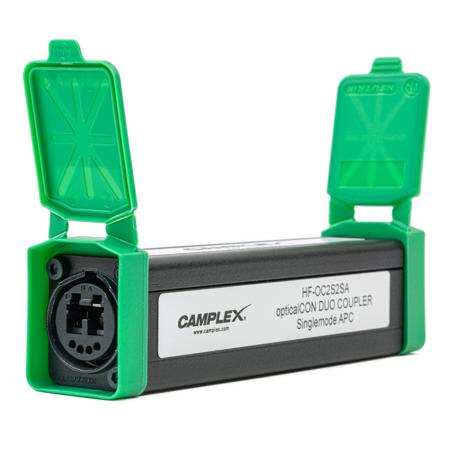

When you need a simple solution to join two single mode APC opticalCON DUO cables together, the Camplex HF-OC2S2SA offers an easy fix. It extends your opticalCON DUO run in a field tough, black powder coated housing. The coupler features flip up dust covers and an automatic shutter on each mating connector.

Camplex opticalCON Coupler Features

  • Inline opticalCON Coupler with Minimal Loss
  • Durable Black Powder-Coated Aluminum Housing

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure seamless SMPTE data transfer with this opticalCON DUO in-line coupler.
  • Experience minimal signal loss; insertion loss is less than 0.5 dB per connection.
  • Built for durability: Enjoy a long lifetime with >1000 mating cycles, great value!
  • Reliable push-pull locking device keeps your optical fiber connections secure always.
  • Compact & lightweight design: Easy to integrate; weighs only 5.9 oz (167.2g).
  • Uses high-quality bronze contacts with gold plating for superior conductivity.

What's in the box:

  • Camplex opticalCON DUO to DUO SMPTE APC Single Mode In-Line Coupler
  • Camplex 1 Year Limited Warranty
