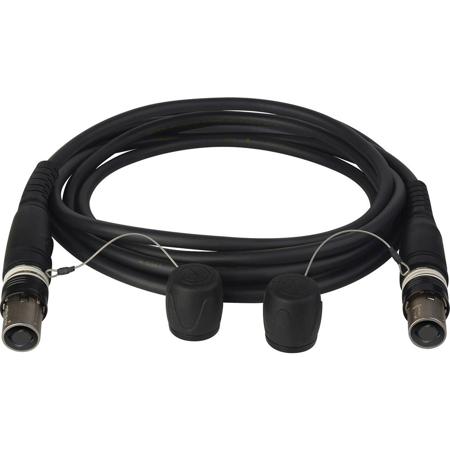

Camplex OpticalCON QUAD Multimode Fiber Optic Tactical Cable, 100'
See all Camplex items

Camplex OpticalCON QUAD to OpticalCON QUAD Multimode Fiber Optic Tactical Cable, 100'

SKU: CPHFOC4M0100 MFR: HF-OC4M-0100
Be the first to review this itemAsk a Question
$1,080.95
OR
$91/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 100' OpticalCON QUAD fiber optic cable.
  • Use for digital audio, video, and networking in demanding environments.
  • Built with a durable polyurethane jacket, this tactical cable withstands harsh use.
  • Features Neutrik OpticalCON QUAD connectors for secure, high-quality connections.
  • Enjoy a long life with over 1000 cycles, reducing the need for frequent replacements.
  • Achieve optimal performance with low cable loss, ideal for critical applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Camplex QUAD Multimode Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4MX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, Less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    100' (30.5m)

About Camplex QUAD Multimode

Extremely Rugged & Lightweight OpticalCON QUAD NO4MX to NO4MX Multimode Tactical Snake Cables. Two Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications!
Ruggedized OpticalCON QUAD fiber optic cables designed for field production in outside broadcast, rental houses and more. OpticalCON assemblies are COCA factory terminated and machine polished in the state of the art Fiber Optic Lab.

The cables are exclusively assembled using the Neutrik OpticalCON ADVANCED system. OpticalCON ADVANCED further enhances the original OpticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.

Camplex QUAD Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable data transfer with this 100' OpticalCON QUAD fiber optic cable.
  • Use for digital audio, video, and networking in demanding environments.
  • Built with a durable polyurethane jacket, this tactical cable withstands harsh use.
  • Features Neutrik OpticalCON QUAD connectors for secure, high-quality connections.
  • Enjoy a long life with over 1000 cycles, reducing the need for frequent replacements.
  • Achieve optimal performance with low cable loss, ideal for critical applications.

What's in the box:

  • Camplex OpticalCON QUAD to OpticalCON QUAD Multimode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
