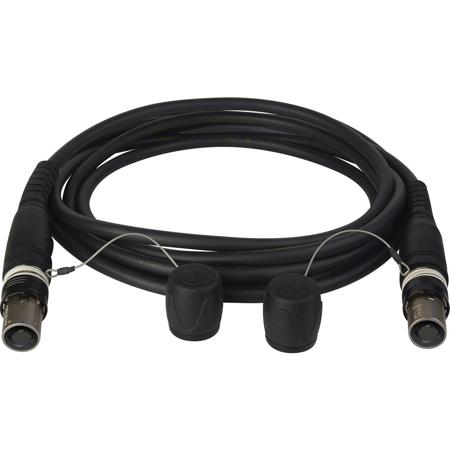

Camplex OpticalCON QUAD to OpticalCON QUAD Multimode Fiber Optic Tactical Cable, 328'

SKU: CPHFOC4M0328 MFR: HF-OC4M-0328
Earn VIP Reward Points

Key Features

  • This OpticalCON QUAD cable ensures fast data transfer for digital audio & video applications.
  • Built with a durable, tactical polyurethane jacket, this fiber optic cable withstands harsh use.
  • Enjoy wide compatibility with Neutrik OpticalCON QUAD connectors for secure connections.
  • Optimal 328' length provides flexible connectivity for lighting control and digital signage.
  • Secure connections guaranteed with this multimode fiber optic cable's superior cable retention force.
  • Benefit from the affordable price of this high-quality OpticalCON QUAD Ethernet cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Multimode Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4MX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4MX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    50 um OM3 multimode fiber

  • Cable Loss

    Less than 3 dB/km at 850 nm, Less than 1 dB/km at 1300 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    328' (100m)

About Camplex QUAD Multimode

Where professional audio and broadcast applications demand the utmost in reliability and performance, the OpticalCON QUAD NO4MX to NO4MX Multimode Tactical Snake Cables stand out. These rugged and lightweight fiber optic cables, measuring 328 feet in length, are specifically engineered for field production in outside broadcast environments, rental houses, and more.

Constructed with two fibers and devoid of electrical conductors, these cables are exclusively assembled using the advanced Neutrik OpticalCON system. This system further enhances the robustness of the original OpticalCON by integrating lockable and waterproof metal caps, as well as protective rubber guards. These features are particularly crucial for outdoor applications, ensuring the cables can withstand the elements and provide reliable performance over time.

In addition to their robust construction, these OpticalCON QUAD fiber optic cables are COCA factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. This meticulous process ensures the highest level of quality and performance, making these cables a trusted choice for professional use.

The cables also feature an ergonomic strain relief design, which not only improves cable protection but also enhances water resistance for long-term use. Plus, with color-coding options, these cables can be custom-built to meet specific coding requirements, offering an added level of convenience and customization.

In summary, the OpticalCON QUAD to OpticalCON QUAD Multimode Fiber Optic Tactical Cable, 328' is a high-performance solution designed to meet the demanding needs of broadcast and pro-audio applications.

Camplex QUAD Multimode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • Heavy Duty Tactical Reel with Side Reel Flange (TR version only)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • This OpticalCON QUAD cable ensures fast data transfer for digital audio & video applications.
  • Built with a durable, tactical polyurethane jacket, this fiber optic cable withstands harsh use.
  • Enjoy wide compatibility with Neutrik OpticalCON QUAD connectors for secure connections.
  • Optimal 328' length provides flexible connectivity for lighting control and digital signage.
  • Secure connections guaranteed with this multimode fiber optic cable's superior cable retention force.
  • Benefit from the affordable price of this high-quality OpticalCON QUAD Ethernet cable.

What's in the box:

  • Camplex OpticalCON QUAD to OpticalCON QUAD Multimode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
