Camplex opticalCON QUAD to QUAD UPC Multimode In-Line Coupler

SKU: CPHFOC4M4M MFR: HF-OC4M4M
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfers with this opticalCON QUAD to QUAD fiber coupler.
  • Experience minimal signal loss, less than 0.5dB, with this high-performance connection.
  • Built for durability, this Camplex coupler withstands over 1000 mating cycles easily.
  • This opticalCON QUAD coupler features a secure push-pull locking device for stability.
  • Compact and lightweight, this fiber optic coupler is perfect for on-the-go connectivity.
  • Enjoy broad compatibility; this multi-mode coupler integrates seamlessly into your setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex opticalCON Coupler Specifications

Electrical

Electrical

Jump to...
  • Contact resistance

    < 7 m Ohm

  • Dielectric strength

    1,5 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)

  • Rated voltage

    L < 50 V (1)

Mechanical

Jump to...
  • Insertion force

    < 45 N

  • Withdrawal force

    < 45 N

  • Lifetime

    > 1000 mating cycles

  • Locking device

    Push-Pull

Material

Jump to...
  • Contact plating

    0.2 microm Au over 2 microm Ni

  • Contacts

    Bronze (CuSn6)

  • Insert

    Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)

  • Shell

    AlMgSi 0.5, black plated

  • Split sleeve

    Ceramics

Optical

Jump to...
  • Insertion loss

    < 0.5 dB / connection

Physical

Jump to...
  • Dimensions

    5.44 x 1.13 x 1.63" (13.8 x 2.8 x 4.1cm )

  • Weight

    4.7 oz (133.2g)

About Camplex opticalCON Coupler

An essential tool for seamless signal transmission, the Camplex opticalCON QUAD to QUAD UPC Multimode In-Line Coupler is the professional's choice for extending the reach of multimode opticalCON QUAD cables. Engineered with precision and attention to detail, this durable coupler is housed in a robust, black powder-coated casing that withstands the rigors of field use, ensuring reliable performance in various environments.

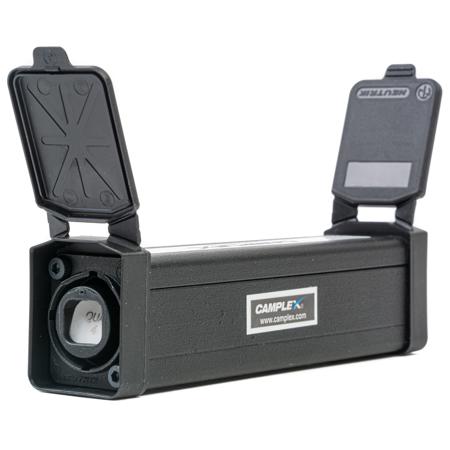

The advanced design of the HF-OC4M4M includes innovative flip-up dust covers that protect the connectors from contaminants, preserving the integrity of your connection. Additionally, each mating connector is equipped with an automatic shutter that further safeguards the delicate fiber ends against dust and damage, providing an extra layer of security for your valuable equipment.

Crafted by Camplex, a leader in fiber optic technology, this high-quality in-line coupler is a testament to the brand's commitment to producing advanced, reliable solutions for the industry. Whether you're involved in telecommunications, data transmission, or medical imaging, this coupler's ability to facilitate efficient light passage through connected fibers makes it an indispensable component in your setup.

Choose the Camplex opticalCON QUAD to QUAD UPC Multimode In-Line Coupler for its superior build and innovative features that ensure a stable, uninterrupted connection between your fiber optic cables.

Camplex opticalCON Coupler Features

  • Inline opticalCON Coupler with Minimal Loss
  • Durable Black Powder-Coated Aluminum Housing

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfers with this opticalCON QUAD to QUAD fiber coupler.
  • Experience minimal signal loss, less than 0.5dB, with this high-performance connection.
  • Built for durability, this Camplex coupler withstands over 1000 mating cycles easily.
  • This opticalCON QUAD coupler features a secure push-pull locking device for stability.
  • Compact and lightweight, this fiber optic coupler is perfect for on-the-go connectivity.
  • Enjoy broad compatibility; this multi-mode coupler integrates seamlessly into your setup.

What's in the box:

  • Camplex opticalCON QUAD to QUAD UPC Multimode In-Line Coupler
  • Camplex 1 Year Limited Warranty
