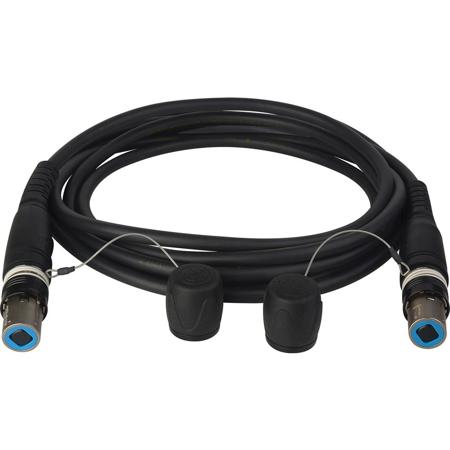

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 10'

SKU: CPHFOC4S0010 MFR: HF-OC4S-0010
Earn VIP Reward Points

Key Features

  • Ensure reliable data & networking with this 10' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable thrives in harsh environments & staging.
  • Experience superior connectivity with Neutrik OpticalCON QUAD connectors on both ends.
  • Singlemode fiber ensures high-performance digital audio & video signal transmission.
  • Enjoy peace of mind with a cable life exceeding 1000 cycles for long-term use.
  • This Camplex fiber optic cable offers broad application, from signage to lighting control.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Singlemode Outside Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    10' (3.1m)

About Camplex QUAD Singlemode Outside

You can rely on the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable for your high-speed data transmission needs. This durable and lightweight fiber optic tactical cable, designed by Camplex, is perfect for field production in outside broadcast, rental houses, and more.

Constructed with two fibers and devoid of electrical conductors, this 10-foot long cable is optimized for both point-to-point interconnections and multi-channel routing applications. It caters to the growing demand for fiber optic channels in various sectors, including Ethernet networking, security systems, and CCTV.

Our state-of-the-art fiber optic lab is recognized as a Certified OpticalCON Cable Assembler (COCA) by Neutrik, ensuring that our technicians adhere to the latest training and polishing standards. This certification guarantees that your cable is assembled with precision and expertise.

The OpticalCON system, based on LC connectors, eliminates potential weaknesses, ensuring a safe, dust-protected, and rugged connection. The OpticalCON QUAD system, with its four channels, is an upgrade from the proven OpticalCON DUO connection system.

The cable connector, housed in a rugged and durable all-metal casing, accommodates four PC optical channels. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. This ensures a secure and stable connection, even in challenging environments.

The optical connection is exceptionally well-protected against dirt and dust by an automatically operated sealing cover. The pre-assembled cable connector is not available as a single component, ensuring the integrity and reliability of the entire system.

Available in various lengths and packaging options, including a case, drum, or airspool, the OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable is a convenient and flexible solution for your data transmission needs.

Camplex QUAD Singlemode Outside Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data & networking with this 10' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable thrives in harsh environments & staging.
  • Experience superior connectivity with Neutrik OpticalCON QUAD connectors on both ends.
  • Singlemode fiber ensures high-performance digital audio & video signal transmission.
  • Enjoy peace of mind with a cable life exceeding 1000 cycles for long-term use.
  • This Camplex fiber optic cable offers broad application, from signage to lighting control.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
