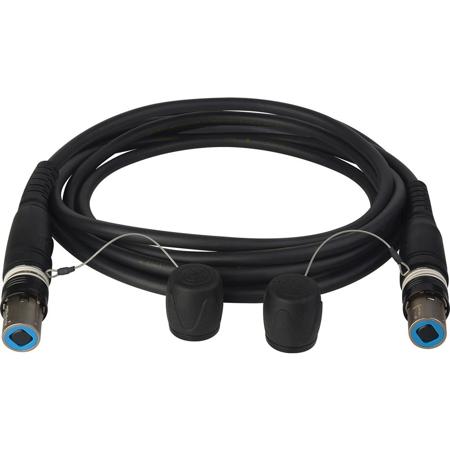

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 100'

SKU: CPHFOC4S0100 MFR: HF-OC4S-0100
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 100ft OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments and staging.
  • Singlemode fiber optic cable supports digital audio, video, and networking applications.
  • Enjoy a strong 500N cable retention force for secure and stable connectivity.
  • This OpticalCON QUAD cable offers minimal loss for superior signal integrity.
  • Compatible with JVC FS-790 cameras and Telecast CopperHead for versatile use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Singlemode Outside Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    100' (30.5m)

About Camplex QUAD Singlemode Outside

Take your field production to the next level with the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cables. Engineered for extreme ruggedness and lightweight flexibility, these cables are ideal for outside broadcasts, rental houses, and other demanding environments.

Constructed with two fiber optic channels and devoid of electrical conductors, these tactical cables are designed to deliver superior performance. They are assembled in a state-of-the-art fiber optic lab, certified by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This certification ensures that your cable is built to the highest standards, with the latest training and polishing techniques as outlined by Neutrik factory professionals.

The OpticalCON system is built on the robust foundation of LC connectors, but with enhanced features that eliminate common weaknesses. It guarantees a safe, dust-protected, and rugged connection, making it a reliable choice for challenging field conditions.

The OpticalCON QUAD system takes the proven OpticalCON DUO connection system a step further. With four channels, it is optimized for Point-to-Point interconnections and multi-channel routing applications, meeting the growing demand for fiber optic channels in modern production environments.

The OpticalCON QUAD cable connector houses four PC optical channels within a ruggedized, durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

Please note that the cable connector comes pre-assembled and is not available as a single component. The cable is available in various lengths and can be packed in a case, on a drum, or airspool, depending on your specific needs.

Experience the difference of superior connectivity with the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cables.

Camplex QUAD Singlemode Outside Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 100ft OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments and staging.
  • Singlemode fiber optic cable supports digital audio, video, and networking applications.
  • Enjoy a strong 500N cable retention force for secure and stable connectivity.
  • This OpticalCON QUAD cable offers minimal loss for superior signal integrity.
  • Compatible with JVC FS-790 cameras and Telecast CopperHead for versatile use.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
