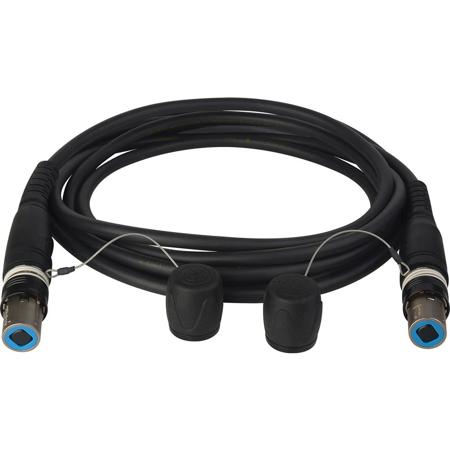

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 328'

SKU: CPHFOC4S0328 MFR: HF-OC4S-0328
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this 328' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments.
  • Reliable singlemode fiber ensures consistent performance for digital audio & video.
  • OpticalCON QUAD connectors offer secure connections with low insertion loss.
  • This Camplex fiber optic cable supports networking, lighting, & JVC FS-790 cameras.
  • Enjoy a long-lasting cable with a bend radius of 1.57" and 1000+ cycle lifetime.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Singlemode Outside Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    328' (100m)

About Camplex QUAD Singlemode Outside

Extremely Rugged & Lightweight OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cables. Two Fibers only, no electrical conductors.
Ruggedized OpticalCON QUAD fiber optic tactical cables designed for field production in outside broadcast, rental houses and more. The state of the art fiber optic lab has been designated by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This ensures that the technicians are building your cable to the latest training and polishing standards as outlined by Neutrik factory professionals.

The OpticalCON system is based on LC connectors but eliminates its weakness and guarantees a safe, dust protected and rugged connection. The OpticalCON QUAD is based on the proven OpticalCON DUO connection system but with four channels it is optimized for Point-to-Point interconnections and multi-channel routing applications. The system copes with the increasing need for fiber optic channels.

The OpticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Camplex QUAD Singlemode Outside Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience fast data transfer with this 328' OpticalCON QUAD fiber optic cable.
  • Built for durability, this tactical fiber cable withstands harsh environments.
  • Reliable singlemode fiber ensures consistent performance for digital audio & video.
  • OpticalCON QUAD connectors offer secure connections with low insertion loss.
  • This Camplex fiber optic cable supports networking, lighting, & JVC FS-790 cameras.
  • Enjoy a long-lasting cable with a bend radius of 1.57" and 1000+ cycle lifetime.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
