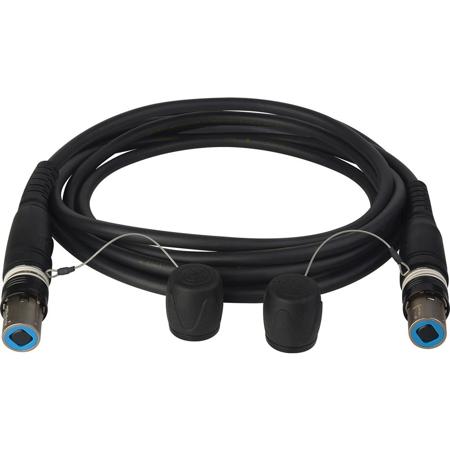

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 656'

SKU: CPHFOC4S0656 MFR: HF-OC4S-0656
Earn VIP Reward Points

Key Features

  • Ensure fast data with this 656' OpticalCON QUAD fiber optic tactical cable.
  • Built for durability: Polyurethane jacket & rugged OpticalCON QUAD connectors.
  • Singlemode fiber optic cable supports digital audio & video applications.
  • Use in harsh environments: -13 to 167°F operating temperature range.
  • Reliable data: Less than 0.5 dB/km cable loss at 1310/1550 nm.
  • Compatible with JVC FS-790 cameras and Telecast CopperHead systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex QUAD Singlemode Outside Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    JVC FS-790 Cameras
    Telecast CopperHead, SHED-HDX
    MultiDyne Silverback

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Connector 2

    Neutrik OpticalCON QUAD NO4SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    656' (200m)

About Camplex QUAD Singlemode Outside

What sets the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable apart is its exceptional durability and lightweight design, tailored for the rigorous demands of field production in outside broadcast environments, rental houses, and similar applications. This 656-foot tactical fiber optic cable is engineered without electrical conductors and features just two fibers, ensuring a streamlined and efficient connection for your high-definition audio and video needs.

Crafted in a state-of-the-art fiber optic lab, which has earned the distinction of being a Certified OpticalCON Cable Assembler (COCA), this cable is constructed under the meticulous standards set by Neutrik factory professionals. The certification guarantees that each cable is assembled with the utmost precision, adhering to the latest training and polishing protocols.

The OpticalCON QUAD system enhances the traditional LC connector design, addressing its vulnerabilities to offer a secure, dust-protected, and robust connection. This system is an evolution of the OpticalCON DUO, but with four channels, the OpticalCON QUAD is specifically optimized for both Point-to-Point interconnections and sophisticated multi-channel routing applications, meeting the growing demand for multiple fiber optic channels.

The connectors of the OpticalCON QUAD cable boast a rugged, all-metal housing that safeguards four PC optical channels, which are based on the reliable and established LC connectivity. The design features a user-friendly spring-loaded push-pull locking mechanism and superior cable retention, supported by aramid yarn, for a secure and stable link.

Protection against environmental contaminants is paramount, and the OpticalCON QUAD cable excels in this area with an automatically operated sealing cover that shields the optical connection from dirt and dust. Pre-assembled for convenience, the cable connector is not sold separately, ensuring that the integrity of the connection is maintained straight out of the box.

Available in various lengths to suit diverse project requirements, the OpticalCON QUAD Singlemode Tactical Cable is delivered in a protective case, on a drum, or airspool, depending on the chosen length and customer needs. This ensures that the cable remains in pristine condition during transport and storage, ready for deployment in even the most challenging field conditions.

Camplex QUAD Singlemode Outside Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • COCA Factory Terminated

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure fast data with this 656' OpticalCON QUAD fiber optic tactical cable.
  • Built for durability: Polyurethane jacket & rugged OpticalCON QUAD connectors.
  • Singlemode fiber optic cable supports digital audio & video applications.
  • Use in harsh environments: -13 to 167°F operating temperature range.
  • Reliable data: Less than 0.5 dB/km cable loss at 1310/1550 nm.
  • Compatible with JVC FS-790 cameras and Telecast CopperHead systems.

What's in the box:

  • Camplex OpticalCON QUAD to QUAD Singlemode Fiber Optic Tactical Cable
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
