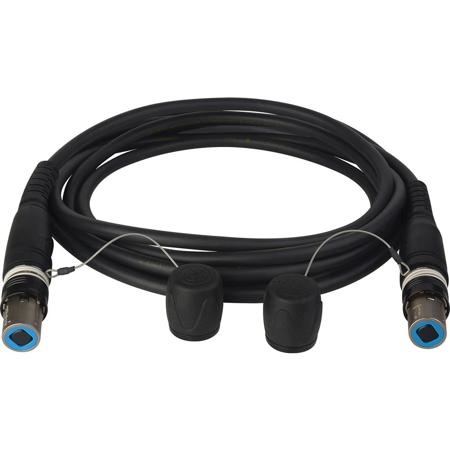

Camplex OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable, 1000'
SKU: CPHFOC4S1000 MFR: HF-OC4S-1000
Earn VIP Reward PointsKey Features
- Experience robust connectivity with this 1000ft OpticalCON QUAD fiber optic cable.
- Ensure top performance with our singlemode fiber optic tactical cable for demanding environments.
- Enjoy high durability with a polyurethane jacket, designed for digital audio and video use.
- This Camplex fiber optic cable supports digital signage and data networking applications.
- Benefit from a reliable connection with less than 0.5 dB/connector loss for optimal use.
- This 1000' fiber optic cable offers broad compatibility for lighting control & JVC FS-790 cameras.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$209.99
3 Year
$299.99
4 Year
$359.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Camplex QUAD Singlemode Outside
Under the umbrella of high-quality fiber optic cables, the OpticalCON QUAD NO4SX to NO4SX Singlemode Tactical Snake Cable stands out. This 1000' cable, crafted for durability and lightweight performance, is designed with two fibers and devoid of electrical conductors, making it an ideal choice for field production in outside broadcast, rental houses, and similar environments.
This product is a result of meticulous craftsmanship from our state-of-the-art fiber optic lab, recognized by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This certification ensures that our technicians adhere to the latest training and polishing standards set by Neutrik factory professionals, guaranteeing a top-notch product for our customers.
The OpticalCON system, upon which this cable is based, improves upon the traditional LC connectors by eliminating their weaknesses. It offers a safe, dust-protected, and rugged connection, making it a reliable choice for demanding conditions.
The OpticalCON QUAD system, a step up from the OpticalCON DUO, is optimized for Point-to-Point interconnections and multi-channel routing applications. With four channels, it effectively addresses the growing demand for fiber optic channels in various industries.
The OpticalCON QUAD cable connector houses four PC optical channels, protected by a rugged and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn, ensuring a secure and stable connection.
An automatically operated sealing cover provides exceptional protection against dirt and dust, safeguarding the optical connection. The cable connector comes pre-assembled and is not available as a single component, ensuring ease of use and installation.
Available in various lengths and packaging options, including a case, drum, or airspool, the OpticalCON QUAD to QUAD Singlemode Outside Fiber Optic Tactical Cable is a versatile solution for your fiber optic needs.
Camplex QUAD Singlemode Outside Features
- OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
- Machine polishing processes provide exceptionally low return loss and insertion loss
- OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
- APC Polishing types available upon request
- Machine polished and tested end faces
- Tactical tight buffered PUR Cable
- Optical Shutter Mechanism for added protection
- Typical back reflection less than-55dB
- COCA Factory Terminated
Warranty Information
This product has a limited warranty of 12 months.
