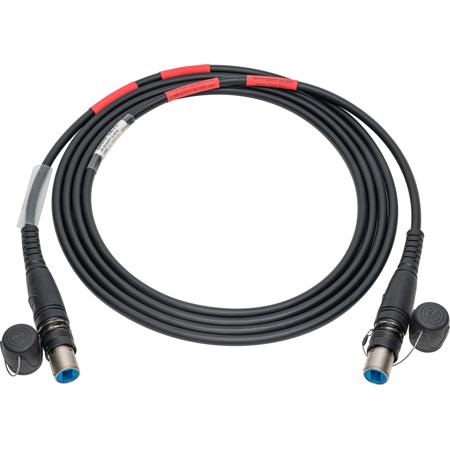

Camplex 10' opticalCON DUO SMPTE 311 Single Mode Fiber Optic Studio Cable
SKU: CPHSMPTS0010 MFR: HF-OCSMPT-S-0010
Earn VIP Reward PointsKey Features
- Experience rapid data transfer with our 10' Fiber Optic studio cable for seamless broadcasts.
- Built tough: This durable SMPTE 311 cable features a Thermo-Plastic Elastomer jacket.
- Enjoy reliable connectivity with OpticalCON DUO connectors, perfect for studio environments.
- Single Mode Fiber Optic cable ensures high-quality signal transmission over the 10-foot length.
- A minimum 2.5" bend radius offers flexibility, preventing damage to this robust studio cable.
- This 10 ft Ethernet cable is compatible, ensuring a stable link for your broadcast equipment.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$174.99
3 Year
$224.99
4 Year
$299.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Camplex 10' opticalCON DUO SMPTE 311 Single Mode Fiber Optic Studio Cable
Overcome the challenges of long-distance audio and video transmission with the 10' opticalCON DUO SMPTE 311 Single Mode Fiber Optic Studio Cable. This high-quality, durable cable is expertly crafted by Camplex, a trusted name in the industry, ensuring reliable performance for all your professional broadcasting needs.
This studio-grade cable is designed with the OpticalCON DUO NO2SX to NO2SX Single Mode Hybrid SMPTE 311M configuration, specifically tailored for indoor studio use. Each assembly is meticulously factory terminated and machine polished in our advanced Fiber Optic Lab, ensuring exceptionally low return loss and insertion loss for optimal signal integrity.
The OpticalCON DUO SMPTE 311 cable is constructed with two single mode fiber UPC, two AWG24, and four AWG20 or (2x17AWG) stranded copper power conductors. It also features an overall copper braided shield and a stainless steel strength member for enhanced durability and signal protection.
The cable's ruggedized connector body, common LC contacts, and mechanical shutter system work together to shield against end-face contamination, ensuring your connections remain clean and clear. Please note that this cable is not compatible with the SMPTE 304M standard.
Designed to meet the specific conditions according to IEC 60664-1, this cable is suitable for indoor (studio) camera links, considering factors like pollution degree 1, overvoltage category 1, and rated voltage.
Our cables are exclusively assembled using the Neutrik opticalCON ADVANCED system, which further enhances the original opticalCON by adding lockable and waterproof metal caps as well as rubber guards. This makes the cable not only more robust but also flexible and sturdy, ideal for use in demanding professional environments such as live events and studio settings.
Choose the 10' opticalCON DUO SMPTE 311 Single Mode Fiber Optic Studio Cable for a reliable, high-quality solution to your professional audio and video transmission needs.
Camplex 10' opticalCON DUO SMPTE 311 Single Mode Fiber Optic Studio Cable Features
- 2-Channel Fiber Optic Connection System
- Accommodates Standard optical LC-Duplex Connectors
- Reliable Push-Pull Locking Mechanism
- Rugged Connector with Heavy Duty Cable Retention
- Dust and Dirt Protection with Automatic Sealing Shutter
- Easy to Clean Connectors
- Flexible PVC Blend Jacket
- Interferometrically Tested to GR-326-CORE Endface Standards
- Mohawk M96040 SMPTE 311M Compliant Cable
- 2 x Tight Buffered Single Mode Fibers
- Four 20 AWG (19x32) & Two 24 AWG (7x32) Tinned Copper Conductors
- Overall Tinned Copper Braid Shield
- Upjacketed Stranded Steel Member
Warranty Information
This product has a limited warranty of 12 months.
