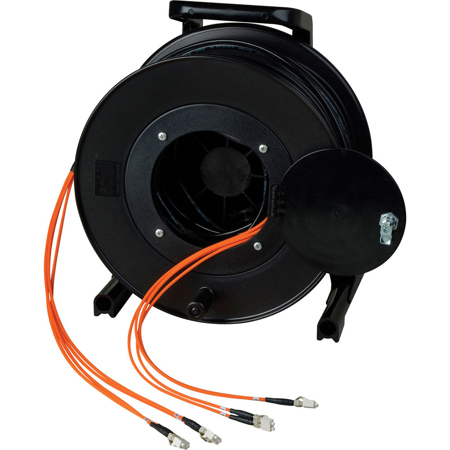

Camplex 1750' 12-Channel OM1 LC Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel, Orange

SKU: CPLCM11750 MFR: HF-TR12LCM1-1750
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this 1750' OM1 fiber optic tactical snake cable.
  • Built for durability: This tactical cable withstands 200 impacts and 2000 flex cycles.
  • This 12-channel fiber optic cable ensures reliable connections with low return loss.
  • Get superior Gigabit Ethernet performance up to 1969' with this shielded cable.
  • The LC connectors offer a secure and efficient link for all your networking needs.
  • Operates in extreme temps (-67 to 185°F) making it a versatile tactical cable solution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Camplex 1750' 12-Channel OM1 LC Multimode Tactical Snake Cable Reel, Orange Specifications

  • Cable Type

    12-channel, fiber optic, tactical, round
    Polyurethane jacket, 36" (94 cm) orange fanouts

  • Fiber Type

    OM1 62.5 um multimode

  • Connectors

    12x LC, machine polished UPC

  • Impact Resistance

    200 impacts (EIA/TiA-455-25A)

  • Crush Resistance

    440 N/cm

  • Flex Resistance

    2000 cycles

  • Return Loss

    < -55 dB typical

  • Gigabit Ethernet Max Distance

    1969' / 600.16m at 1310 nm

  • Attenuation

    < 1.5 dB / km at 1310 nm

  • Operating Temperature

    -67 to 185 deg. F / -55 to 85 deg. C

  • Storage Temperature

    -94 to 185 deg. F / -70 to 85 deg. C

  • Length

    1750' / 533.41m

About Camplex 1750' 12-Channel OM1 LC Multimode Tactical Snake Cable Reel, Orange

Why settle for less when you can have the best with our 1750' 12-Channel OM1 LC Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel in vibrant orange This high-quality, durable product is designed specifically for broadcast and pro-audio applications, making it an essential tool for field production in outside broadcast, rental houses, and more.

Our fiber optic cable reel is not just rugged and lightweight, but it's also highly flexible, thanks to its tight-buffered tactical cables. These cables are reinforced with internal aramid strength members, providing exceptional crush resistance in high traffic areas when handled properly. The polyurethane outer sheath is designed to withstand crushing by both military tanks and Outside Broadcast vehicles, ensuring the product's longevity.

Each assembly is multi-stage machine polished and tested, guaranteeing top-notch quality. The cable reel is built in our Camplex Fiber Shop with OCC Multichannel Tactical Cable and heavy-duty connectors with dust caps, ensuring reliable and sturdy connections.

The individual channels are ruggedized with orange Techflex protection and a 36-inch fanout, providing additional protection and ease of use. The compact, round cable design makes transportation and deployment a breeze, even in adverse environments where reduced size and weight are crucial.

The helically stranded cable core offers flexibility, deployment survivability, and exceptional mechanical protection for the optical fibers. This product has been tested and is currently in use in military data communications applications worldwide, proving its reliability and versatility.

This fiber optic cable reel can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments. It is suitable for use in outside broadcast, industrial, mining, and petrochemical environments, thanks to its chemical resistance.

The cable reel meets and exceeds MIL-PRF-85045 specifications, ensuring you're getting a product that adheres to the highest standards. The fanouts are color-coded with orange Techflex for added protection, and the cable features an extremely strong, lightweight, rugged tight-buffered cable for commercial, broadcast, and military applications.

The polyurethane jacket offers abrasion, cut, and chemical resistance, making it a resilient and durable choice for any environment. The machine-polished UPC Connectors ensure minimal back reflection, enhancing the performance of your fiber optic network.

Note: Our Camplex Tactical Fiber Snake Reel includes broadcast fiber optic cable reels with a connector protection cavity and a hinged latching door. Each reel has been carefully selected to ensure proper support and the critical bend radius required by fiber optic cables. For optimal performance and longevity, we recommend storing tactical fiber optic cables over 25 feet on a cable reel. Custom lengths and configurations are always available to meet your specific needs.

Camplex 1750' 12-Channel OM1 LC Multimode Tactical Snake Cable Reel, Orange Features

  • High-quality 1750' 12-Channel OM1 LC Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel in vibrant orange
  • Durable and flexible design with internal aramid strength members for crush resistance
  • Suitable for broadcast, pro-audio applications, outside broadcast, industrial, mining, and petrochemical environments
  • Polyurethane jacket for superior abrasion, cut, and chemical resistance
  • Machine-polished UPC Connectors for minimal back reflection and enhanced performance
  • Includes broadcast fiber optic cable reels with connector protection cavity and hinged latching door for optimal support and protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience fast data transfer with this 1750' OM1 fiber optic tactical snake cable.
  • Built for durability: This tactical cable withstands 200 impacts and 2000 flex cycles.
  • This 12-channel fiber optic cable ensures reliable connections with low return loss.
  • Get superior Gigabit Ethernet performance up to 1969' with this shielded cable.
  • The LC connectors offer a secure and efficient link for all your networking needs.
  • Operates in extreme temps (-67 to 185°F) making it a versatile tactical cable solution.

What's in the box:

  • Camplex 1750' 12-Channel OM1 LC Multimode 62.5 Micron Fiber Optic Tactical Snake Cable Reel
  • Camplex 1 Year Limited Warranty
