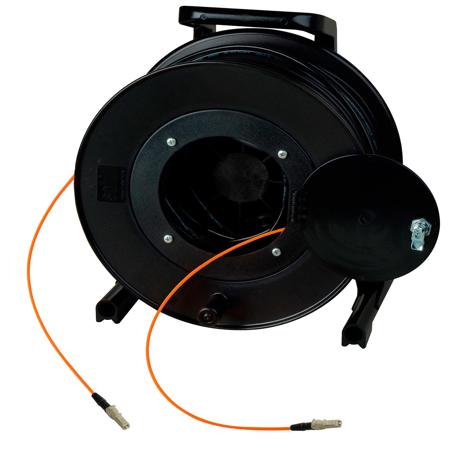

Camplex 1000' TAC1 Simplex 1-Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel, Orange

SKU: CPM1LC1000 MFR: HF-TR1M1-LC-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1000' OM1 Multimode LC Fiber Optic Cable.
  • Built for durability, this tactical cable reel withstands demanding field applications.
  • Experience high bandwidth with a 200/500 MHz-km rating for fast data transmission.
  • The orange tactical cable is easy to spot, preventing accidental damage on site.
  • This fiber optic cable supports Gigabit Ethernet up to 902.2' for versatile use.
  • Enjoy peace of mind with a limited warranty on your Camplex tactical cable reel.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode LC Tactical Cable Reel,Orange Specifications

  • Holds

    Holds 1,500' (457.2 m), of 0.11" (3 mm) O.D. Cable
    Holds 500' (152.4 m), of 0.21" (5 mm) O.D. Cable
    Holds 225' (68.58 m), of 0.37" (9.5 mm) O.D. Cable
    Holds 125' (38.1 m), of 0.5" (12.7 mm) O.D. Cable

  • Designation

    OM1 ISO/IEC 11801

  • Core/Cladding Diameter

    62.5/125 um

  • Aperture

    0.275

  • Wavelength

    850/1310 nm

  • Distance

    Gigabit Ethernet Distance: 902.2/1804.4' (275/550 m)
    10-Gigabit Ethernet Distance: 108.2/10826.7' (33/300 m)

  • Attenuation

    3.5/1.5 dB/km

  • Bandwidth

    Minimum Laser EMB Bandwidth: 200/500 MHz-km
    Minimum OFL LED Bandwidth: 200/500 MHz-km

  • Diameter

    Primary Coating Diameter: 500 um
    Secondary Buffer Diameter: 900 um

  • Proof Test Level

    100 kpsi

  • Reel Diameter

    Hub: 6.5" / 16.51cm

  • Outside

    Hub: 12.5" / 31.75cm

  • Width

    Foot base: 10.6" / 26.92cm

  • Height

    14.3" / 36.32cm

  • Length

    1000' / 304.80m

About Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode LC Tactical Cable Reel,Orange

From field production to rental houses, the 1000' TAC1 Simplex 1-Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel is a robust solution designed for multiple deployments in outside broadcast environments. This high-quality, durable fiber optic cable is engineered with internal aramid strength members, offering exceptional crush resistance in high traffic areas when handled correctly.

Encased in a sturdy polyurethane outer sheath, this cable is built to withstand the pressure exerted by both military tanks and Outside Broadcast vehicles, demonstrating its superior strength and reliability. Each assembly undergoes multi-stage machine polishing and rigorous testing to ensure optimal performance in various conditions.

This tactical cable reel is not only strong and lightweight but also extremely durable, designed to withstand impact and crush even after deployment. It operates efficiently within a wide temperature range, typically from -55 Degree C to 85 Degree C, making it suitable for use in diverse environments.

The cable features a 500-microm primary acrylate buffer with a 900um secondary hard elastomeric buffer (Ultra-Fox Plus), enhancing its resilience and impact resistance. The orange-colored fiber optic cable extends up to 1000 ft (305m), making it ideal for networking or other applications that require long-distance data transmission using light signals.

The package includes a JACKREEL-F4 fiber optic cable reel with a connector protection cavity and a hinged latching door. Each Jackreel is meticulously selected to provide the necessary support and maintain the critical bend radius required by fiber optic cables. For optimal storage and longevity, it is recommended that tactical fiber optic cables over 25 feet be stored on a cable reel.

In summary, the 1000' TAC1 Simplex 1-Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel is a reliable, high-quality solution for your data transmission needs, offering durability, ease of use, and exceptional performance.

Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode LC Tactical Cable Reel,Orange Features

  • Durable OM1 Multimode LC Fiber Optic Cable, perfect for outside broadcast and field production
  • High crush resistance with internal aramid strength members and polyurethane sheath
  • Wide operating temperature range from -55°C to 85°C for versatile use
  • Enhanced impact resistance with 500 microm primary acrylate and 900um Ultra-Fox Plus buffer
  • Includes JACKREEL-F4 reel with connector protection for optimal cable management
  • Robust and flexible design, ideal for networking and long-distance data transmission

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1000' OM1 Multimode LC Fiber Optic Cable.
  • Built for durability, this tactical cable reel withstands demanding field applications.
  • Experience high bandwidth with a 200/500 MHz-km rating for fast data transmission.
  • The orange tactical cable is easy to spot, preventing accidental damage on site.
  • This fiber optic cable supports Gigabit Ethernet up to 902.2' for versatile use.
  • Enjoy peace of mind with a limited warranty on your Camplex tactical cable reel.

What's in the box:

  • Camplex 1000' TAC1 Simplex 1-Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
