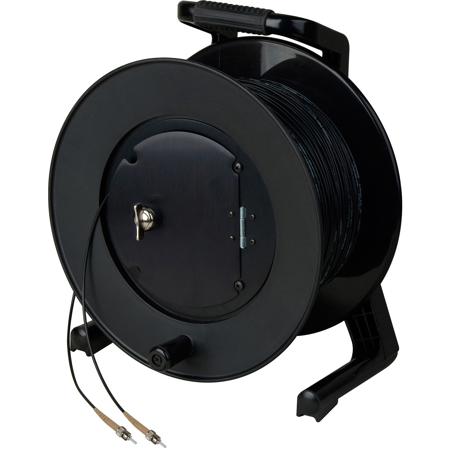

Camplex 1000' TAC1 Simplex 1-Channel OM1 Multimode ST Fiber Optic Tactical Cable Reel, Orange

SKU: CPM1ST1000 MFR: HF-TR1M1-ST-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 1000' OM1 Multimode Fiber Optic cable reel.
  • Experience high performance connectivity with a 62.5/125 um core/cladding diameter.
  • Enjoy durable tactical cable design, perfect for demanding field applications.
  • This Fiber Optic Tactical Cable supports Gigabit Ethernet up to 902.2' (275m).
  • Benefit from a secure and robust fiber optic connection with ST connectors.
  • Manage cable easily; this Camplex reel holds up to 1000' of tactical fiber cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode ST Tactical Cable Reel,Orange Specifications

  • Holds

    Holds 1,500' (457.2 m), of 0.11" (3 mm) O.D. Cable
    Holds 500' (152.4 m), of 0.21" (5 mm) O.D. Cable
    Holds 225' (68.58 m), of 0.37" (9.5 mm) O.D. Cable
    Holds 125' (38.1 m), of 0.5" (12.7 mm) O.D. Cable

  • Designation

    OM1 ISO/IEC 11801

  • Core/Cladding Diameter

    62.5/125 um

  • Aperture

    0.275

  • Wavelength

    850/1310 nm

  • Distance

    Gigabit Ethernet Distance: 902.2/1804.4' (275/550 m)
    10-Gigabit Ethernet Distance: 108.2/10826.7' (33/300 m)

  • Attenuation

    3.5/1.5 dB/km

  • Bandwidth

    Minimum Laser EMB Bandwidth: 200/500 MHz-km
    Minimum OFL LED Bandwidth: 200/500 MHz-km

  • Diameter

    Primary Coating Diameter: 500 um
    Secondary Buffer Diameter: 900 um

  • Proof Test Level

    100 kpsi

  • Reel Diameter

    Hub: 6.5" / 16.51cm

  • Outside

    Hub: 12.5" / 31.75cm

  • Width

    Foot base: 10.6" / 26.92cm

  • Height

    14.3" / 36.32cm

  • Length

    1000' / 304.80m

About Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode ST Tactical Cable Reel,Orange

While specifically engineered for field production in outside broadcast and rental houses, the 1000' TAC1 Simplex 1-Channel OM1 Multimode ST Fiber Optic Tactical Cable Reel is a versatile, high-quality solution for a variety of networking applications. This durable, orange fiber optic cable reel is designed for multiple deployments, offering reliable performance in demanding environments.

Constructed with a robust polyurethane outer sheath, this cable is designed to withstand crushing by military tanks and Outside Broadcast vehicles, ensuring its longevity even in high traffic areas. Internally, aramid strength members provide additional crush resistance, making this cable not only strong but also resilient.

The cable's multi-stage machine polishing and testing process guarantees optimal performance for broadcast deployable applications. With an indoor/outdoor rated jacket and a wide operating temperature range of -55 Degree C to 85 Degree C, this cable is suitable for use in various environmental conditions.

The 500-micron primary acrylate buffer with a 900um secondary hard elastomeric buffer (Ultra-Fox Plus) enhances the cable's crush and impact resistance. The Core-Locked outer jacket further boosts its durability, ensuring it can withstand crush and impact even after deployment.

Lightweight yet extremely sturdy, this cable reel is an excellent choice for Ethernet cable installation in LAN, WAN, CATV, and telecommunications applications. Each reel includes a JACKREEL-F4 fiber optic cable reel with a connector protection cavity and a hinged latching door, ensuring the critical bend radius required by fiber optic cables is maintained.

Please note that for optimal performance and longevity, it is recommended that tactical fiber optic cables over 25 feet be stored on a cable reel. Experience the reliability and versatility of the 1000' TAC1 Simplex 1-Channel OM1 Multimode ST Fiber Optic Tactical Cable Reel, a testament to Camplex's commitment to delivering high-quality, durable fiber optic cables.

Camplex 1000' TAC1 Simplex 1-CH OM1 Multimode ST Tactical Cable Reel,Orange Features

  • Durable, high-quality 1000' TAC1 Simplex 1-Channel OM1 Multimode ST Fiber Optic Tactical Cable Reel
  • Robust polyurethane outer sheath & internal aramid strength members for enhanced crush resistance
  • Suitable for multiple deployments in field production, outside broadcast, and rental houses
  • Wide operating temperature range from -55 Degree C to 85 Degree C, suitable for various environmental conditions
  • Includes JACKREEL-F4 fiber optic cable reels with connector protection cavity and hinged latching door
  • Ideal for Ethernet cable installation in LAN, WAN, CATV, and telecommunications applications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data transfer with this 1000' OM1 Multimode Fiber Optic cable reel.
  • Experience high performance connectivity with a 62.5/125 um core/cladding diameter.
  • Enjoy durable tactical cable design, perfect for demanding field applications.
  • This Fiber Optic Tactical Cable supports Gigabit Ethernet up to 902.2' (275m).
  • Benefit from a secure and robust fiber optic connection with ST connectors.
  • Manage cable easily; this Camplex reel holds up to 1000' of tactical fiber cable.

What's in the box:

  • Camplex 1000' TAC1 Simplex 1-Channel OM1 Multimode ST Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
