Camplex 1000' TAC1 Simplex 1-CH OM3 Multimode ST Fiber Optic Tactical Cable Reel Specifications

  • Industry Standard Designation

    Laser Optimized OM3 ISO/IEC 11801

  • Core/Cladding Diameter

    50/125 um

  • Numeric Aperture

    0.2

  • Wavelength

    850/1310nm

  • Gigabit Ethernet Distance

    1000/600m

  • Ethernet Distance (10-Gigabit)

    300/300m

  • Maximum Cabled Attenuation

    3.5/1.5 dB/km

  • Minimum Laser EMB Bandwidth

    2000/500 MHz-km

  • Minimum OFL LED Bandwidth

    1500/500 MHz-km

  • Primary Coating Diameter

    500 um

  • Secondary Buffer Diameter

    900 um

  • Proof Test Level

    100 kpsi

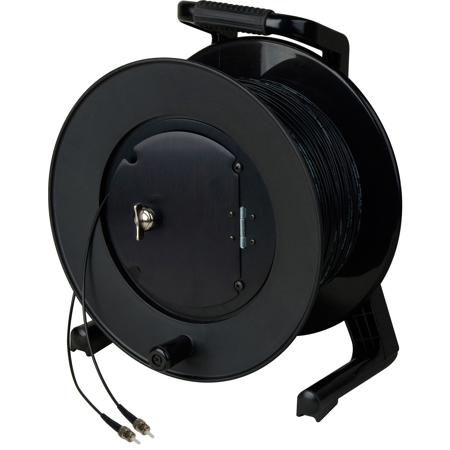

About Camplex 1000' TAC1 Simplex 1-CH OM3 Multimode ST Fiber Optic Tactical Cable Reel

Extremely Rugged & Lightweight 1-Channel OM3 Aqua Multimode Tactical Fiber Snakes Designed with ST Connectors for Broadcast & Pro-Audio Applications! Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles.

All assemblies multi-stage machine polished and tested for <-55db RL with test results for each channel supplied with each cable. Built in-house at their state-of-the-art LEMO, opticalCON and Canare trained fiber shop with full repair services available.

Note

Their Tactical Fiber Snake Reel Included a JACKREEL-F4 fiber optic cable reels with connector protection cavity and hinged latching door. Each Jackreel has been carefully selected to ensure proper support and critical bend radius required by fiber optic cables. They recommend tactical fiber optic cables over 25 feet be stored on a cable reel. Custom Lengths & Configurations Always Available!

Camplex 1000' TAC1 Simplex 1-CH OM3 Multimode ST Fiber Optic Tactical Cable Reel Features

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL less than-55dB and IL less than 0.25dB
  • Wide temperature range (typically -55½C to 85½C)
  • 500um primary acrylate buffer with 900um secondary hard elastomeric buffer (Ultra-Fox Plus)
  • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
  • Designed to withstand crush and impact after deployment
  • Strong, lightweight and extremely durable cable

Key Features

  • Broadcast Deployable
  • Indoor/Outdoor rated jacket
  • Typical RL <-55dB and IL<0.25dB
  • Wide temperature range (typically -55½ C to 85½ C)
  • 500um primary acrylate buffer
  • Designed to withstand crush and impact after deployment

What's in the box:

  • Camplex 1000' TAC1 Simplex 1-Channel OM3 Multimode ST Fiber Optic Tactical Cable Reel
  • Camplex 1 Year Limited Warranty
