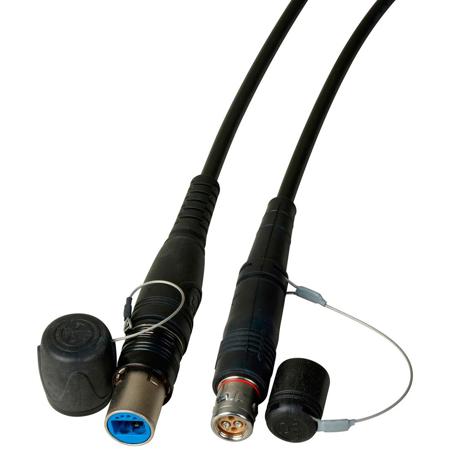

Camplex 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2FUW0164 MFR: HF-OC2FUW-0164
Earn VIP Reward Points

Key Features

  • Ensure high-resolution video with this SMPTE 311M fiber optic cable, designed for optimal broadcast clarity.
  • Experience low latency signal transmission using our opticalCON DUO cable, perfect for live video production setups.
  • Enjoy broad compatibility with LEMO FUW connectors, integrating seamlessly into professional video equipment.
  • Achieve good stability in your video feeds with rugged aramid yarn & stainless steel strength members, built to last.
  • Rely on dependable support with our 164' singlemode fiber optic cable, rigorously tested for consistent performance.
  • Simplify setup with the Neutrik opticalCON DUO, offering easy connections for fast deployment in any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$77.99

3 Year

$119.99

4 Year

$155.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    164' / 49.99m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    FUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

Bring unparalleled performance and reliability to your professional broadcast setup with the 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable. Engineered by Camplex, a leader in high-quality fiber optic technology, this cable is designed to meet the rigorous demands of outside broadcasting and AV applications.

Crafted with precision, the opticalCON DUO NO2SX to LEMO FUW 304M Single-mode Hybrid Cable is factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. The Neutrik opticalCON assemblies ensure a robust connection, featuring a ruggedized connector body with common LC contacts and a mechanical shutter system that effectively shields against end face contamination.

This durable cable is constructed with 2 Single-mode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, all encased in an overall copper braided shield with a stainless steel strength member. The result is a cable that is not only flexible and versatile but also offers exceptionally low return loss and insertion loss, thanks to the meticulous machine polishing processes.

The opticalCON ADVANCED system further enhances the original opticalCON by adding lockable and waterproofed metal caps, rubber guards, and an ergonomic cable strain relief. These features significantly improve cable protection, water resistance, and ease of use, especially in outdoor and harsh environments.

With its waterproof rating according to IP65 when mated, this cable ensures excellent dust and dirt protection due to its automatic sealing shutter with a silicone gasket. The reliable Push-Pull locking mechanism ensures secure connections, while the easy-to-clean design requires no tools, making maintenance straightforward.

This fiber optic cable is suitable for indoor (studio) camera links, adhering to specific conditions according to IEC 60664-1, including pollution degree 1, overvoltage category 1, and rated voltage. It is not compatible with the SMPTE 304M standard but offers a versatile solution for interconnecting AV camera and CCU systems, adapting Lemo to opticalCON SMPTE patching systems, and is compatible with Telecast, JFS, and Nemal assemblies.

Choose the 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable for a reliable, high-quality connection that ensures your broadcast and AV signals are transmitted with clarity and precision over long distances.

Camplex 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • 164' opticalCON DUO to LEMO FUW SMPTE 311 cable for professional broadcast reliability
  • Factory terminated and machine-polished for optimal signal integrity
  • Ruggedized construction with Neutrik opticalCON assemblies for field deployment
  • Waterproof and dustproof design rated to IP65 for outdoor applications
  • Automatic sealing shutter with silicone gasket for superior end face protection
  • Compatible with a range of systems including Telecast, JFS, and Nemal assemblies

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure high-resolution video with this SMPTE 311M fiber optic cable, designed for optimal broadcast clarity.
  • Experience low latency signal transmission using our opticalCON DUO cable, perfect for live video production setups.
  • Enjoy broad compatibility with LEMO FUW connectors, integrating seamlessly into professional video equipment.
  • Achieve good stability in your video feeds with rugged aramid yarn & stainless steel strength members, built to last.
  • Rely on dependable support with our 164' singlemode fiber optic cable, rigorously tested for consistent performance.
  • Simplify setup with the Neutrik opticalCON DUO, offering easy connections for fast deployment in any environment.

What's in the box:

  • Camplex 164' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
