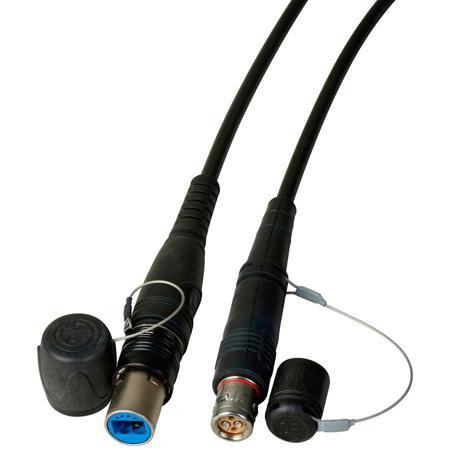

Camplex 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2FUW0328 MFR: HF-OC2FUW-0328
Earn VIP Reward Points

Key Features

  • Ensure stable streaming with this 328' SMPTE 311M fiber optic cable.
  • Experience wide compatibility using opticalCON DUO to LEMO FUW connectors.
  • Enjoy high-resolution video with low latency via 9um singlemode fiber.
  • This video capture cable supports good audio and data with 24 AWG conductors.
  • Benefit from easy setup with Neutrik opticalCon DUO connectors.
  • Rely on durable video transfer, tested to >1000 cycles for a long lifetime.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$149.99

4 Year

$194.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    328' / 99.98m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    FUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

Just imagine the possibilities with the 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable. This high-quality, durable product is designed by Camplex, a brand renowned for its reliable and versatile electronics. It features a LEMO FUW interface, a standard in the industry known for its robustness and dependability.

This Singlemode Fiber Optic Cable is celebrated for its high bandwidth and long-distance transmission capabilities, making it an ideal choice for professionals in the broadcast AV industry. It's a breakout cable extension that allows you to extend the length of your existing fiber optic cables, facilitating connections between devices that are far apart.

The cable is compatible with a wide range of devices that use LEMO FUW and Singlemode Fiber Optic Cables. It's designed with a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end face contamination.

The cable is made with outside broadcast SMPTE 311M cable, rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications. It's interferometrically tested to GR-326-CORE end face standards, ensuring the highest quality and performance.

The opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable is further enhanced with lockable and waterproof metal caps, rubber guards, and an ergonomically designed cable strain relief for improved cable protection and water resistance in long-term use.

This product is not just a cable, it's a solution for indoor (studio) camera links, interconnecting AV Camera and CCU systems and accessories, and adapting Lemo to opticalCON SMPTE Patching Systems. It's also compatible with Telecast, JFS, and Nemal assemblies.

Experience the difference with the 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable, a product that combines durability, versatility, and high-quality performance for your professional needs.

Camplex 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-bandwidth 328' opticalCON DUO to LEMO FUW Singlemode Fiber Optic Cable
  • Engineered for rugged field deployment in professional broadcast AV applications
  • Features robust LEMO FUW interface for reliable, industry-standard connections
  • Equipped with mechanical shutter system to protect against end face contamination
  • Interferometrically tested to GR-326-CORE standards for low loss and high performance
  • Waterproof, lockable metal caps and rubber guards for enhanced durability and protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure stable streaming with this 328' SMPTE 311M fiber optic cable.
  • Experience wide compatibility using opticalCON DUO to LEMO FUW connectors.
  • Enjoy high-resolution video with low latency via 9um singlemode fiber.
  • This video capture cable supports good audio and data with 24 AWG conductors.
  • Benefit from easy setup with Neutrik opticalCon DUO connectors.
  • Rely on durable video transfer, tested to >1000 cycles for a long lifetime.

What's in the box:

  • Camplex 328' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
