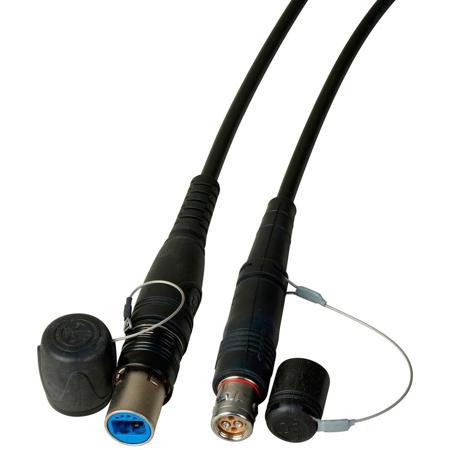

Camplex 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2FUW0656 MFR: HF-OC2FUW-0656
Earn VIP Reward Points

Key Features

  • Experience stable connection with our SMPTE 311M fiber optic cable for broadcast-quality video.
  • Ensure high-resolution video with low latency using our 9um singlemode fiber optic cable.
  • Enjoy good compatibility; this opticalCON DUO to LEMO FUW cable works seamlessly!
  • This affordable price gets you a 656' Camplex cable, tested to withstand >1000 cycles.
  • Easy setup with Neutrik opticalCon DUO; get your high-quality video broadcast running now.
  • Rated CMR, this reliable video cable offers a stable connection, UL1666 flame tested.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    656' / 199.95m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    FUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

You can rely on the 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable for a durable, high-quality, and reliable connection between your devices. This versatile and flexible cable is expertly crafted by Camplex, a reputable brand known for its superior products.

The cable features a LEMO FUW interface, a standard in the industry recognized for its robustness and dependability. This breakout cable extension is designed to extend the reach of your fiber optic cables, ensuring a secure and reliable connection every time.

The opticalCON DUO NO2SX to LEMO FUW 304M Single-mode Hybrid Outside Broadcast Cables are factory terminated and machine polished in a state-of-the-art Fiber Optic Lab. These assemblies are constructed with outside broadcast SMPTE 311M cable, specifically rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications.

Each assembly undergoes interferometric testing to GR-326-CORE end face standards, ensuring exceptionally low return loss and insertion loss. The opticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end face contamination.

The cable includes 2 Single-mode fiber UPC, 2 x AWG24, and 2 x AWG16 or (2x17AWG) stranded copper conductors, an overall copper braided shield, and a stainless steel strength member. Please note, this cable is not compatible with the SMPTE 304M standard.

Designed for indoor (studio) camera links, the cable meets specific conditions according to IEC 60664-1, including pollution degree 1, overvoltage category 1, and rated voltage. The cable assembly uses the Neutrik opticalCON ADVANCED system, which enhances the original opticalCON by adding lockable and waterproof metal caps and rubber guards, making it ideal for outdoor applications.

The cable also features an ergonomic strain relief that improves cable protection and water resistance for long-term use. The color-coding options allow for custom-built coding.

Applications for this cable include interconnecting AV Camera and CCU systems and accessories, deployable, staging, and harsh environments, adapting Lemo to opticalCON SMPTE Patching Systems. It is compatible with Telecast, JFS, and Nemal assemblies.

With the 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable, you get a rugged, all-metal housing and heavy-duty cable retention, excellent dust and dirt protection due to an automatic sealing shutter with a silicone gasket, and a reliable push-pull locking mechanism. Cleaning is easy and requires no tools.

Camplex 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-quality 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable for reliable connections
  • Durable and versatile, designed for both indoor studio and rugged outdoor broadcast applications
  • Features LEMO FUW interface, a standard in the industry known for robustness and dependability
  • Enhanced with Neutrik opticalCON ADVANCED system for added durability and waterproofing
  • Includes ergonomic strain relief for improved cable protection and water resistance
  • Easy-to-clean design with automatic sealing shutter for excellent dust and dirt protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience stable connection with our SMPTE 311M fiber optic cable for broadcast-quality video.
  • Ensure high-resolution video with low latency using our 9um singlemode fiber optic cable.
  • Enjoy good compatibility; this opticalCON DUO to LEMO FUW cable works seamlessly!
  • This affordable price gets you a 656' Camplex cable, tested to withstand >1000 cycles.
  • Easy setup with Neutrik opticalCon DUO; get your high-quality video broadcast running now.
  • Rated CMR, this reliable video cable offers a stable connection, UL1666 flame tested.

What's in the box:

  • Camplex 656' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
