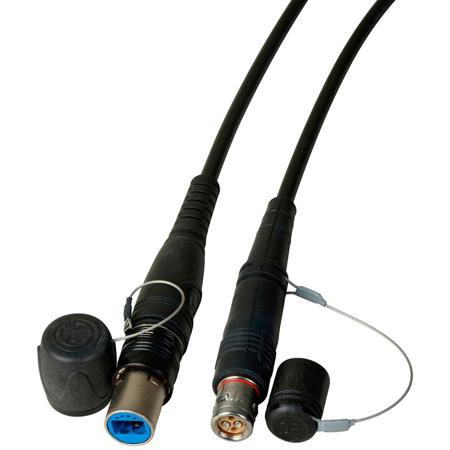

Camplex 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

SKU: CPOC2FUW1000 MFR: HF-OC2FUW-1000
Earn VIP Reward Points

Key Features

  • Ensure stable connection with this 1000' SMPTE 311M fiber optic cable.
  • Enjoy low latency with Neutrik opticalCON DUO connectors for video capture.
  • Experience high resolution video with 9um singlemode fiber optic cable.
  • Benefit from good compatibility using LEMO FUW connectors for video needs.
  • This affordable price cable supports easy setup for all your video projects.
  • Rely on our durable cable, flame tested, for stable connection in any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Specifications

  • Length

    1000' / 304.80m

  • Cable Type

    OB SMPTE 311M, Polyurethane jacket, 9.2 mm diameter
    Aramid Yarn and 302 stainless steel strength members

  • Connector 1

    Neutrik opticalCon DUO NO2SX, nickel finish

  • Connector 2

    FUW LEMO, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    > 1000 cycles

  • Insertion / Withdrawal Force

    < 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9um singlemode fiber

  • Cable Loss

    < 0.45 dB/km at 1310 / 1550 nm

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Data Conductors

    24 AWG

  • Auxiliary Conductors

    16 AWG or 17 AWG

  • Rated / Tested

    CMR rated, UL1666 Flame Tested

  • Operating Temperature

    -13 to 167 deg. F / -25 to 75 deg. C

About Camplex 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable

Under the umbrella of high-performance electronics, the 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable stands out as a durable, reliable, and versatile choice. This high-quality cable is designed to seamlessly connect devices that utilize LEMO FUW and Singlemode Fiber Optic Cables, making it an essential tool in the film and television industry, as well as any field requiring high-speed data transmission.

Crafted by the reputable brand, Camplex, this cable is compatible with the industry-standard SMPTE 311 Singlemode Fiber Optic Cable, ensuring its adaptability across a wide range of equipment and systems. Its robust construction is designed for ruggedized applications and field deployment, making it ideal for commercial and professional broadcast AV applications.

The cable features a ruggedized connector body, common LC contacts, and a mechanical shutter system, providing exceptional protection against end face contamination. It is assembled using the Neutrik opticalCON ADVANCED system, which enhances its robustness by adding lockable and waterproof metal caps, as well as rubber guards, making it suitable for outdoor applications.

The ergonomically designed cable strain relief enhances the cable's protection and water resistance for long-term use. The cable connector features a rugged all-metal housing and heavy-duty cable retention, ensuring excellent dust and dirt protection due to an automatic sealing shutter with a silicone gasket. The reliable push-pull locking mechanism ensures secure connections, and the cable is easy to clean without the need for additional tools.

This fiber optic cable is ideal for interconnecting AV Camera and CCU systems and accessories, and is adaptable for Lemo to opticalCON SMPTE Patching Systems. It is compatible with Telecast, JFS, and Nemal assemblies, making it a versatile choice for deployable, staging, and harsh environments. Please note, this cable is not compatible with the SMPTE 304M standard.

Camplex 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable Features

  • High-performance 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable
  • Compatible with industry-standard SMPTE 311 Singlemode Fiber Optic Cable
  • Robust construction for ruggedized applications and field deployment
  • Features lockable and waterproof metal caps for enhanced durability
  • Ergonomic cable strain relief for improved protection and water resistance
  • Easy to clean with a reliable push-pull locking mechanism for secure connections

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure stable connection with this 1000' SMPTE 311M fiber optic cable.
  • Enjoy low latency with Neutrik opticalCON DUO connectors for video capture.
  • Experience high resolution video with 9um singlemode fiber optic cable.
  • Benefit from good compatibility using LEMO FUW connectors for video needs.
  • This affordable price cable supports easy setup for all your video projects.
  • Rely on our durable cable, flame tested, for stable connection in any environment.

What's in the box:

  • Camplex 1000' opticalCON DUO to LEMO FUW SMPTE 311 Singlemode Fiber Optic Cable
  • Camplex 1 Year Limited Warranty
